2.4 Converting the Pedestal Chassis to Rack Mount Chassis
2.4.1 Removing the Front Panel Module

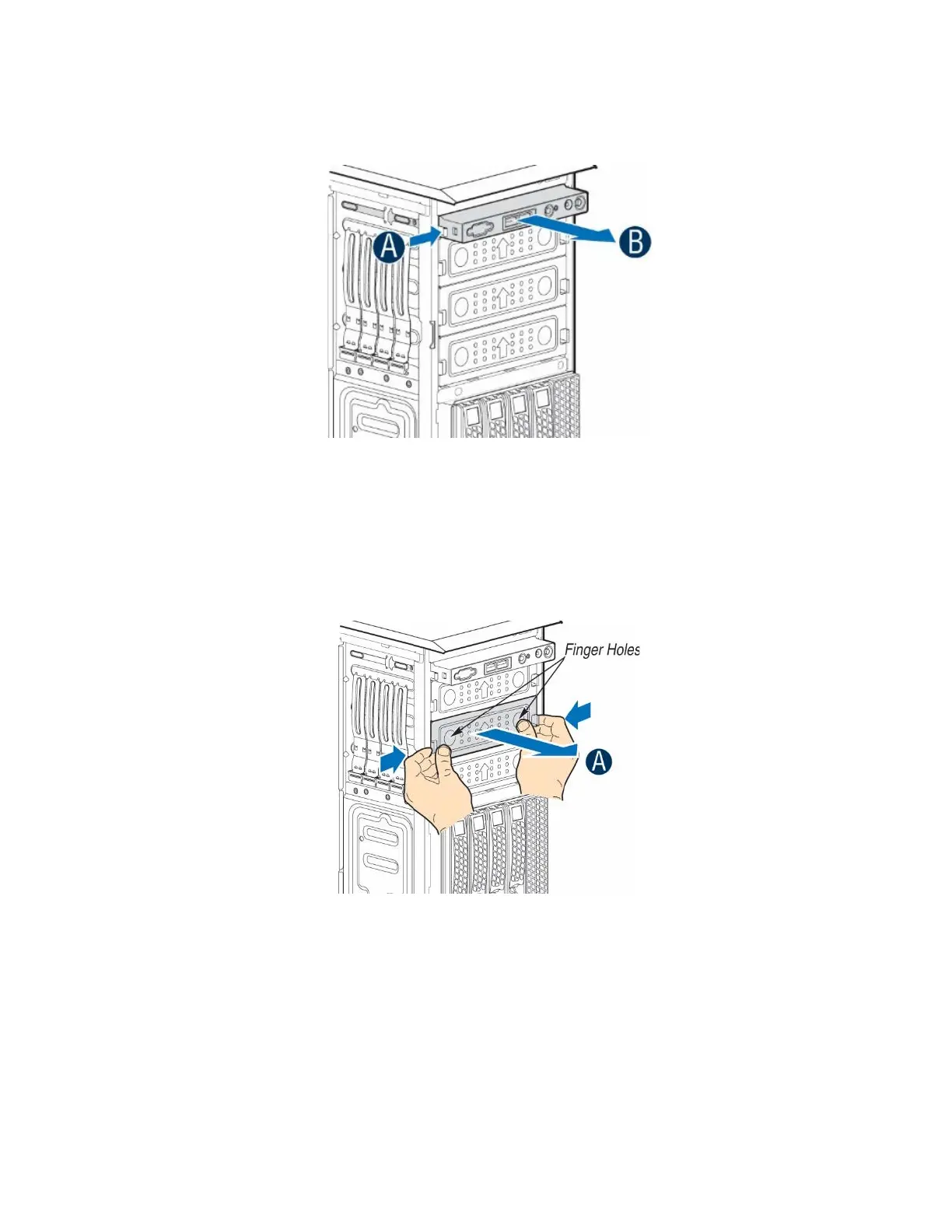

Figure 100. Removing the Front Panel Module
1. Press the clip (see letter A).
2. Pull the front panel module outside of the chassis (see letter B).
2.4.2 Removing the EMI Shields for 5.25” Drive Slots
Figure 101. Removing the EMI Shields for 5.25” Drive Slots
1. Press the latches on the sides.
2. Pull the filler outside of the chassis (see letter A).
