Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
6
1.2.2 Air Duct Removal / Installation
Always operate the server chassis with the air duct in place. The air duct is required for proper airflow within
the server chassis.
1.2.2.1 Air Duct Removal
Figure 5. Installing the Air Duct 4/4

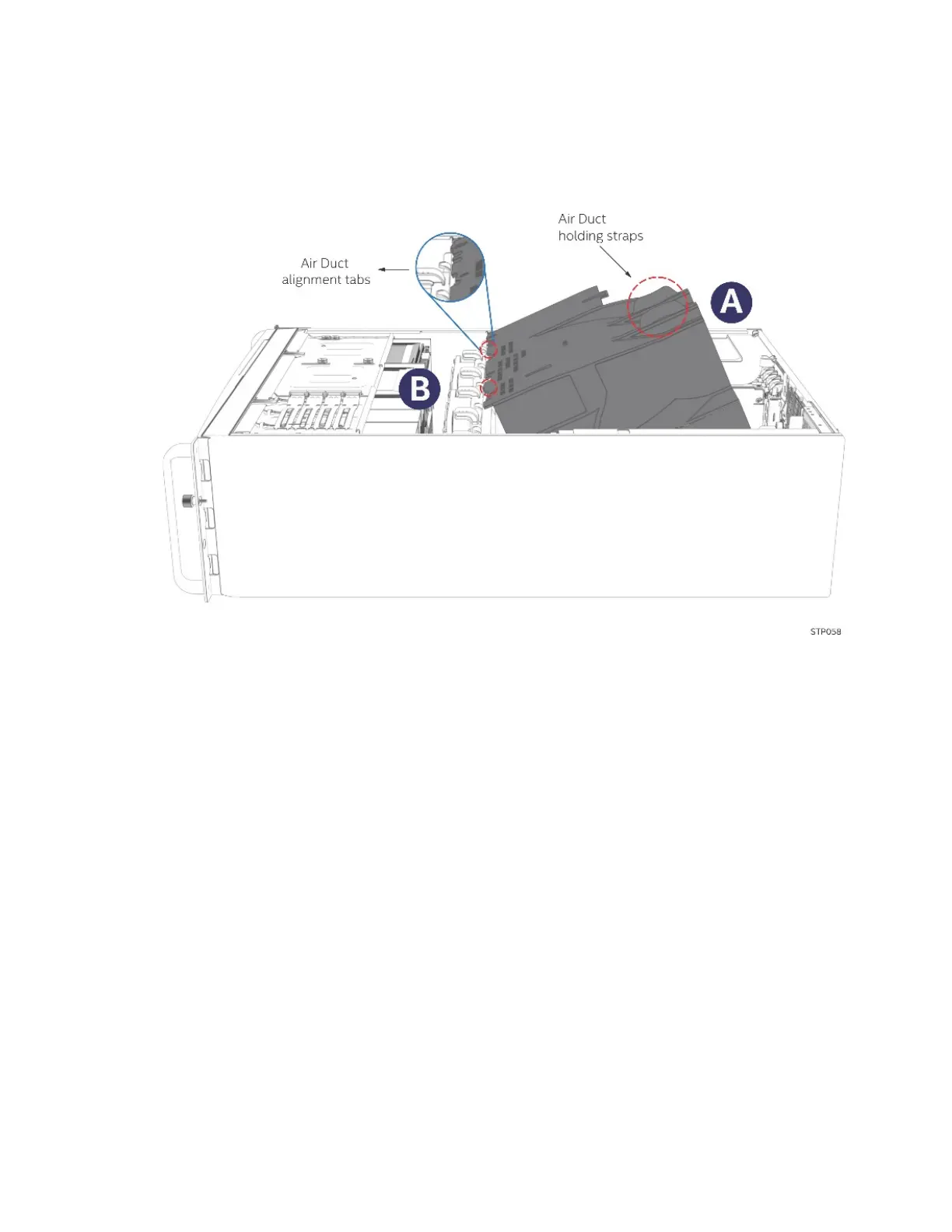

1. Lift the air duct holding it by the holding straps (see letter A) until the tabs on the front edge of
the air duct are free from the chassis alignment holes (see letter B).
