Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
140
Appendix B: System Cabling Routing Diagrams
All cables in the system that need to be routed from front to back, should be routed using the cable channels
along each chassis sidewall as shown in the illustrations on this section. When routing cables from front to
back, avoid routing ANY cables through the center of the system or in the area between the system fans and
the DIMM slots. Cable connection instructions provided in this section are presented in the recommended
order in which they should be installed. Make sure you are following the appropriate cable routing according
to your board family.
• For P4304XXMFEN2, route the power cables for HDD/ODD bays through the opening on the
system fan bracket, close to the chassis side wall; for P4304XXMUXX, route power cables for
HDD/ODD bays under the 5
th
system fan.
• Route the front panel cable, SAS/SATA data cable(s), USB cable (to the front panel); route the
HSBP_I²C (optional) between the first system fan and the chassis sidewall.
• You must manage the system main power cable and CPU power cables under the notch of the air
duct before you can install the air duct properly.
A
CPU1/2 power cable
B
Main power cable
C
SSD/HDD drive bay power
cable (SAS/SATA)
D
ODD drive bay power
cable
E
Front panel and USB
cable
F
ODD data cable
G
SSD/HDD drive bay data
cable (SATA)
H
FAN_1 cable (PCIe* fan)
I
FAN_2 cable (CPU fan)

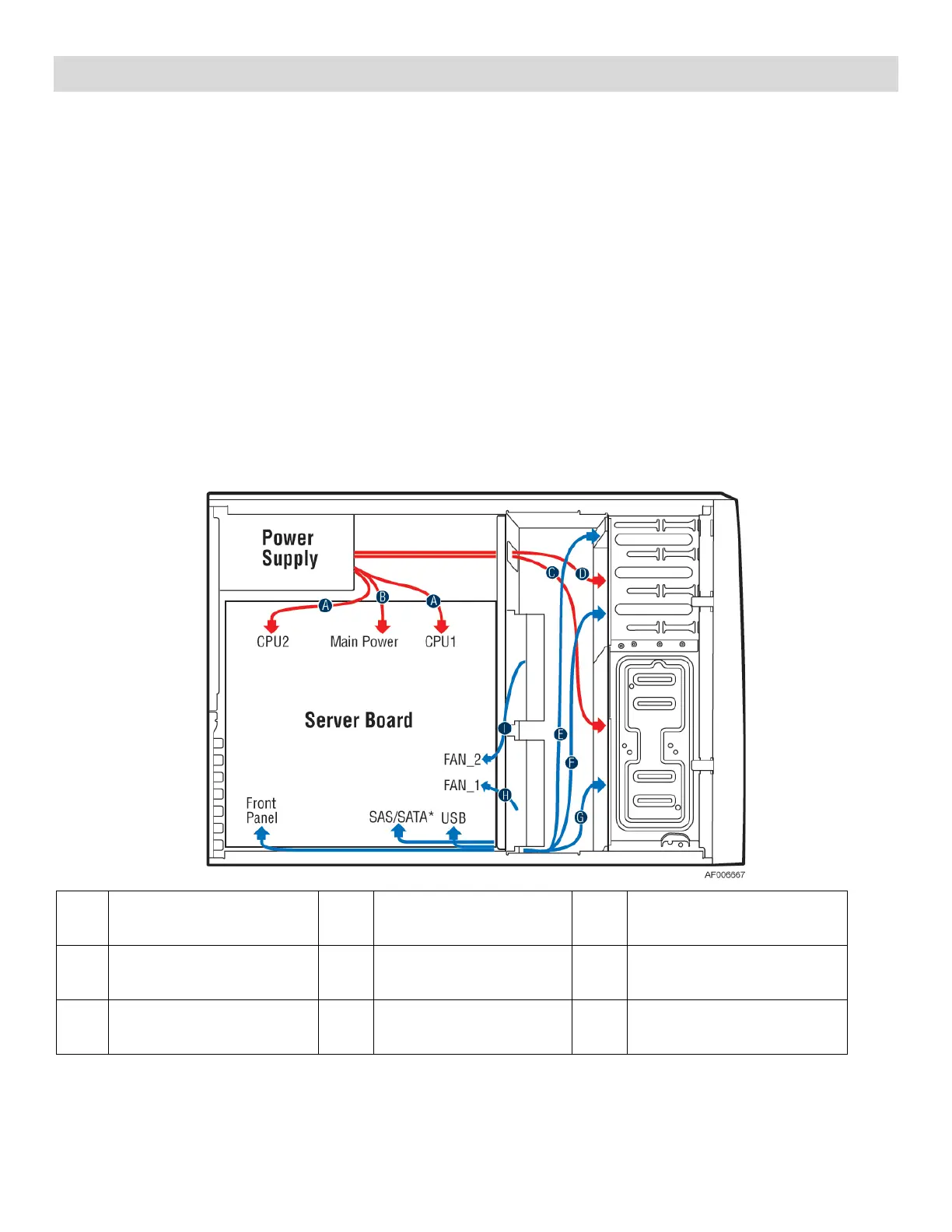

Figure 157. P4304XXMFEN2 Cable Routing - S2600CW Server Board Family
