Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
20
2.1.1.2 Processor Installation
Caution:
The processor must be appropriate: If you install a processor that is inappropriate for your server, you may
damage the server board. For a web link to the list of compatible processor(s), see “Additional Information
and Software”.
ESD and Handling Processors: Reduce the risk of electrostatic discharge (ESD) damage to the processor by
doing the following:
(1) Touching the metal chassis before touching the processor or server board. Keep part of your body in
contact with the metal chassis to dissipate the static charge while handling the processor.
(2) Avoiding moving around unnecessarily.
1. Unlatch the CPU Load Plate.

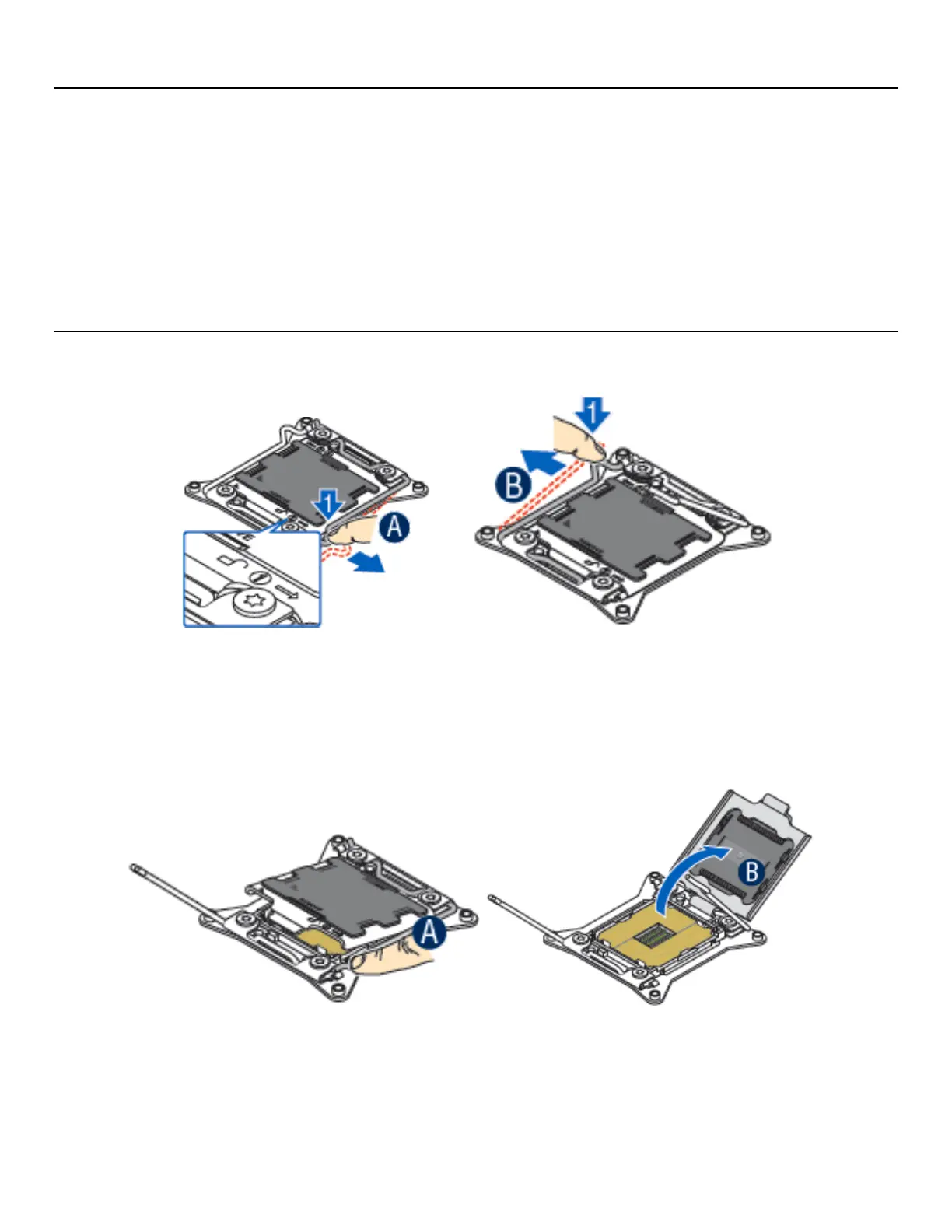

Figure 22. Processor Installation – Open the Socket Lever
2. Push the lever handle labeled “OPEN 1
st
” (see letter A) down and away from the CPU socket.
Rotate the lever handle up. Repeat the steps for the second lever handle (see letter B).
3. Lift open the load plate.
Figure 23. Processor Installation – Open the Load Plate
4. Rotate the right lever handle down until it releases the load plate (see letter A). While holding
down the lever handle, with your other hand, lift open the load plate (see letter B).
5. Install the processor.
