Intel P4304XXMFEN2 User Manual

Intel
®
Server Chassis P4304XXMFEN2/P4304XXMUXX Product Family System Integration and Service Guide
154

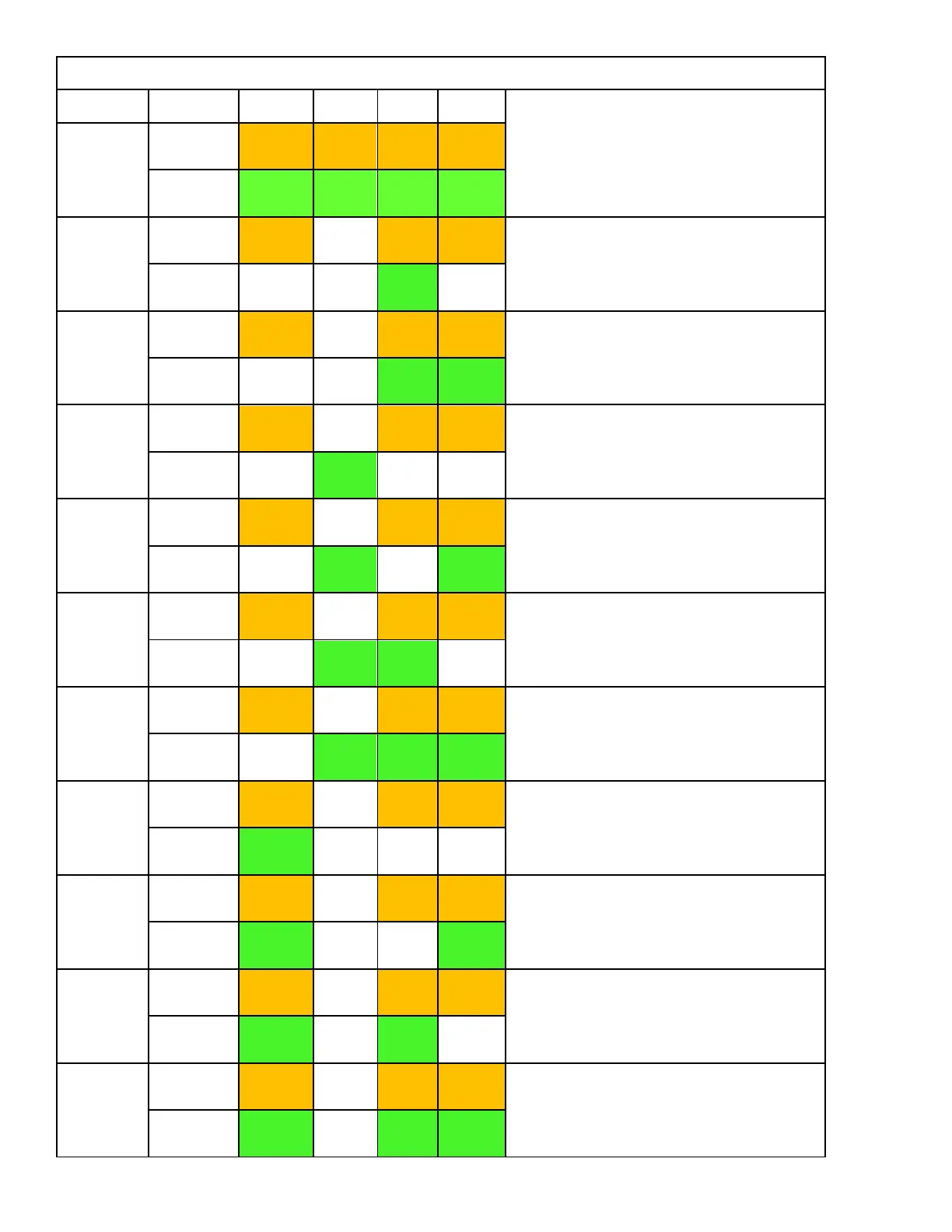

Diagnostic LED Decoder
LED #
LED 3 LED 2 LED 1 LED 0
Description
Checkpoint
Upper
Nibble
8h
(MSB)
4h 2h
1h
(LSB)
Lower
Nibble
8h
(MSB)
4h 2h
1h
(LSB)
B2h
Upper
Nibble
ON off ON ON
Gather remaining SPD data.
Lower
Nibble
off off ON off
B3h
Upper
Nibble
ON off ON ON
Program registers on the memory
controller level.
Lower
Nibble
off off ON ON
B4h
Upper
Nibble
ON off ON ON
Evaluate RAS modes and save rank
information.
Lower
Nibble
off ON off off
B5h
Upper
Nibble
ON off ON ON
Program registers on the channel level.
Lower
Nibble
off ON off ON
B6h
Upper
Nibble
ON off ON ON
Perform the JEDEC defined initialization
sequence.
Lower
Nibble
off ON ON off
B7h
Upper
Nibble
ON off ON ON
Train DDR4 ranks.
Lower
Nibble
off ON ON ON
B8h
Upper
Nibble
ON off ON ON
Initialize CLTT/OLTT.
Lower
Nibble
ON off off off
B9h
Upper
Nibble
ON off ON ON
Hardware memory test and initialization.
Lower
Nibble
ON off off ON
BAh
Upper
Nibble
ON off ON ON
Execute software memory initialization.
Lower
Nibble
ON off ON off
BBh
Upper
Nibble
ON off ON ON
Program memory map and interleaving.
Lower
Nibble
ON off ON ON
