2 Names and Functions of Control Panel Parts
and Menu Composition
2.1 Functions of the Front Control Panel Keys
Normal operations with respect to this radar equipment may be undertaken from the front
panel of the display. Moreover, by using functions that are defined by the menu, the op-
erator may make full use of the functions of this equipment.
While the operations are simple, in order to display the necessary information on the
cathode-ray tube, it is important that the operator has full understanding of the functions of
the various operations.

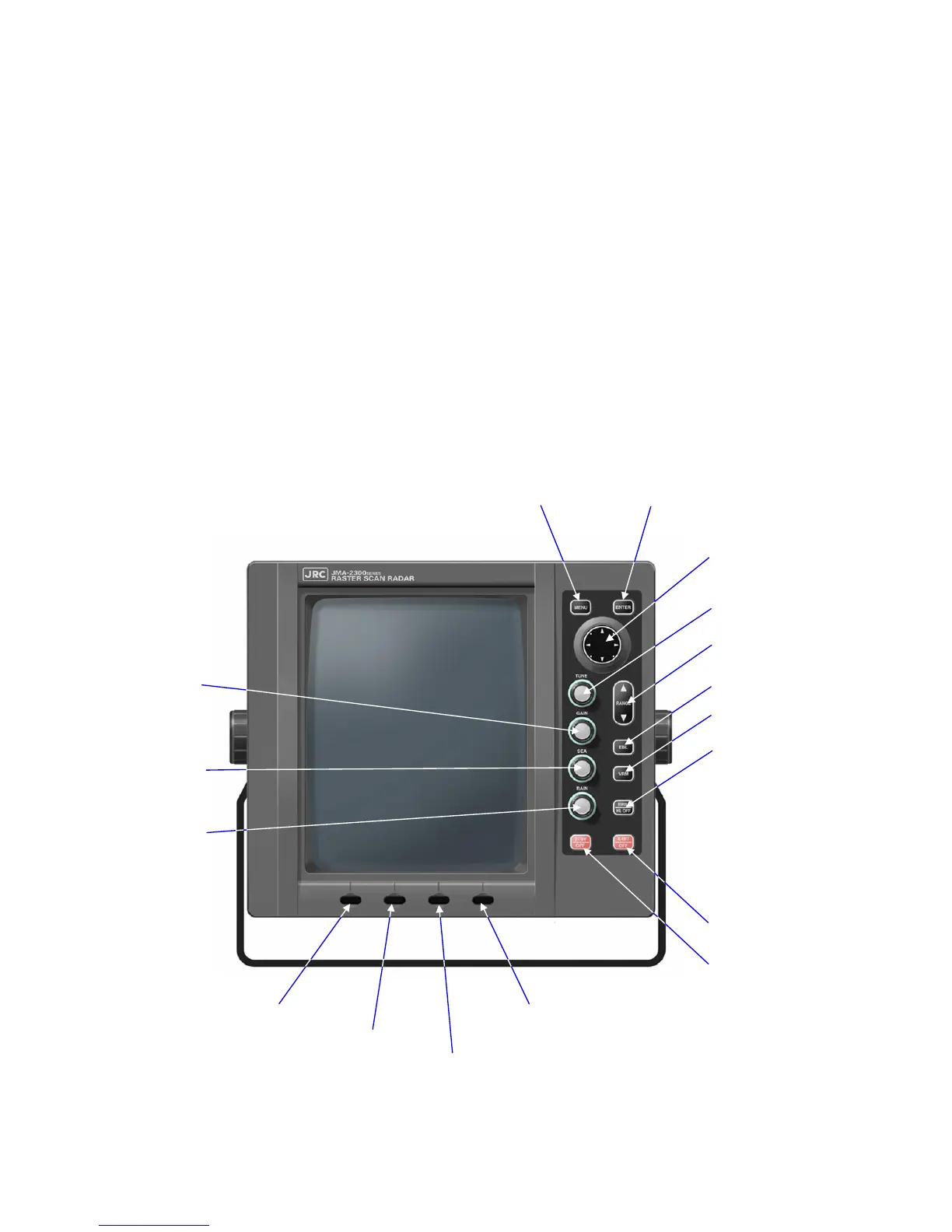

2.1.1 Functions of the front control panel keys
Sea surface
clutter sup-
pression
Rain and snow
clutter sup-
pression
Open a menu
Various settings
Tune adjustment
Cross key
Range
EBL
VRM
Brilliance/
Ship’s head line off
Transmit/Off
Stand-by/Off
Soft key 1
Soft key 4
Soft key 2
Soft key 3
Sensitivit
To Next Page
