2.3.2 Functions within the menu
When using functions marked with [
＊
], connectivity to an external navigation
system is required.

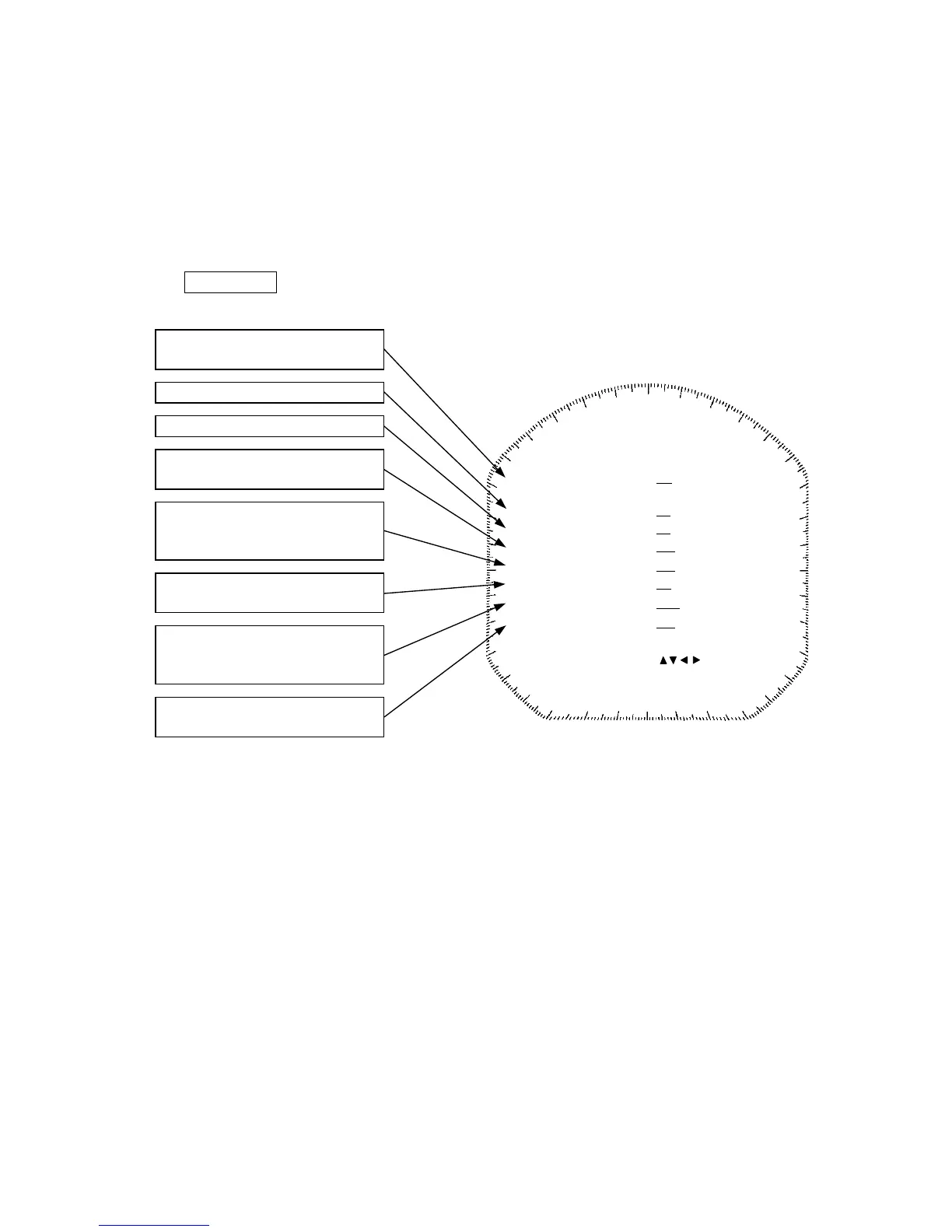

FUNCTION
Select the operating function
of EBL1 and VRM1.
Select use of EBL2.
Select use of VRM2.
Display any random portion o
f
the PPI image enlarged to
twice the original image.
Select read for the azimuth
value of EBL.
＊ Select "relative" or "true"
motion display.
＊ Select the method of dis-
playing the bearing of the
PPI screen.
Select the correlative process-
ing of the radar echo.
FUNCTION
EBL1/EBL2
EBL2
VRM2
EBL READOUT
ZOOM
TM/RM
HDG MODE
PROCESS
FIX FLOAT
PLINE1 PLINE2
NO YES
NO YES
REL TRUE,MAG
OFF SET
RM TM
H-UP N-UP C-UP
OFF PR1 PR2
SELECT W/CROSS KEY’ ( )
PRESS ENT TO SET
PRESS MUNU TO RETURN
