3.4 Other Convenient Functions

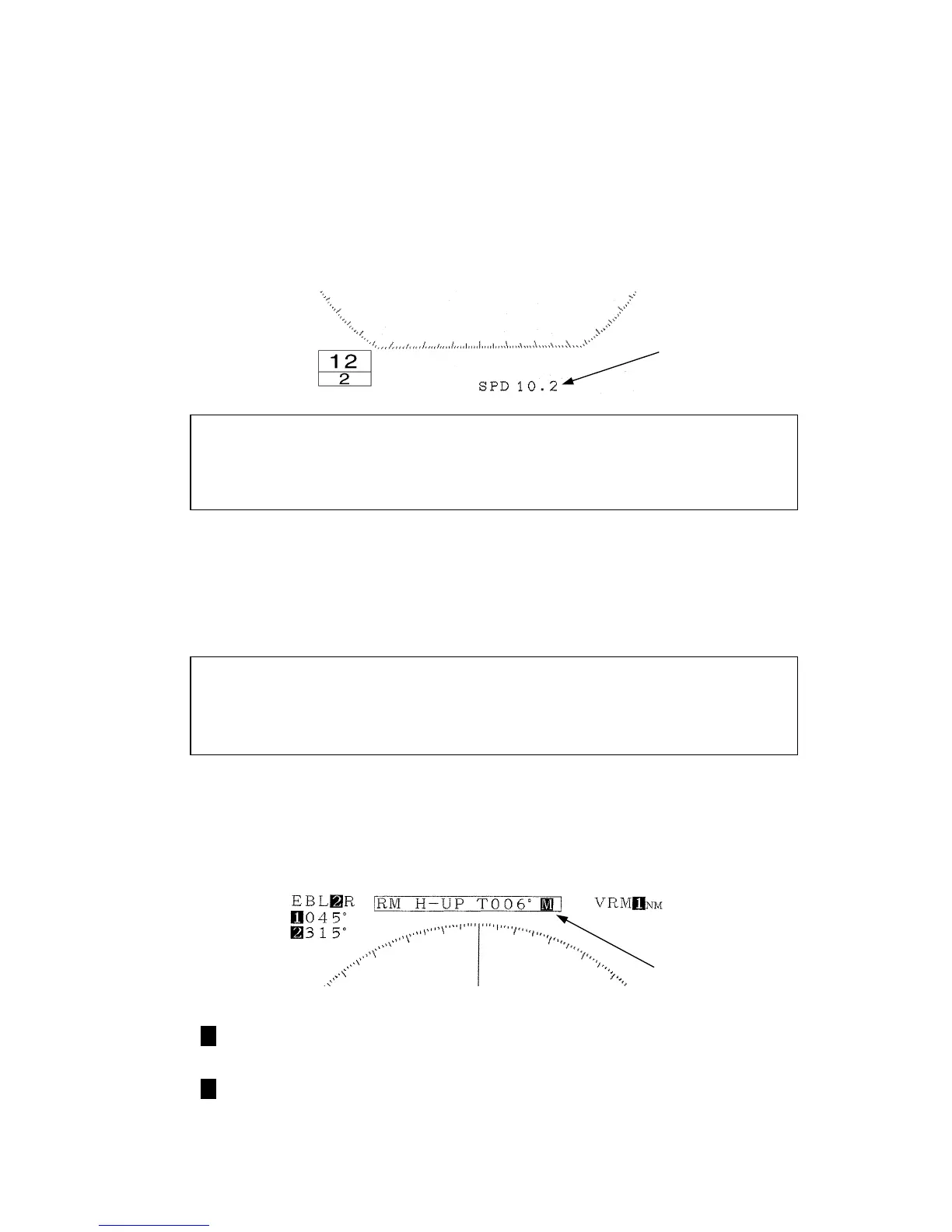

3.4.1 Displaying the ship's speed on the display unit
When speed information is input to the display unit, the ship's speed is automatically
displayed.
 In order to use this function, it is necessary to input ship’s speed information from a
navigation device.
Please refer to "3.6.2 Obtaining information on speed".
3.4.2 Displaying the ship's heading on the display unit
When ship’s heading information is input to the display unit, the ship's heading is
automatically displayed.
 In order to use this function, it is necessary to input ship’s bearing information from a
navigation device.
Please refer to "3.6.1 Obtaining information on bearing".
This radar equipment is capable of inputting bearing information from the following
two input connectors at the back of the display unit.
• CMPS+ and CMPS- terminals of the EXT1(J3) connector
• NAVRX and NAVCOM terminals of the GPS(J4) connector.
Ｍ
ＭＭ
Ｍ ： Bearing information input from CMPS+ and CMPS- terminals of
the EXT1(J3) connector
Ｌ
ＬＬ
Ｌ ： Bearing information input from NAVRX and NAVCOM terminals of
the GPS(J4) connector
Ship's speed
Input terminal display
