JRC JMA-2343 User Manual

196

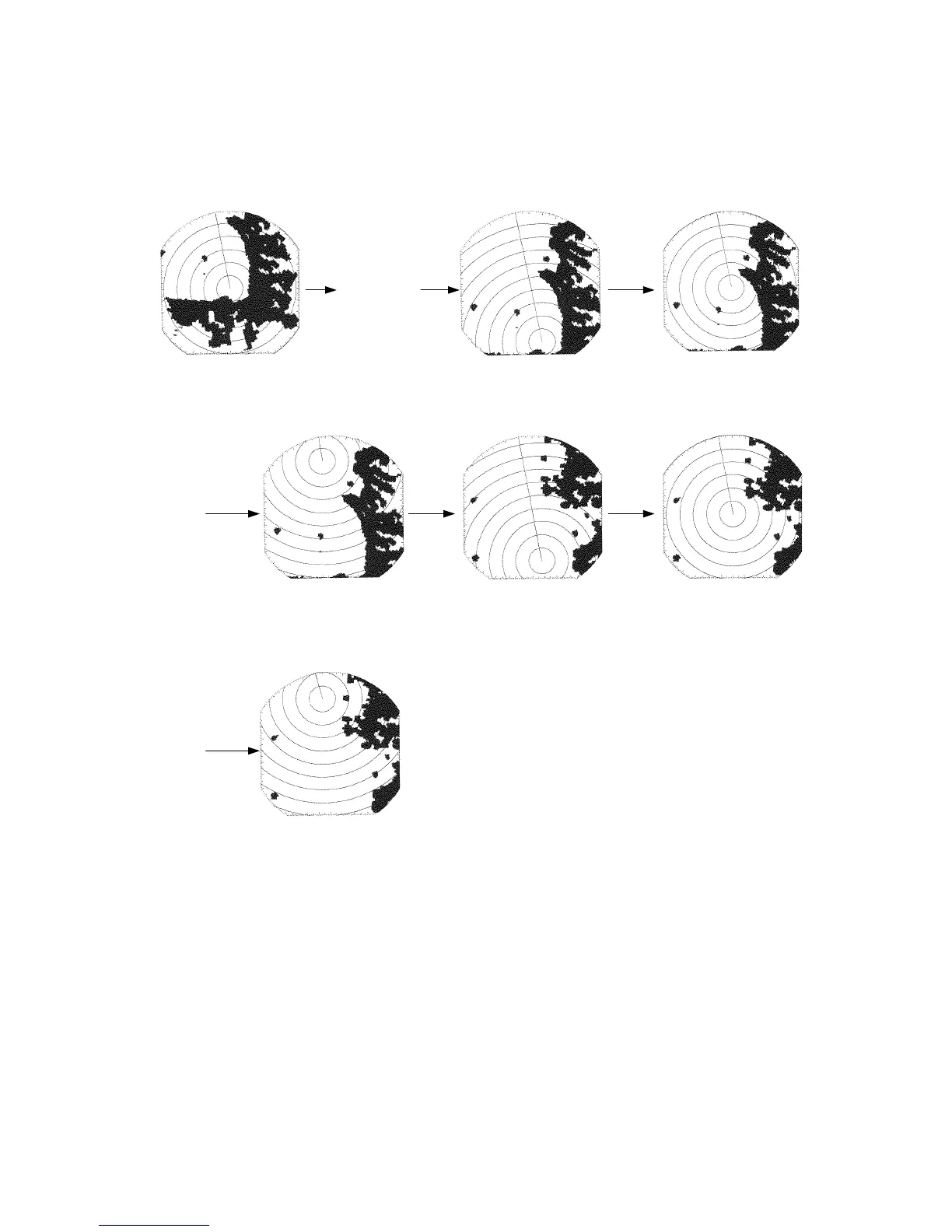

• The following is an example of switching from relative motion display (RM) to
true motion display (TM)
The center of the PPI
moves to a location within
66% of the radius.
The center of the PPI
moves together with the
movement of the ship.
When the center of the PPI moves to a lo-
cation within 66% of the radius, the cente
r
of the PPI automatically resumes move-
ment to a location 66% of the radius in the
diagonal direction.
Select "TM"
Relative motion display
