Keysight Technologies B1505A Configuration Guide

4-6 Keysight B1505A Configuration and Connection Guide
N1272A and N1273A Connection Guide
Input Connection
CAUTION The GNDU can sink current of up to 4.2 A.
Use 16493L GNDU cable to connect the GNDU to an adapter, a test fixture, or a connector
plate.
Do not use normal triaxial cable (16494A) because the maximum current rating of the
cable is 1 A.
The following figures show two connection examples with using the N1272A selector and
the N1273A fixture. For the color-codes of cables and connectors in the figures, see Figure
7-1 on page 2.
Figure 4-4 shows the connection example effective for minimizing the connection changes
between the I-V measurement using the N1259A fixture and the capacitance measurement
using the N1273A fixture.
Figure 4-5 shows the connection example effective for minimizing the connection changes
between the I-V measurement using the N1265A fixture and the capacitance measurement
using the N1273A fixture.
WARNING If the N1273A is used with the N1259A/N1265A fixture, you need to change the
connection of the interlock and GNDU cables each time you change the fixture.

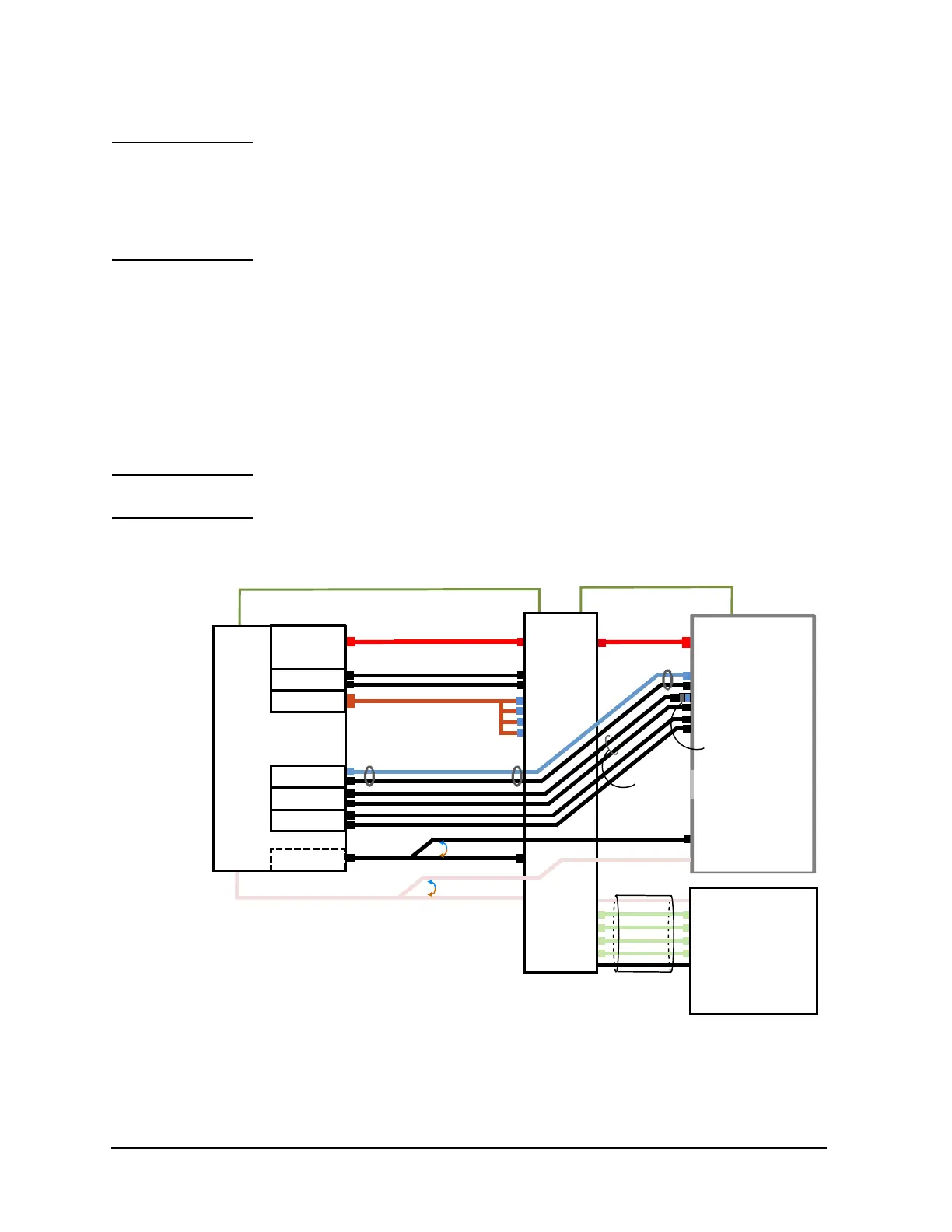

Figure 4-4 Connection Example using N1272A, N1259A, and N1273A
HV SMU
GNDU
HCSMU 1
HCSMU 2
Digital I/O
SMU 1
Interlock
N1259A-300
For Capacitance
Measurement
For I-V
Measurement
B1507-61720
(Included in the
N1273A)
HVSMU
MPSMU
MFCMU
HCSMU
GNDU
F
S
F
S
B1505A
16493T (Included in the HVSMU)
16494A (Included in the MPSMU)
16493L (Included in the B1505A)
16493G Digital I/O cable (Included in the N1259A-300)
16493J (Included in the B1505A)
N1272A
GNDU
HVSMU
F
S
MPSMU
16493S (Included in the HCSMU)
MFCMU
Hcur
Hpot
Lpot
Lcur
HVSMU
Base/Gate
Emier/Source
Collector/Drain
AC/DC Guard
Chassis GND
Interlock
Interlock
Connect for
I-V Measurement
16493T (Included
in the N1272A)
Digital I/O
Input Output
B1506-61780 Digital I/O cable (Included in the N1272A)
N1300A-001
16494A (Included in the MPSMU)
MPSMU
F
S
MCSMU
F
S
Base/Gate
Emier/Source
Collector/Drain
AC/DC Guard
Chassis GND
Interlock
N1273A
16494A (Included
in the MCSMU)
N1254A-104
TRX(J)-BNC(P) adapter
