Keysight B1505A Configuration and Connection Guide 7-31
Connection and Ordering Examples
Configuration Examples for Lateral Device Measurement with Wafer Prober

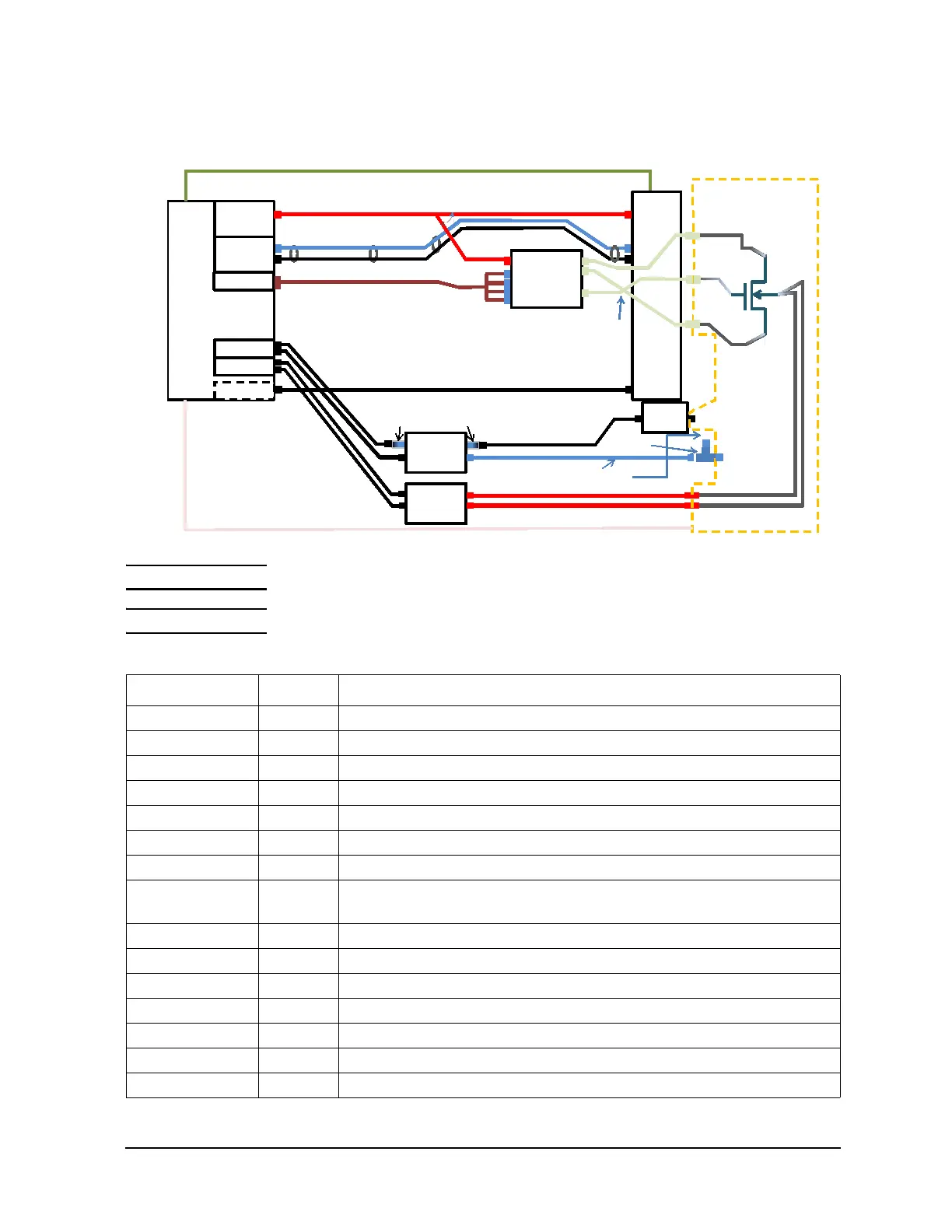

Figure 7-16 Connection example for CV measurement
NOTE The connection diagram in Figure 7-16 shows Cds measurement.
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-15 Required equipment, accessories, and cables
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1511B-FG 1 Medium Power Source/Monitor Unit module (100 V/ 100 mA)
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
B1520A-FG 1 Multi Frequency Capacitance Measurement Unit Module
16493T 1 High Voltage Source Monitor Unit Cable
16493T-001 or
002
2 High Voltage Source Monitor Unit Cable (1.5 m)
16493U 1 High Current BNC Coaxial Cable
16493U-001 2 High Current BNC Coaxial Cable (1.5 m)
16494A 1 Triaxial Cable
16494A-003 1 Triaxial Cable (80 cm)
1250-2405 1 BNC-T Plug (m)-BNC (f)-BNC (f) adapter, 1ea
N1258A 1 Module Selector for B1505A
N1260A 1 High Voltage Bias-Tee
HVSMU
HCSMU
GNDU
MCSMU
B1505A
16493L (Included in B1505A )
N1258A
MPSMU
ProtecƟon
Adapter
N1261A-003
Chuck
D
G
S
HCSMU Non-
Kelvin adapter
16493S-011
HF
LF
R-Box
1kohm
N1262A-010
For Gate
For Drain
For Drain
16493G-001 Digital I/O cable (Included in N1258A)
N1254A-104 TRX(J) to BNC(P) adapter
F
S
F
S
F
S
HV SMU
HCSMU F
GNDU
16493J Interlock cable (Included in B1505A)
For Chuck
N1260A
Bias-T
AC-H
AC-L
AC-Guard
Hc
Hp
Lc
Lp
To change connecƟon
manually
MFCMU
N1300A (Included in the MFCMU)
N1254A-518
16493T (Included in the HVSMU)
16493S(Included in the HCSMU)
16494A (Included in the MCSMU)
16494A
(Included in the MPSMU)
16493T
16493U-001
1250-2405
HCSMU S
16494A-003
To Next Page
