3 Using E9300 E-Series Power Sensors
136 Keysight N1913/1914A User’s Guide

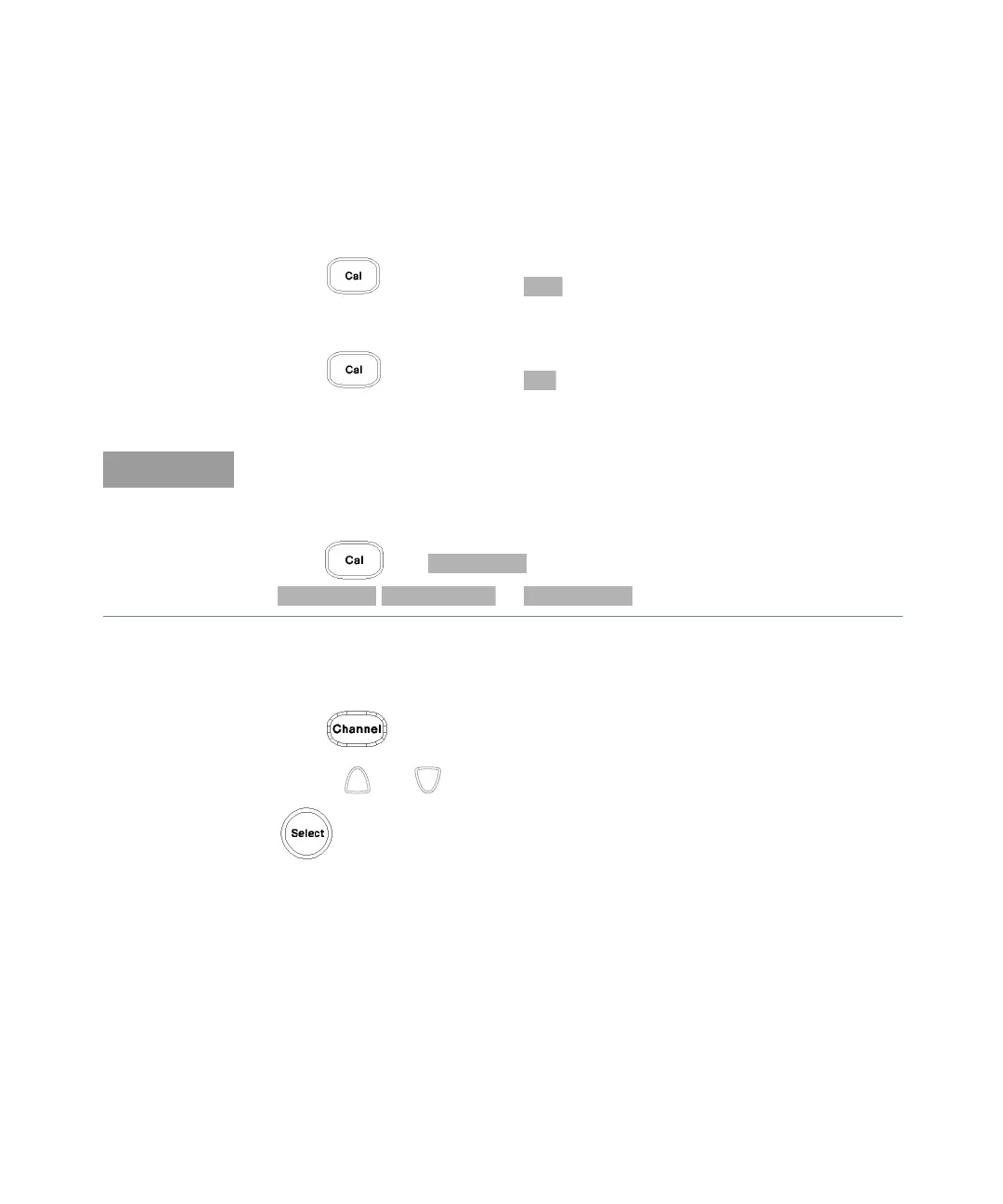

Procedure
1 Zero and calibrate the power meter/sensor combination.
2 Ensure the power sensor is disconnected from any signal source.
3 Press and the channel softkey. The Zeroing pop-up is displayed.
4 Connect the power sensor to the POWER REF output.
5 Press and the channel softkey to start the calibration routine. The
Calibrating pop-up is then displayed.
Now set the frequency of the signal you want to measure. The power meter
automatically selects the appropriate calibration factor.
6 Press . On dual channel meters select the required channel.
7 Use the and keys to highlight the Frequency value field and press
to display the Frequency pop-up. Use the numeric keypad to enter the
required value in the Frequency pop-up window.
You can reduce the steps required to carry out the zero and calibration
procedure as follows:
– Connect the power sensor to the POWER REF output.
– Press and . (For dual channel meters, press
, or as required).
