Using N8480 Series Power Sensors 6
Keysight N1913/1914A User’s Guide 189
3 Press to complete the selection of the calibration factor table.
4 Press again to display the measurement screen. Figure 6-9 shows which
offset table is selected.

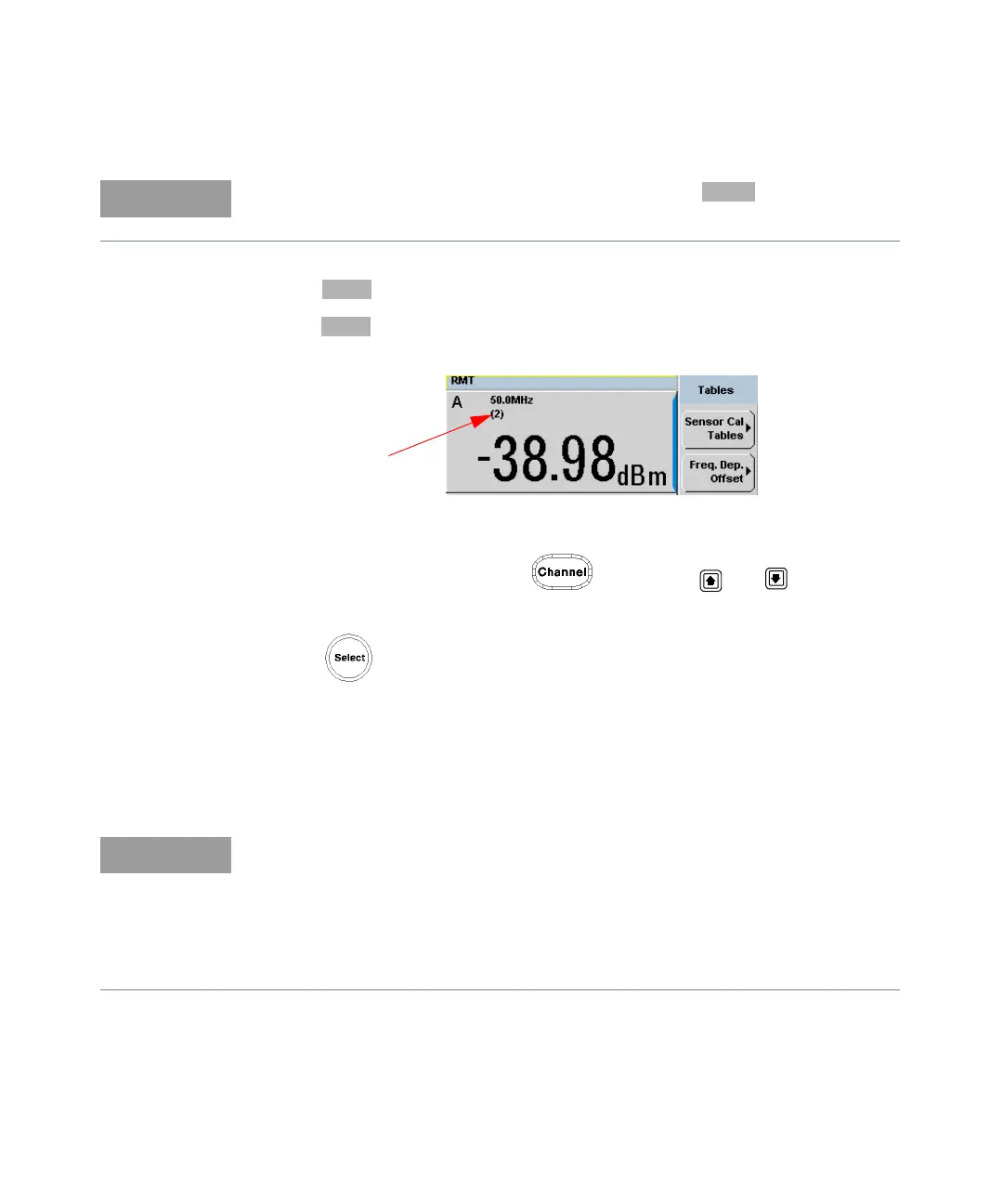

Figure 6-9 Frequency dependent offset indicator
5 To change the frequency, press and use the and keys to
highlight the Frequency field.
6 Press to display the Frequency pop-up window. Use the numeric
keypad to enter the required value in the Frequency pop-up window.
7 To confirm your choice, press the appropriate unit softkey.
8 Connect the power sensor to the signal to be measured.
9 The corrected measurement result is now displayed.
NOTE
When no data is contained in the highlighted table, the key is disabled
(grayed out).
Table
Done
Done
Sensor Table 2 Selected
NOTE
If the measurement frequency does not correspond directly to a frequency in the
sensor calibration table, the power meter calculates the calibration factor using
linear interpolation.
If you enter a frequency outside the frequency range defined in the sensor
calibration table, the power meter uses the highest or lowest frequency point in
the sensor calibration table to set the calibration factor.
