General Power Meter Functions 2
Keysight N1913/1914A User’s Guide 99

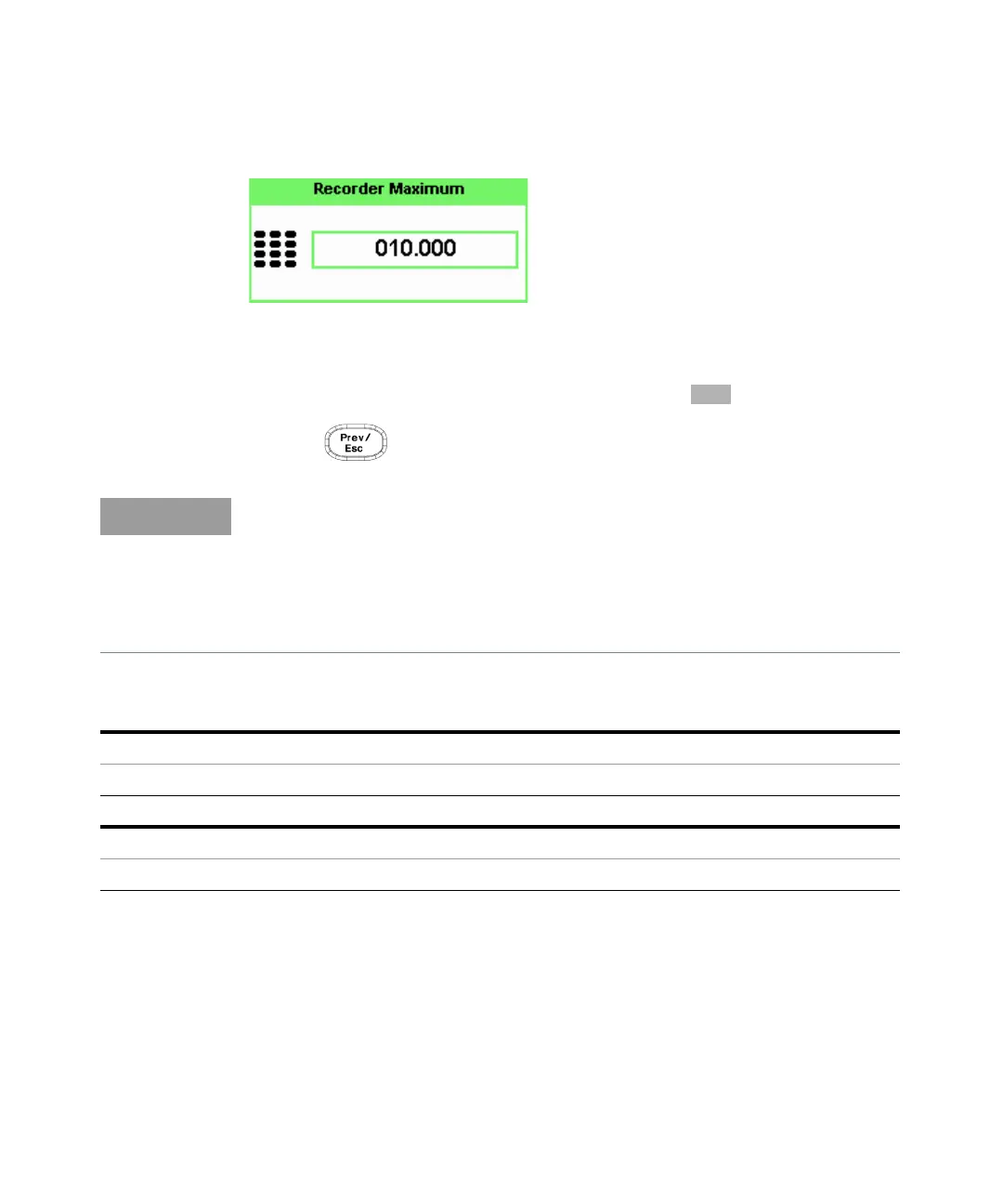

Figure 2-36 Recorder Maximum pop-up
11 Use the numeric keys to enter the power level you want to generate a 0 Vdc
output in the Recorder Minimum pop-up and press .
12 Press key to close the Measurement Setup screen.
Table 2-4 Ranges of recorder output setting
dBm
NOTE
The recorder output can be disabled and re-enabled by checking the Rec o/p:
setting field.
The highest power you are going to measure is used to determine the value
which you should set for the Recorder Output maximum setting. For example, if
you are measuring a power less than 1 mW and greater than 100 mW, then set
the recorder maximum value to 1 mW.
Log5040302010 0
Lin 100 W 10 W 1 W 100 mW 10 mW 1 mW
Log –10 –20 –30 –40 –50 –60
Lin 100 mW 10 mW 1 mW 100 nW 10 nW 1 nW
