Keysight N1913 - Figure 2-21 Trigger Setting Menu 1 of 2; Figure 2-22 Trigger Setting Menu 2 of 2

2 General Power Meter Functions
82 Keysight N1913/1914A User’s Guide

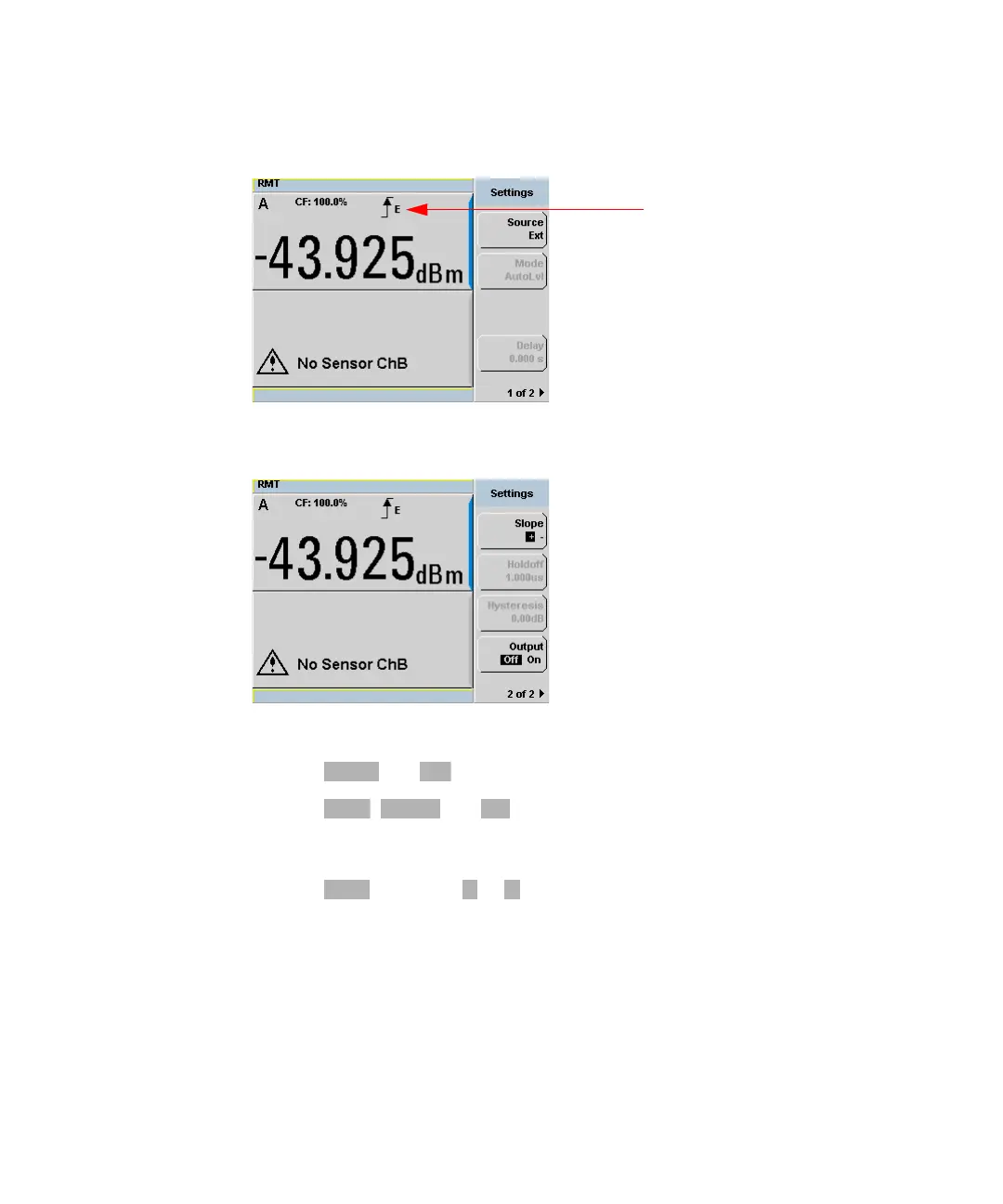

Figure 2-21 Trigger setting menu 1 of 2
Figure 2-22 Trigger setting menu 2 of 2
8 Press and will be automatically enabled.
9 Press , and to allow a TTL level high to be produced at the
rear panel TRIG OUT BNC port when the meter is triggered upon a completed
measurement.
10 Press and select or to set the trigger edge.
11 Set the trigger buffer size by sending SENSE:BUFFer:COUNt <buffer_size>
command to meter using remote interface.
External trigger source
Source
Ext
1 of 2
Output
On
Slope
+
–
