Using U8480 Series USB Thermocouple Sensors 8
Keysight N1913/1914A User’s Guide 213
Zeroing
The N1913/1914A EPM Series power meters support the ability to perform
zeroing on the U8480 USB thermocouple sensor via the front panel and SCPI.
However, the N1913/1914A EPM Series power meters do not support the
choosing of the zeroing type and auto zeroing for the U8480 USB thermocouple
sensor. When zeroing is triggered via the front panel or SCPI, the following
pop-up message shall appear:

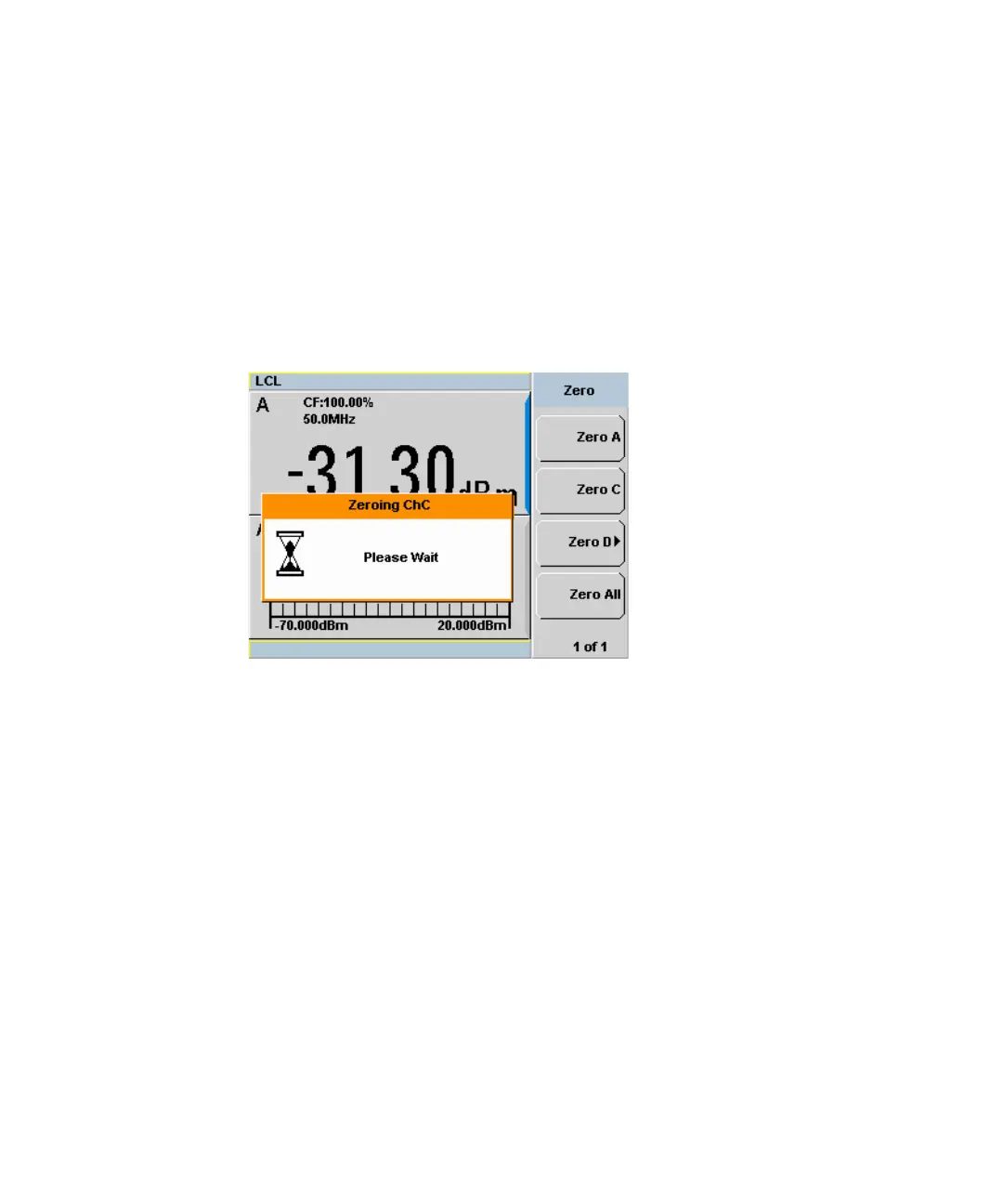

Figure 8-4 Zeroing pop-up message
Should an error occur during zeroing, the following pop-up message will appear:
