6 Using N8480 Series Power Sensors
178 Keysight N1913/1914A User’s Guide
Default Channel Setup
When a N8480 Series power sensor is connected, the following Channel Setup is
automatically configured. Presetting returns the channel to this configuration.

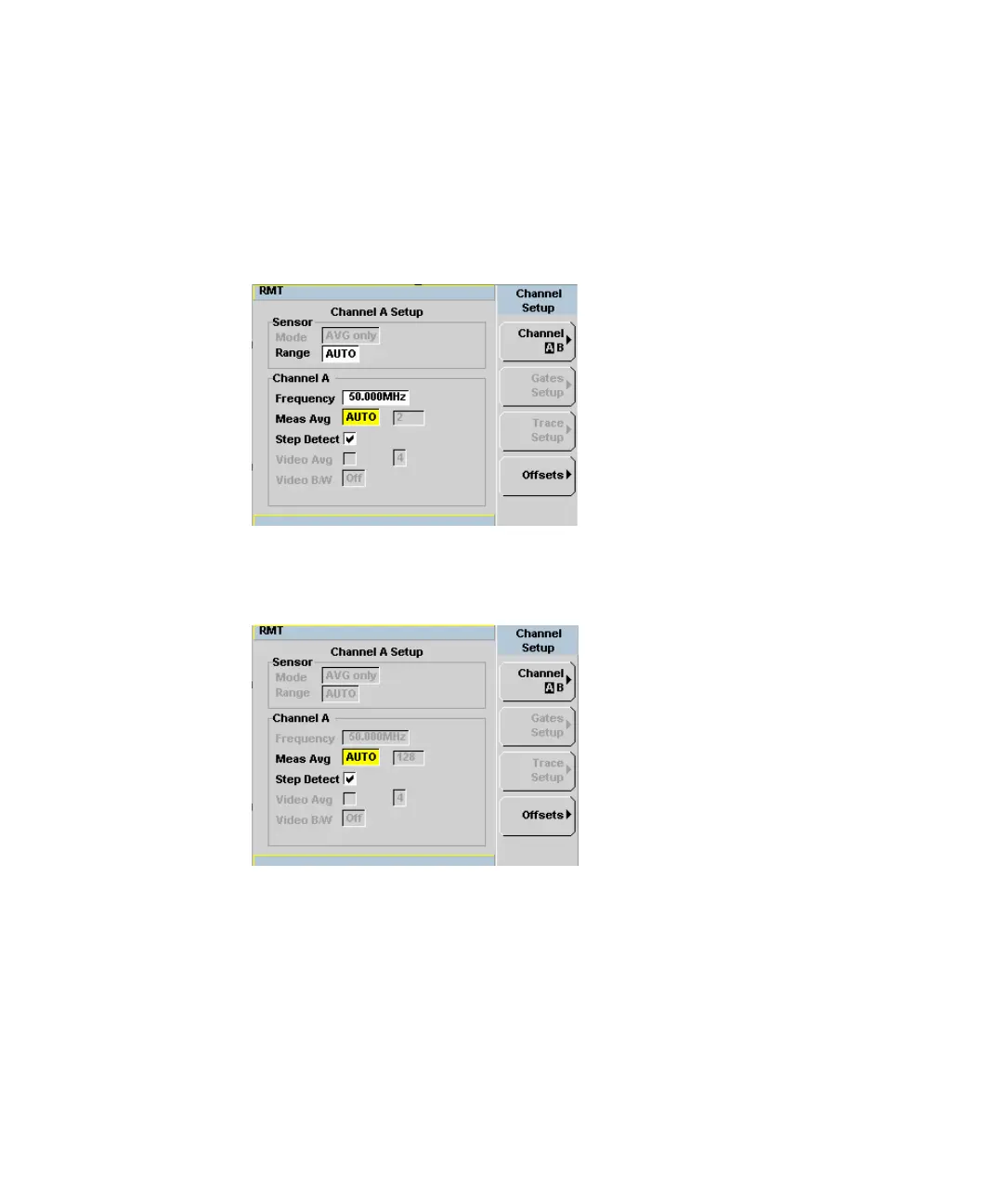

Figure 6-2 N8480 Series sensor (excluding Option CFT) default channel
setup
Figure 6-3 N8480 Series sensor with Option CFT default channel setup
