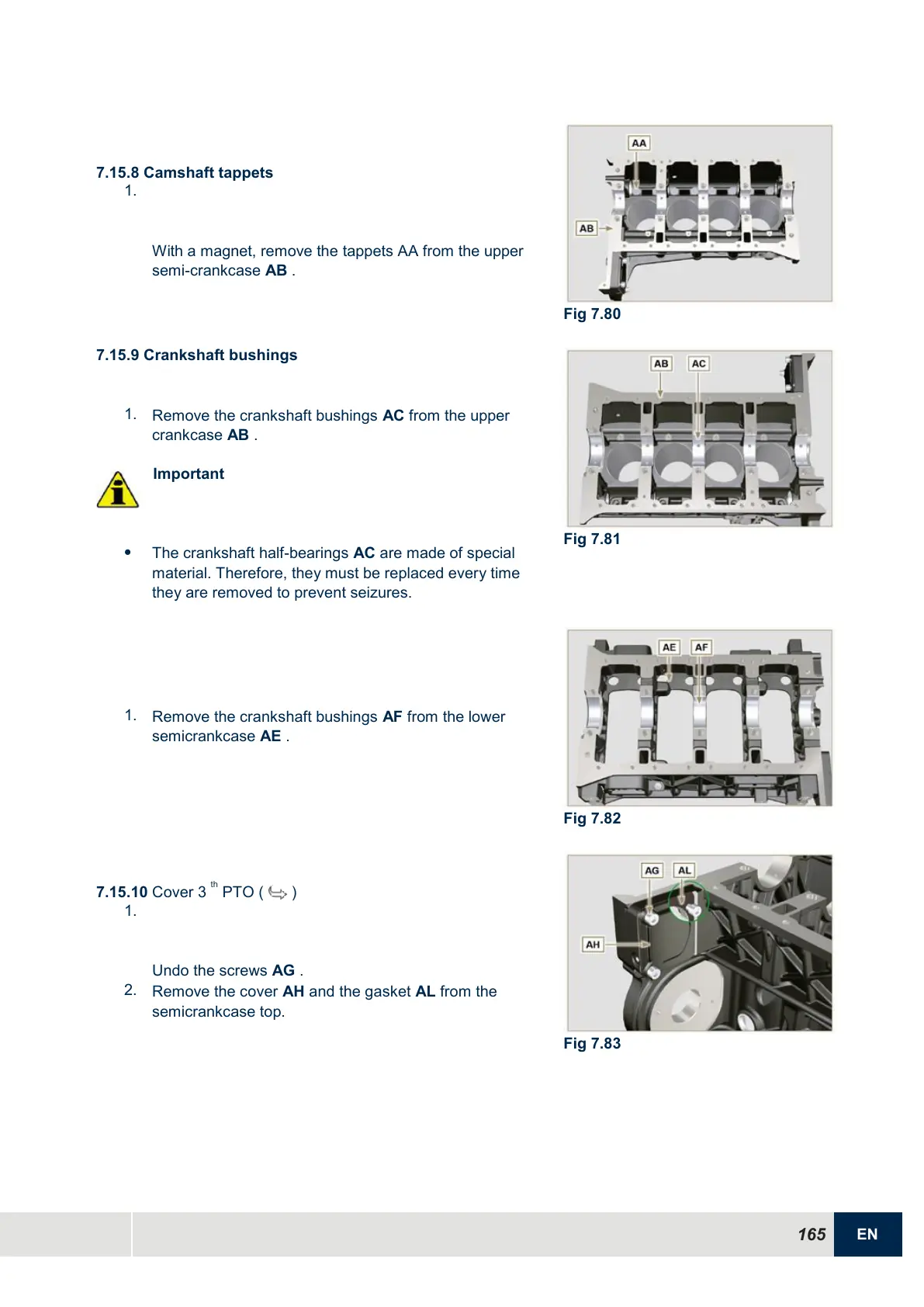

7.15.8 Camshaft tappets
1.
With a magnet, remove the tappets AA from the upper
semi-crankcase AB .
Fig 7.80
7.15.9 Crankshaft bushings
1.
Remove the crankshaft bushings AC from the upper
crankcase AB .
Important

The crankshaft half-bearings AC are made of special
material. Therefore, they must be replaced every time
they are removed to prevent seizures.
Fig 7.81
1.
Remove the crankshaft bushings AF from the lower
semicrankcase AE .
Fig 7.82
7.15.10 Cover 3
th
PTO ( )
1.
Undo the screws AG .
2.
Remove the cover AH and the gasket AL from the
semicrankcase top.
Fig 7.83
