values measured, calculate the clearance between the
housing and gudgeon, which is to observe the
values in Tab. 8.2a .
The MAX value of wear allowed is 0.120 mm
Important

Tab. 8.3a details the dimensional values of new
components only.
W
43.000 - 43.025
0.060 - 0.105
W1
42.920 - 42.940
K
42.000 - 42.025
0.060 - 0.105
K1
41.920 - 41.940
Z
36.000 - 36.025
0.060 - 0.105
Z1
35.920 - 35.940

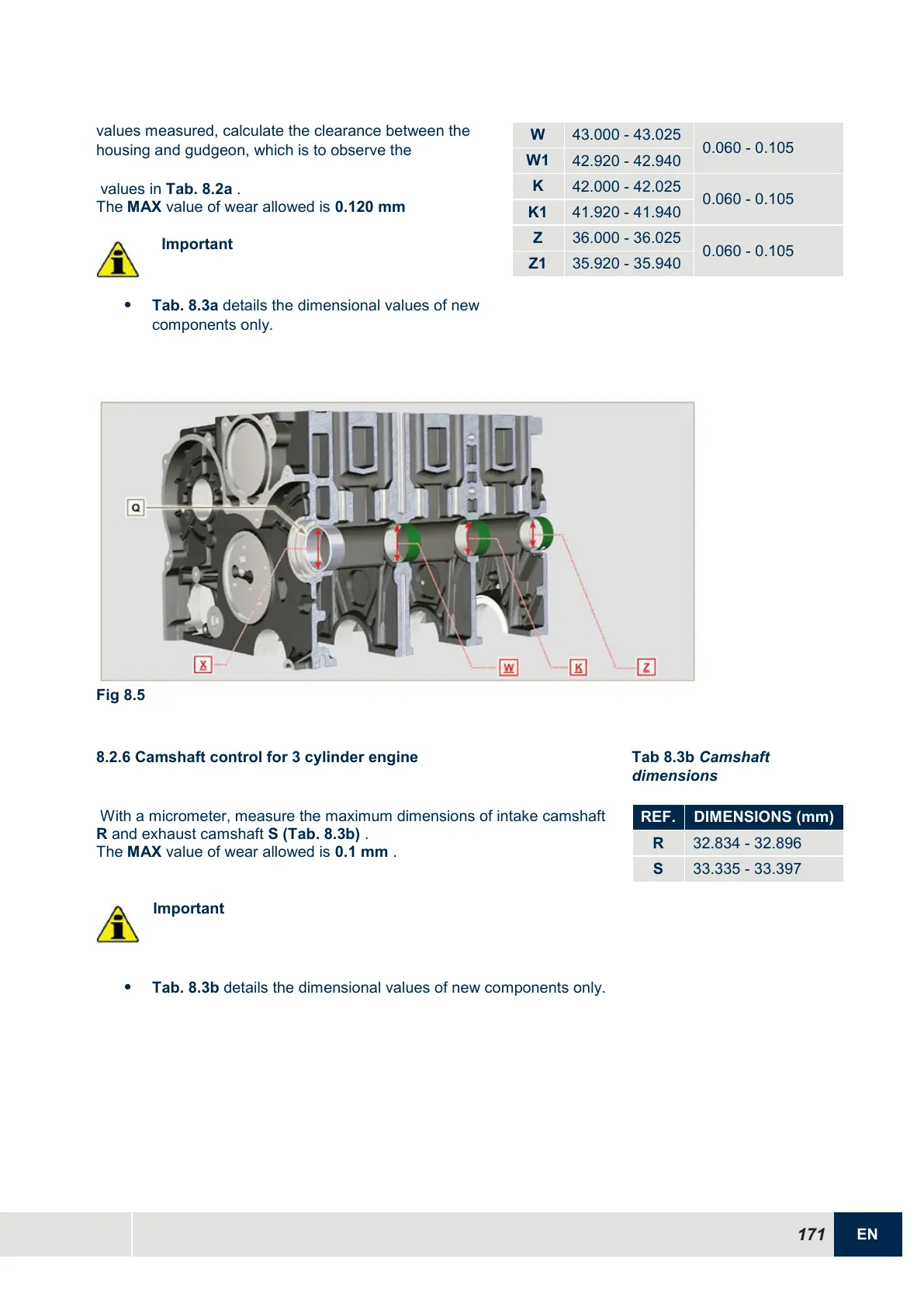

Fig 8.5
8.2.6 Camshaft control for 3 cylinder engine
With a micrometer, measure the maximum dimensions of intake camshaft
R and exhaust camshaft S (Tab. 8.3b) .
The MAX value of wear allowed is 0.1 mm .
Important

Tab. 8.3b details the dimensional values of new components only.
Tab 8.3b Camshaft
dimensions
REF.
DIMENSIONS (mm)
R
32.834 - 32.896
S
33.335 - 33.397
