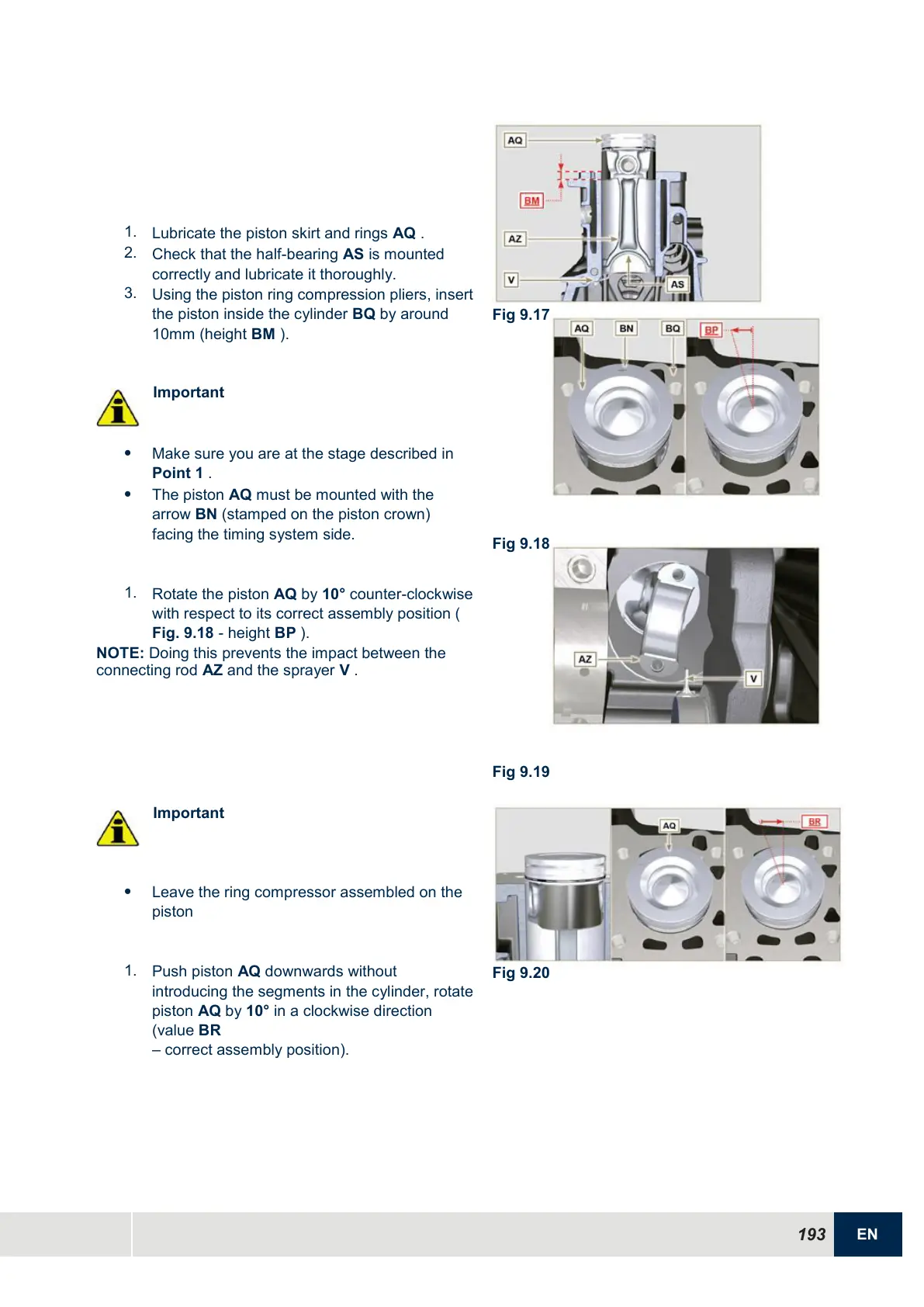

Kohler KDI 1903 TCR Workshop Manual

193
EN
1.
Lubricate the piston skirt and rings AQ .
2.
Check that the half-bearing AS is mounted
correctly and lubricate it thoroughly.
3.
Using the piston ring compression pliers, insert
the piston inside the cylinder BQ by around
10mm (height BM ).
Important

Make sure you are at the stage described in
Point 1 .

The piston AQ must be mounted with the
arrow BN (stamped on the piston crown)
facing the timing system side.
1.
Rotate the piston AQ by 10° counter-clockwise
with respect to its correct assembly position (
Fig. 9.18 - height BP ).
NOTE: Doing this prevents the impact between the
connecting rod AZ and the sprayer V .
Fig 9.17
Fig 9.18
Fig 9.19
Important

Leave the ring compressor assembled on the
piston
1.
Push piston AQ downwards without
introducing the segments in the cylinder, rotate
piston AQ by 10° in a clockwise direction
(value BR
– correct assembly position).
Fig 9.20
