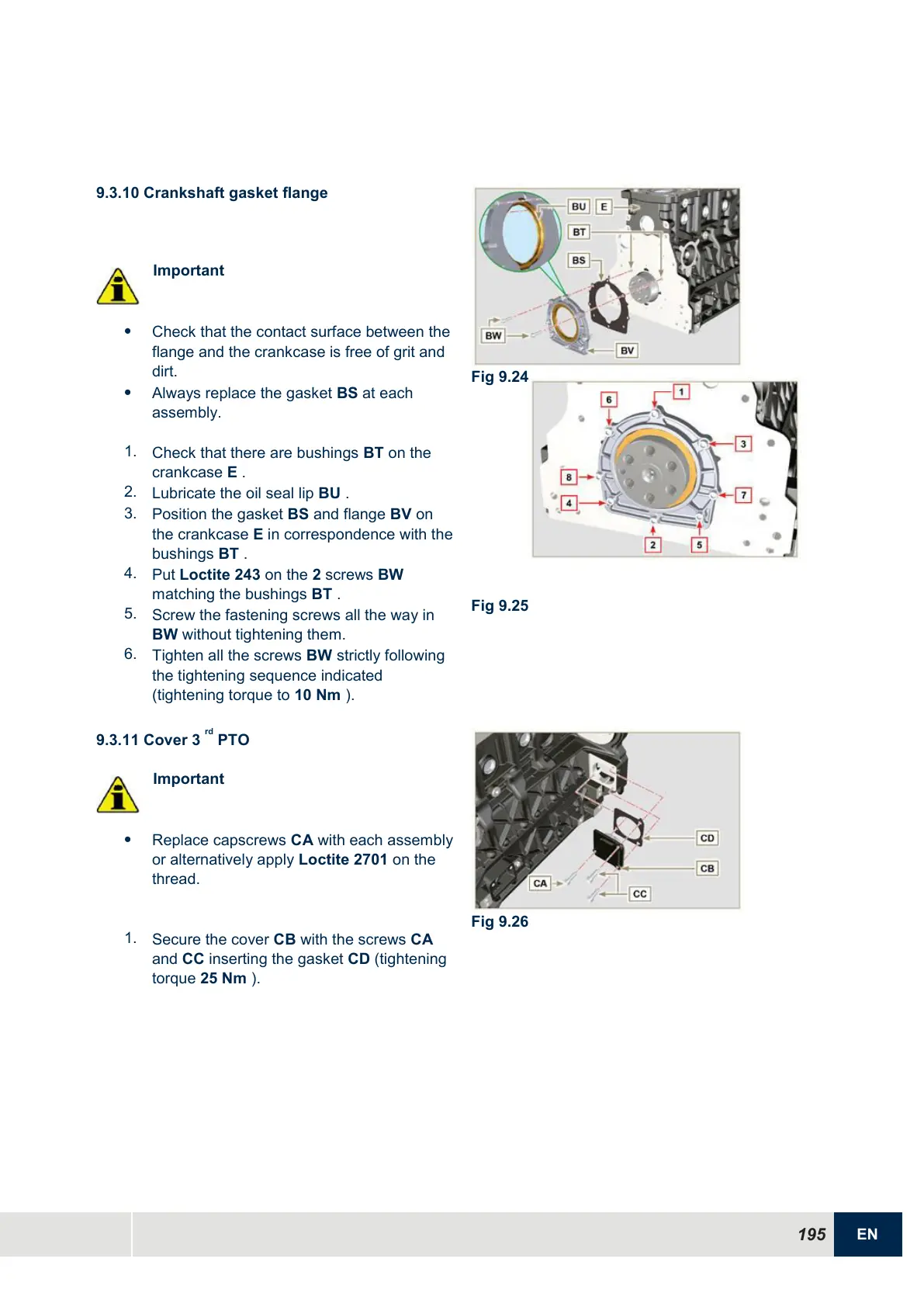

9.3.10 Crankshaft gasket flange
Important

Check that the contact surface between the
flange and the crankcase is free of grit and
dirt.

Always replace the gasket BS at each
assembly.
1.
Check that there are bushings BT on the
crankcase E .
2.
Lubricate the oil seal lip BU .
3.
Position the gasket BS and flange BV on
the crankcase E in correspondence with the
bushings BT .
4.
Put Loctite 243 on the 2 screws BW
matching the bushings BT .
5.
Screw the fastening screws all the way in
BW without tightening them.
6.
Tighten all the screws BW strictly following
the tightening sequence indicated
(tightening torque to 10 Nm ).
Fig 9.24
Fig 9.25
9.3.11 Cover 3
rd
PTO
Important

Replace capscrews CA with each assembly
or alternatively apply Loctite 2701 on the
thread.
1.
Secure the cover CB with the screws CA
and CC inserting the gasket CD (tightening
torque 25 Nm ).
Fig 9.26
