Kohler KDI 1903 TCR Workshop Manual

251
EN

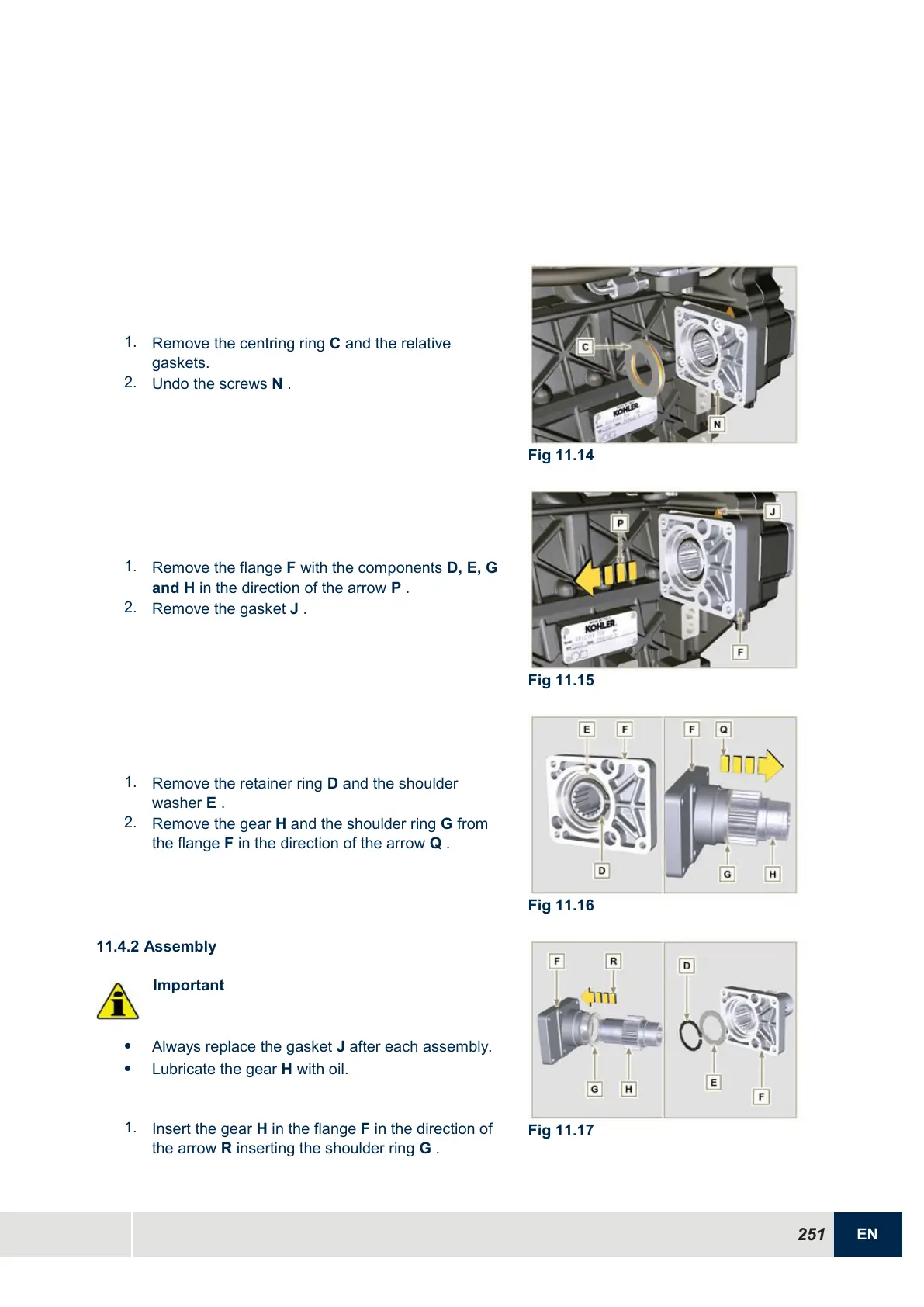

1.
Remove the centring ring C and the relative
gaskets.
2.
Undo the screws N .
Fig 11.14
1.
Remove the flange F with the components D, E, G
and H in the direction of the arrow P .
2.
Remove the gasket J .
Fig 11.15
1.
Remove the retainer ring D and the shoulder
washer E .
2.
Remove the gear H and the shoulder ring G from
the flange F in the direction of the arrow Q .
Fig 11.16
11.4.2 Assembly
Important

Always replace the gasket J after each assembly.

Lubricate the gear H with oil.
1.
Insert the gear H in the flange F in the direction of
the arrow R inserting the shoulder ring G .
Fig 11.17
