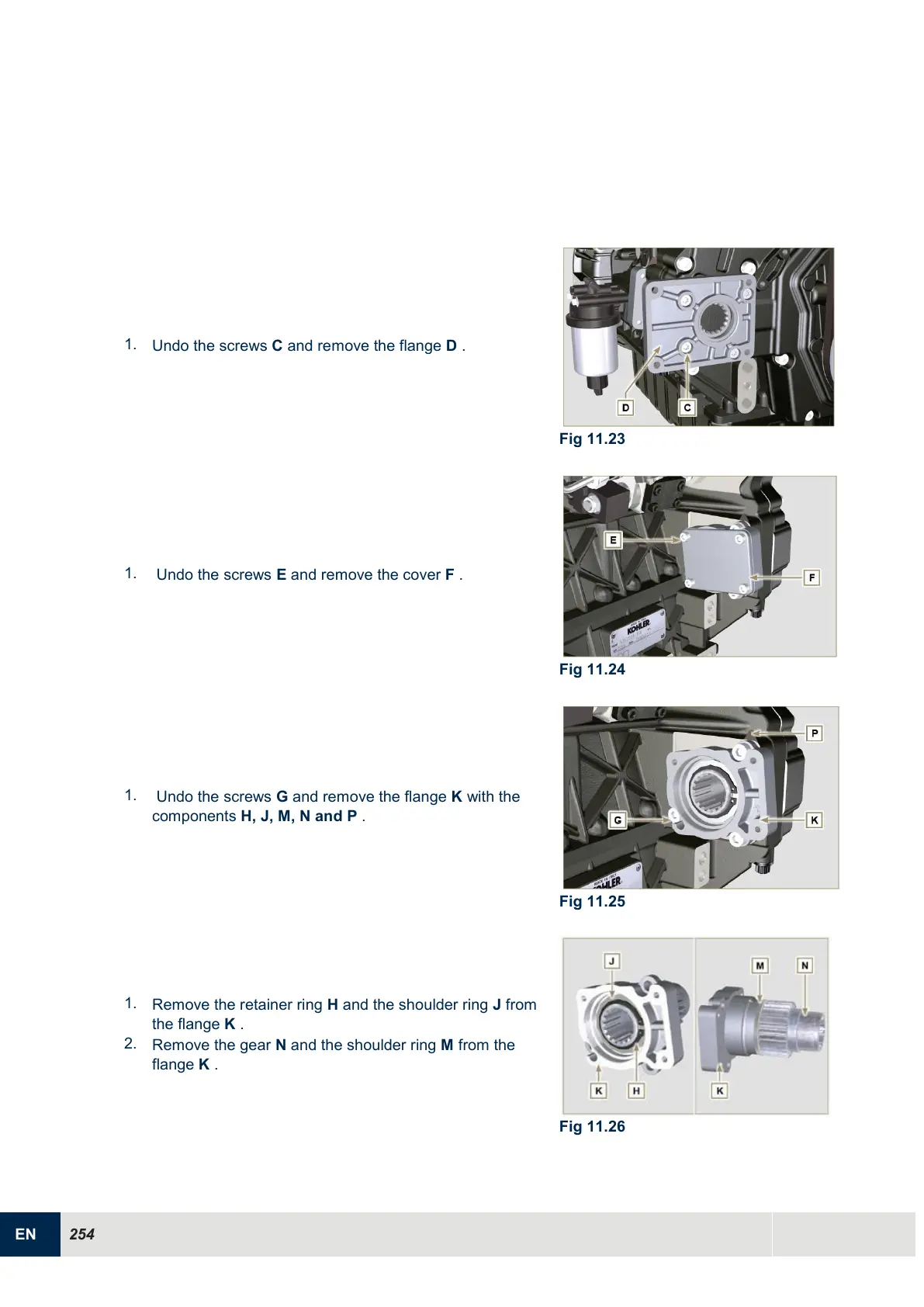

1.
Undo the screws C and remove the flange D .
Fig 11.23
1.
Undo the screws E and remove the cover F .
Fig 11.24
1.
Undo the screws G and remove the flange K with the
components H, J, M, N and P .
Fig 11.25
1.
Remove the retainer ring H and the shoulder ring J from
the flange K .
2.
Remove the gear N and the shoulder ring M from the
flange K .
Fig 11.26
