11..2 Assembly
Important

Always replace the gasket J after each assembly.

Lubricate the gear H with oil.
1.
Insert the gear N in the flange K in the direction of the
arrow W inserting the shoulder ring M .
2.
Insert the shoulder ring J on the flange K and clamp the
gear N using the retainer ring H .

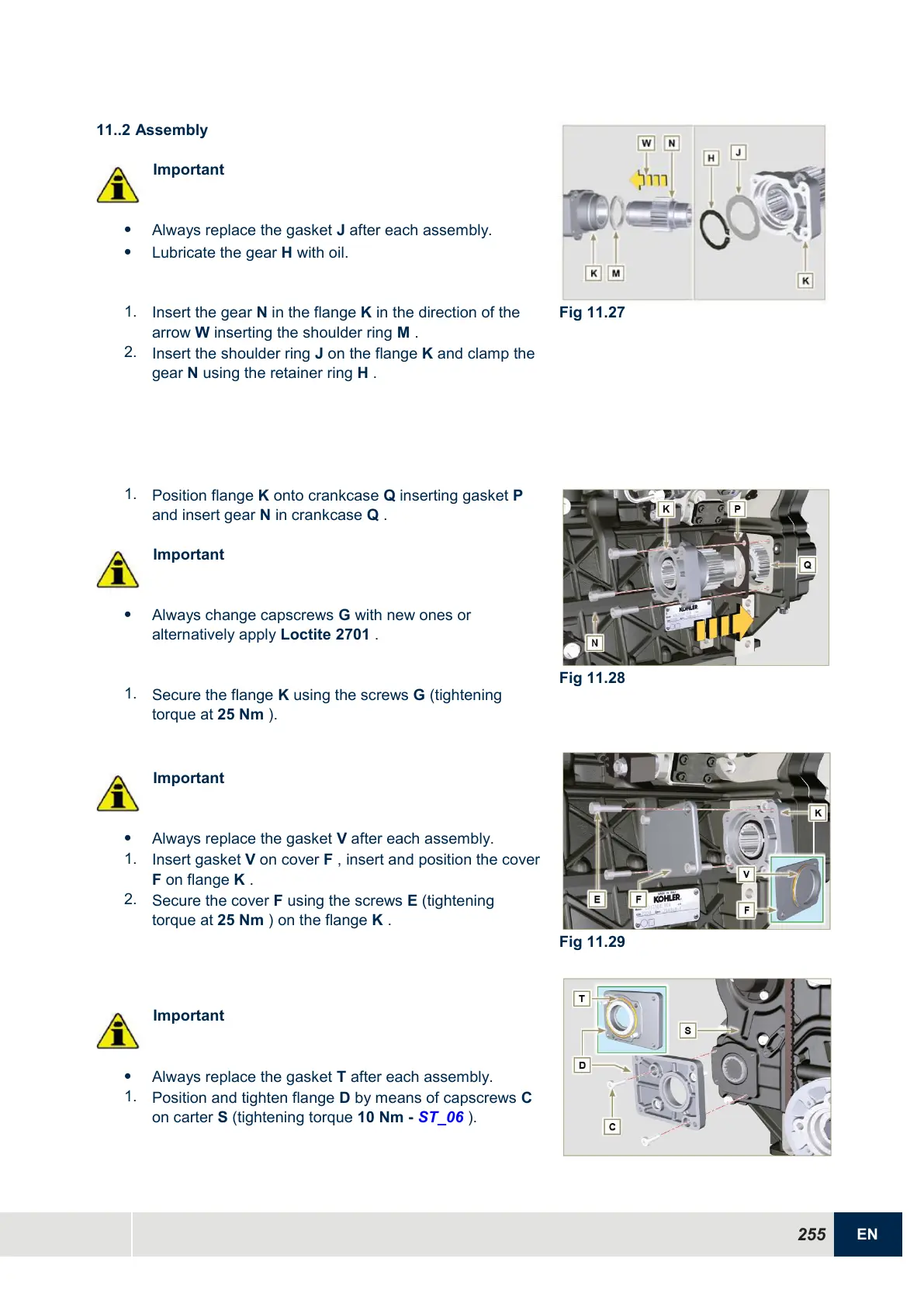

Fig 11.27
1.
Position flange K onto crankcase Q inserting gasket P
and insert gear N in crankcase Q .
Important

Always change capscrews G with new ones or
alternatively apply Loctite 2701 .
1.
Secure the flange K using the screws G (tightening
torque at 25 Nm ).
Fig 11.28
Important

Always replace the gasket V after each assembly.
1.
Insert gasket V on cover F , insert and position the cover
F on flange K .
2.
Secure the cover F using the screws E (tightening
torque at 25 Nm ) on the flange K .
Fig 11.29
Important

Always replace the gasket T after each assembly.
1.
Position and tighten flange D by means of capscrews C
on carter S (tightening torque 10 Nm - ST_06 ).
