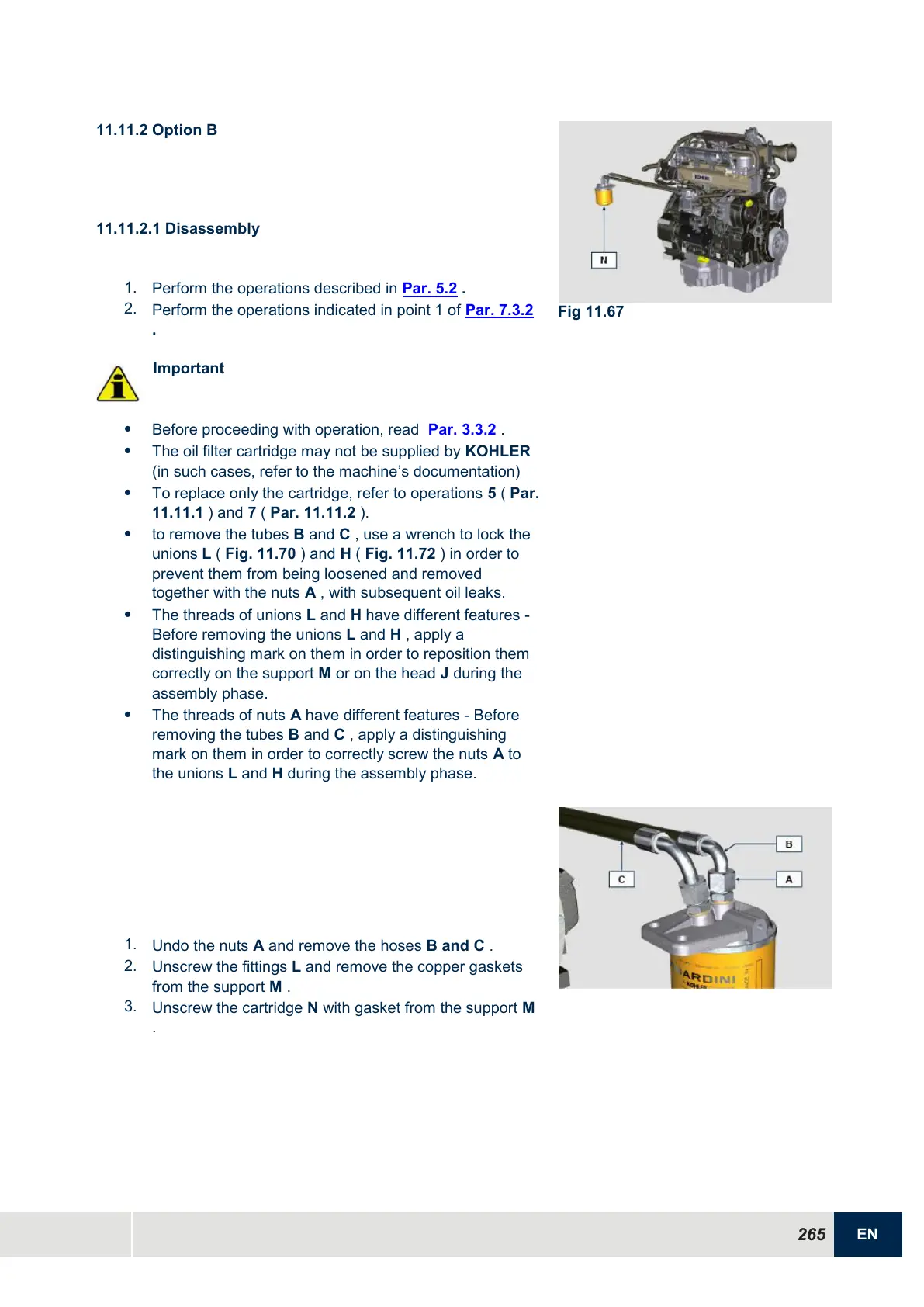

11.11.2 Option B
11.11.2.1 Disassembly
1.
Perform the operations described in Par. 5.2 .
2.
Perform the operations indicated in point 1 of Par. 7.3.2
.
Important

Before proceeding with operation, read Par. 3.3.2 .

The oil filter cartridge may not be supplied by KOHLER
(in such cases, refer to the machine’s documentation)

To replace only the cartridge, refer to operations 5 ( Par.
11.11.1 ) and 7 ( Par. 11.11.2 ).

to remove the tubes B and C , use a wrench to lock the
unions L ( Fig. 11.70 ) and H ( Fig. 11.72 ) in order to
prevent them from being loosened and removed
together with the nuts A , with subsequent oil leaks.

The threads of unions L and H have different features -
Before removing the unions L and H , apply a
distinguishing mark on them in order to reposition them
correctly on the support M or on the head J during the
assembly phase.

The threads of nuts A have different features - Before
removing the tubes B and C , apply a distinguishing
mark on them in order to correctly screw the nuts A to
the unions L and H during the assembly phase.
Fig 11.67
1.
Undo the nuts A and remove the hoses B and C .
2.
Unscrew the fittings L and remove the copper gaskets
from the support M .
3.
Unscrew the cartridge N with gasket from the support M
.
