EN
48
catalyst must be connected via a flexible exhaust tube.
Tab 2.32a
POS.
DESCRIPTION
4
Turbocharger
5
Gas exhaust flange
13
DOC
14
Flexible exhaust tube

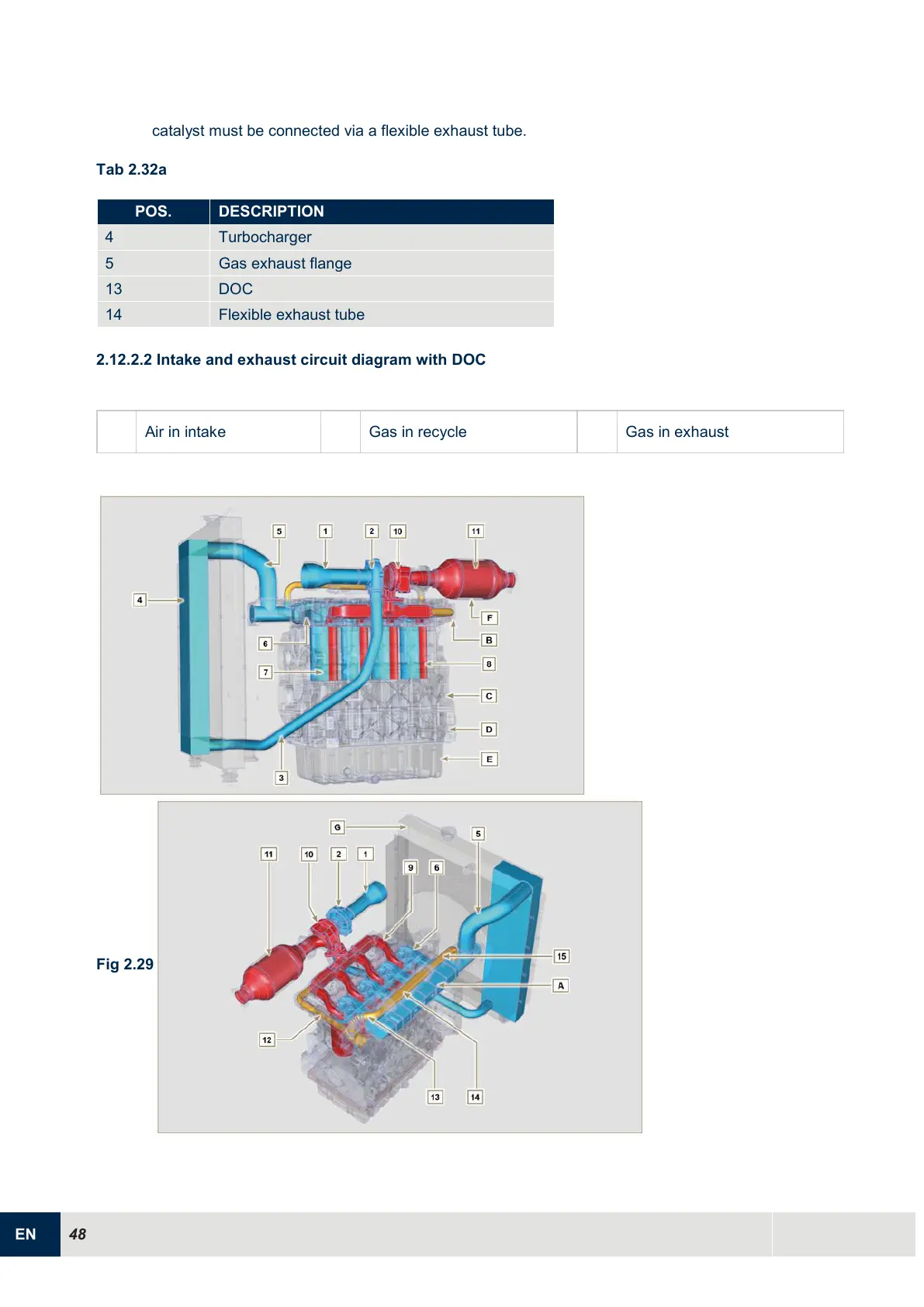

2.12.2.2 Intake and exhaust circuit diagram with DOC
Air in intake
Gas in recycle
Gas in exhaust
Fig 2.29
