Kohler KDI 1903 TCR Workshop Manual

53
EN
11
Gas in oxidation
12
Gas in recycle towards EGR valve
16
DPF
F
DOC
G
Radiator/intercooler
H
ATS

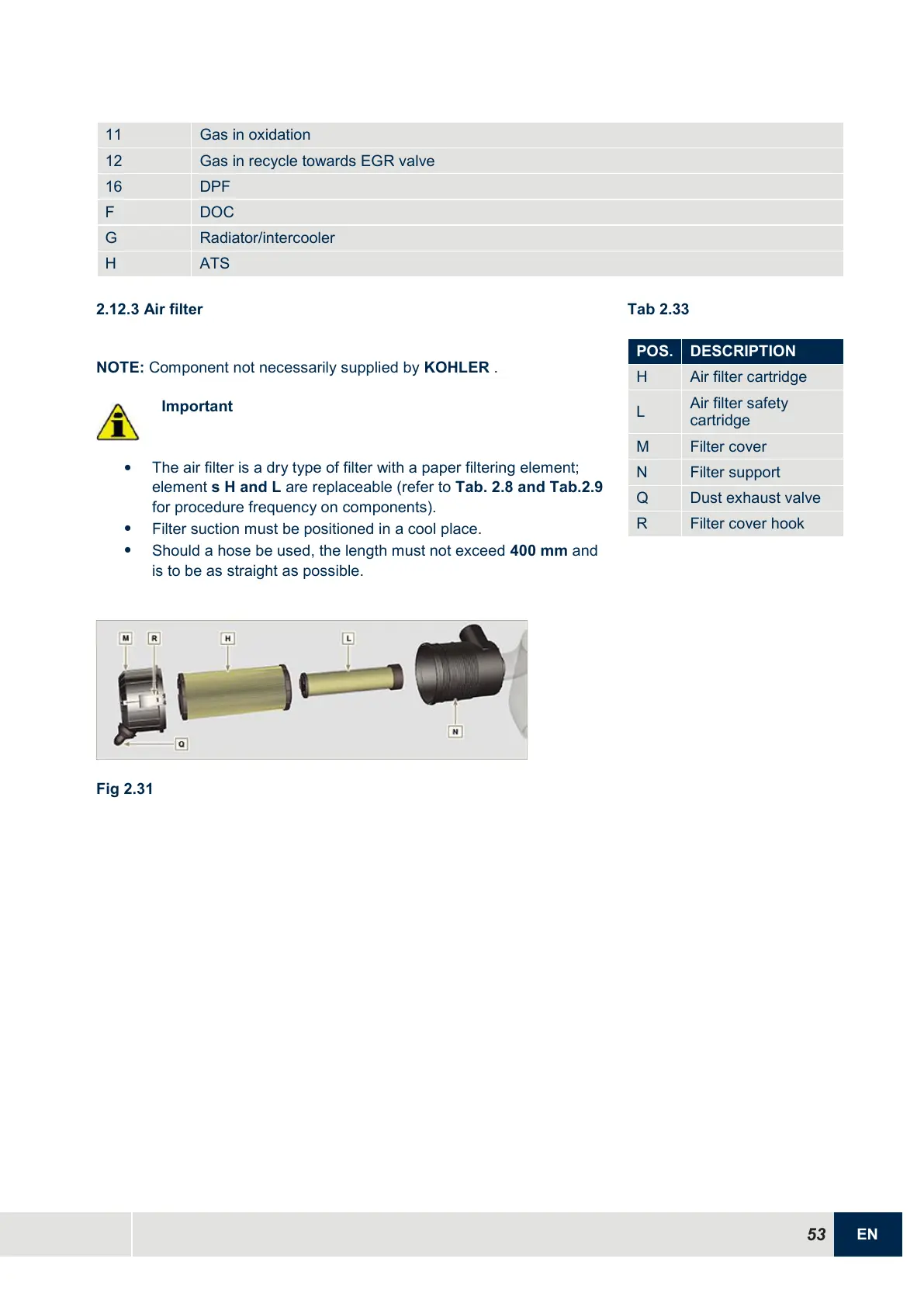

2.12.3 Air filter
NOTE:
Component not necessarily supplied by
KOHLER
.
Important

The air filter is a dry type of filter with a paper filtering element;
element s H and L are replaceable (refer to Tab. 2.8 and Tab.2.9
for procedure frequency on components).

Filter suction must be positioned in a cool place.

Should a hose be used, the length must not exceed 400 mm and
is to be as straight as possible.
Fig 2.31
Tab 2.33
POS.
DESCRIPTION
H
Air filter cartridge
L
Air filter safety
cartridge
M
Filter cover
N
Filter support
Q
Dust exhaust valve
R
Filter cover hook
