Kohler KDI 1903 TCR Workshop Manual

61
EN
°C (°F)
R ( Ω )
-30 (-22)
23475 - 25945
0 (32)
5370 - 5935
25 (77)
1900 - 2100
50 (122)
772 - 854
100 (212)
177 - 195
120 (248)
107 - 119
KDI TC
Fig 2.37

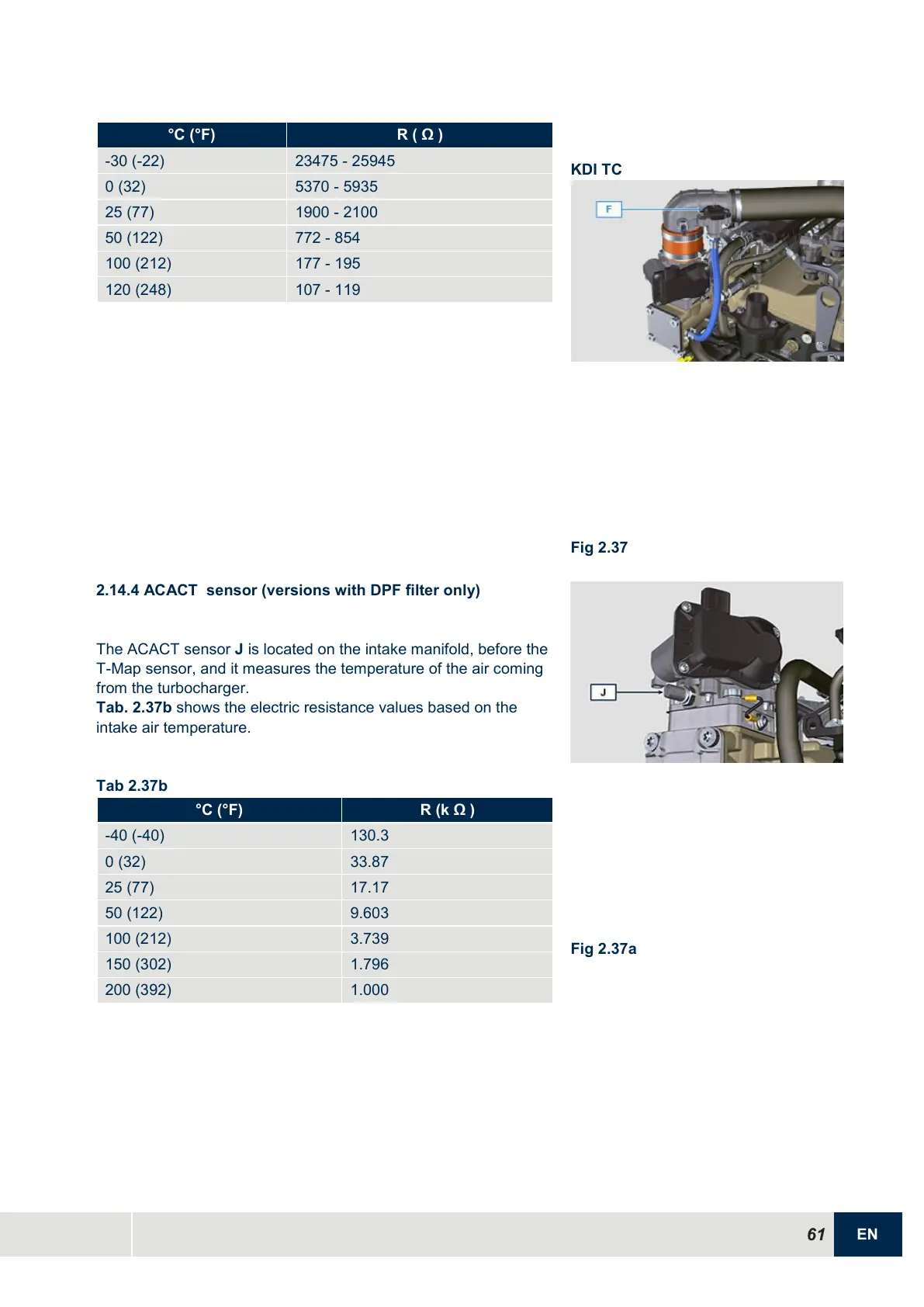

2.14.4 ACACT sensor (versions with DPF filter only)
The ACACT sensor
J
is located on the intake manifold, before the
T-Map sensor, and it measures the temperature of the air coming
from the turbocharger.
Tab. 2.37b
shows the electric resistance values based on the
intake air temperature.
Tab 2.37b
°C (°F)
R (k Ω )
-40 (-40)
130.3
0 (32)
33.87
25 (77)
17.17
50 (122)
9.603
100 (212)
3.739
150 (302)
1.796
200 (392)
1.000
