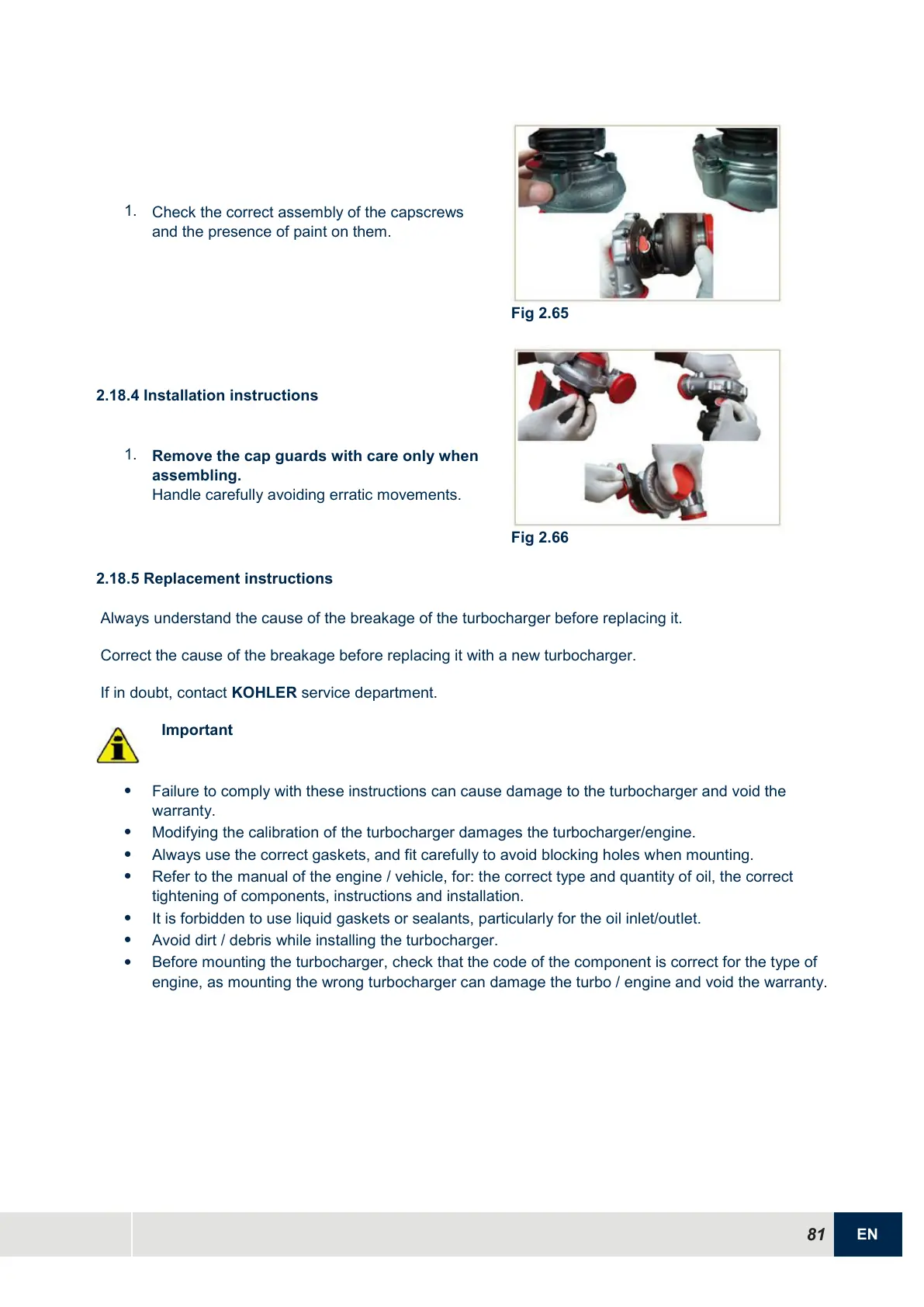

Kohler KDI 1903 TCR Workshop Manual

81
EN
1.
Check the correct assembly of the capscrews
and the presence of paint on them.
Fig 2.65
2.18.4 Installation instructions
1.
Remove the cap guards with care only when
assembling.
Handle carefully avoiding erratic movements.
Fig 2.66
2.18.5 Replacement instructions
Always understand the cause of the breakage of the turbocharger before replacing it.
Correct the cause of the breakage before replacing it with a new turbocharger.
If in doubt, contact KOHLER service department.
Important

Failure to comply with these instructions can cause damage to the turbocharger and void the
warranty.

Modifying the calibration of the turbocharger damages the turbocharger/engine.

Always use the correct gaskets, and fit carefully to avoid blocking holes when mounting.

Refer to the manual of the engine / vehicle, for: the correct type and quantity of oil, the correct
tightening of components, instructions and installation.

It is forbidden to use liquid gaskets or sealants, particularly for the oil inlet/outlet.

Avoid dirt / debris while installing the turbocharger.

Before mounting the turbocharger, check that the code of the component is correct for the type of
engine, as mounting the wrong turbocharger can damage the turbo / engine and void the warranty.
