MACHINE OPERATIONS AND CONTROLS OPERATION
3-182

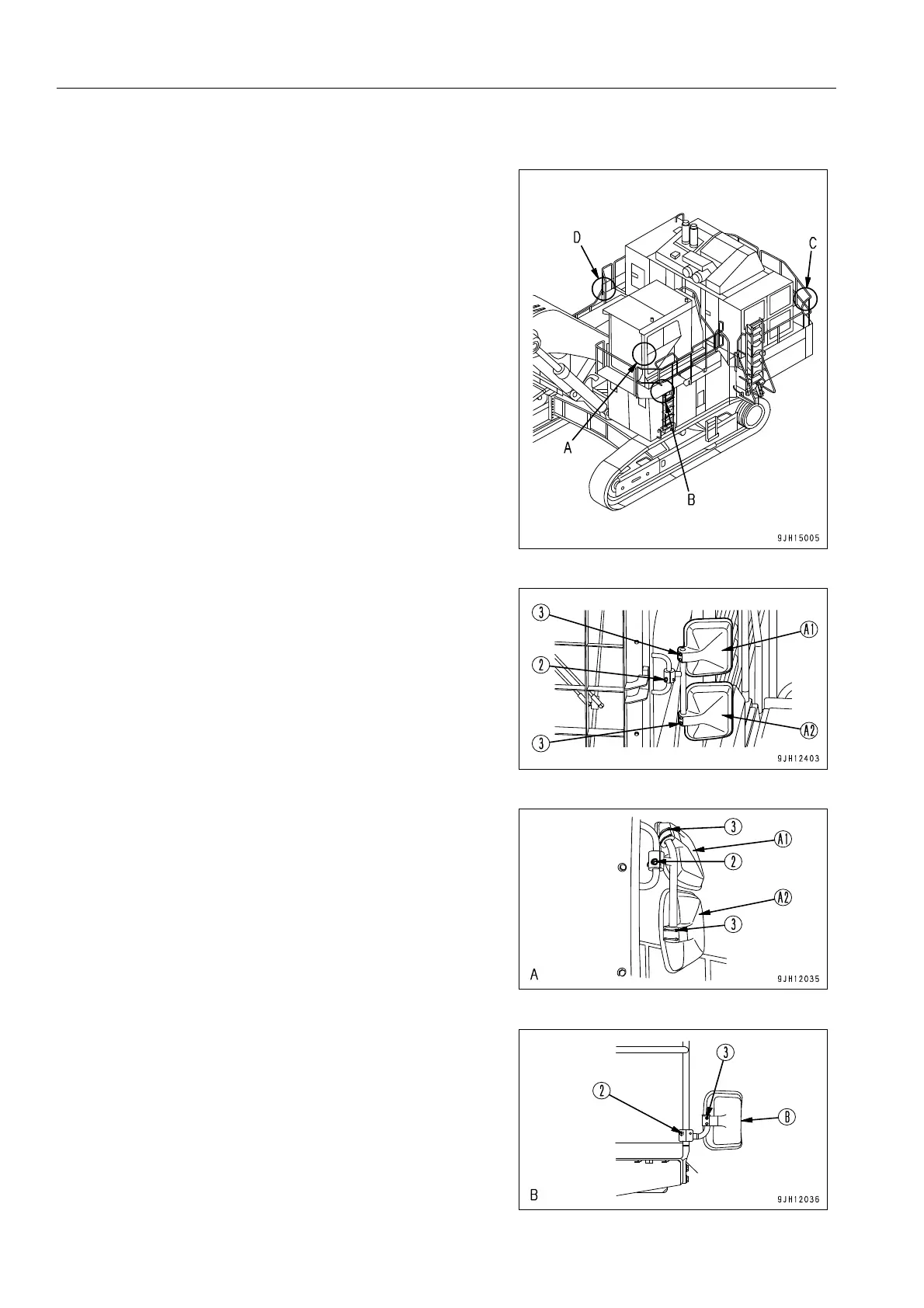

Rearview Mirrors
q The rear view mirrors are installed to the following numeral
for places.
A: Installed to cab at front left of machine
B: Installed to floor around cab at front left of machine
C: Installed to handrail at rear left of machine
D: Installed to handrail at right center of machine
q Loosen nuts (1), bolts (2), and screws (3) holding the mir-
ror, then adjust to a position which gives the best view from
the operator's seat.
In particular, adjust so that people to the left and right side
at the rear of the machine can be seen.
q When installing the mirrors, adjust so that it is possible to
see people (or objects of a height of 1 m and diameter of
30 cm) at the left and right sides at the rear of the machine.
(A1)(A2): Adjust the angle of (A1) and (A2) mirrors the way a
view in the rear on the left side can be seen.
(B): Adjust the angle of (B) mirror the way a view of the catwalk
can be seen.
