OPERATION MACHINE OPERATIONS AND CONTROLS
3-183

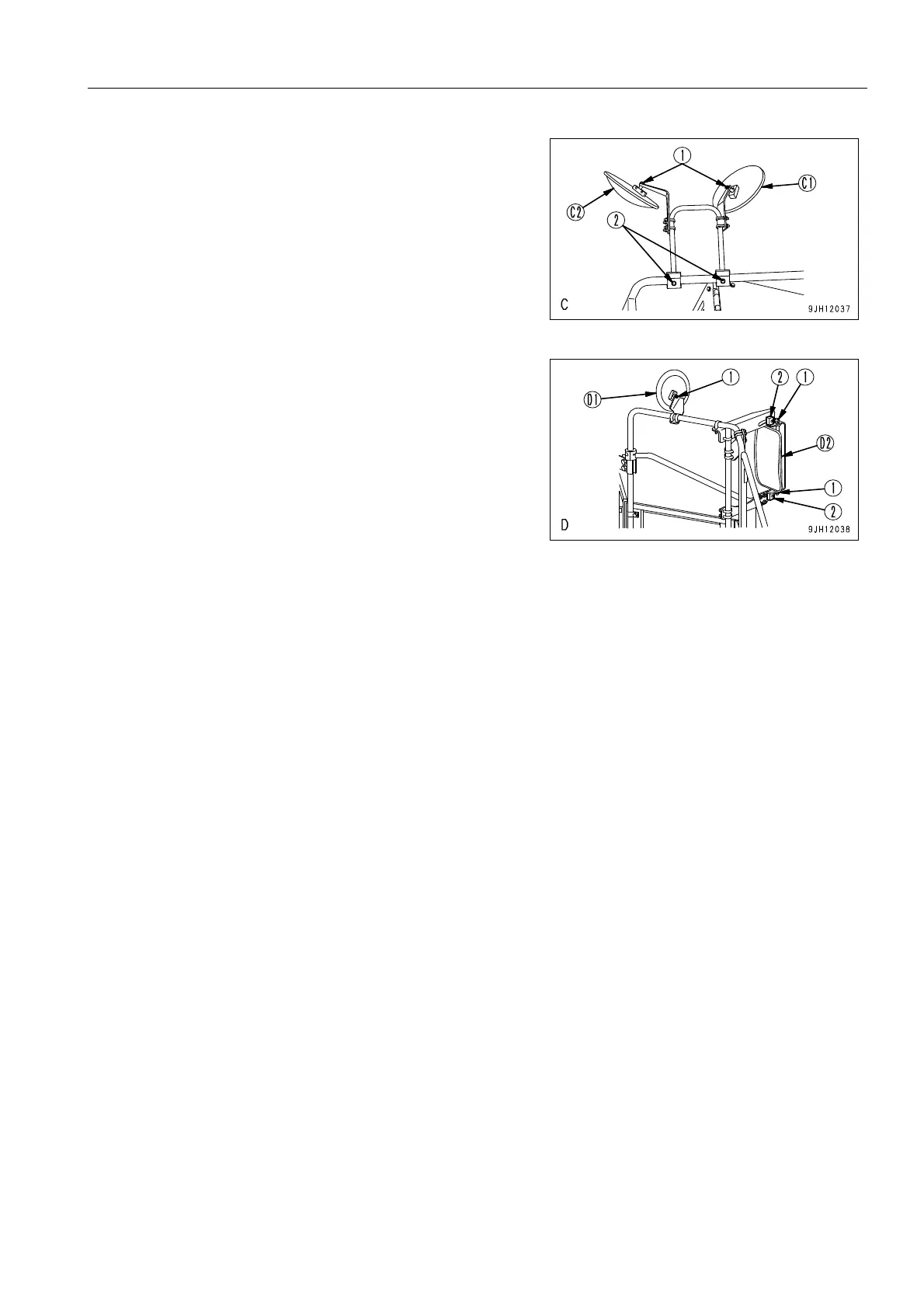

(C1): Rear on the left side
(C2): Adjust the angle of (C2) mirror the way a view in the rear
of the counterweight left portion can be seen.
(D1): Adjust the angle of (D1) mirror the way a view of the fuel
tank right lower portion can be seen.
(D2): Adjust the angle of (D2) mirror the way a view of the right
lower portion in the rear.
