MAINTENANCE MAINTENANCE PROCEDURE

4-57

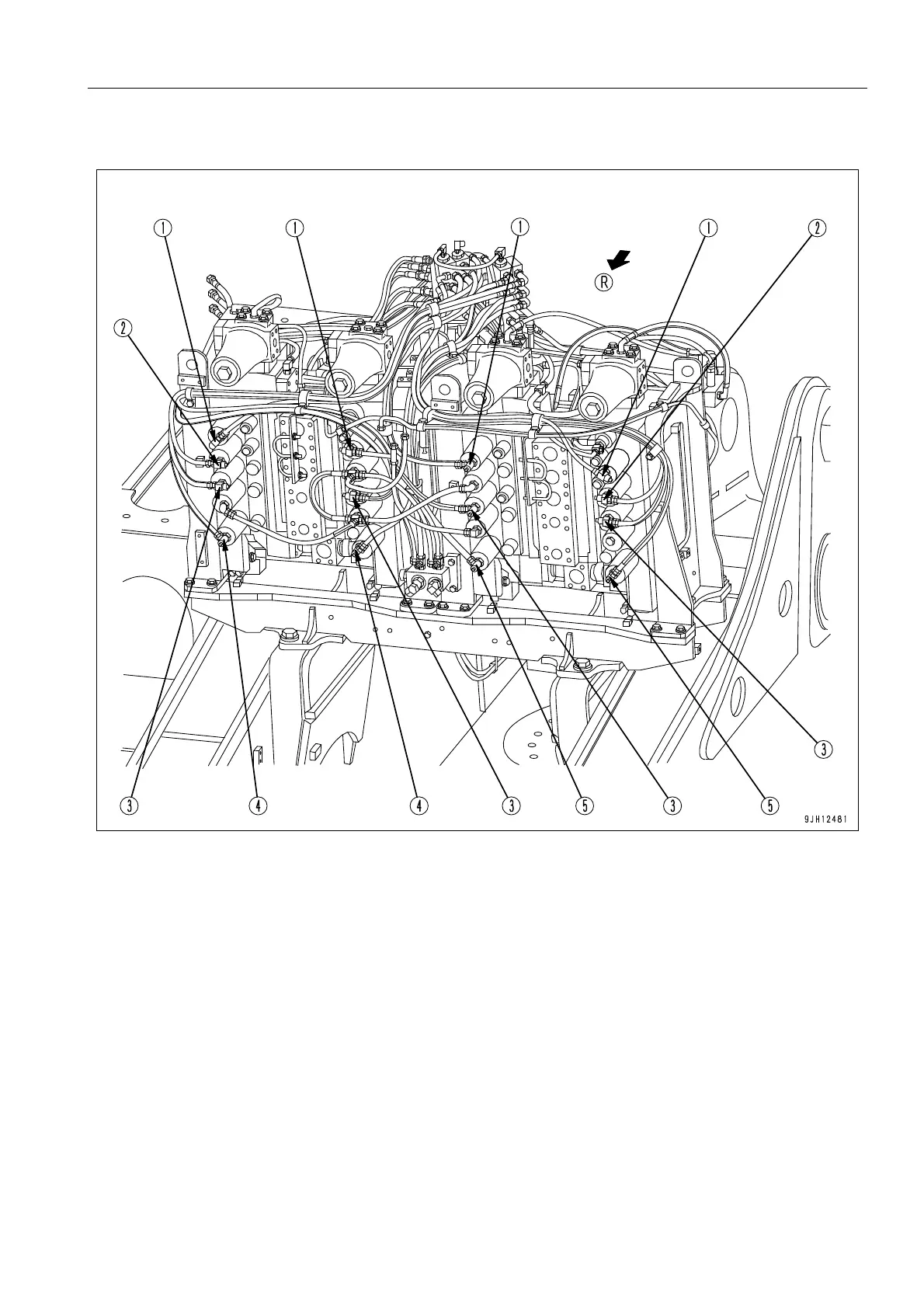

Rear Side of Main Valve

(R) Machine's rear side

(1) Arm DUMP (4 locations)

(2) Boom LOWER (2 locations)

(3) Bucket DUMP (4 locations)

(4) Left travel forward (2 locations)

(5) Right travel forward (2 locations)
