LOADING SHOVEL MAINTENANCE
7-15

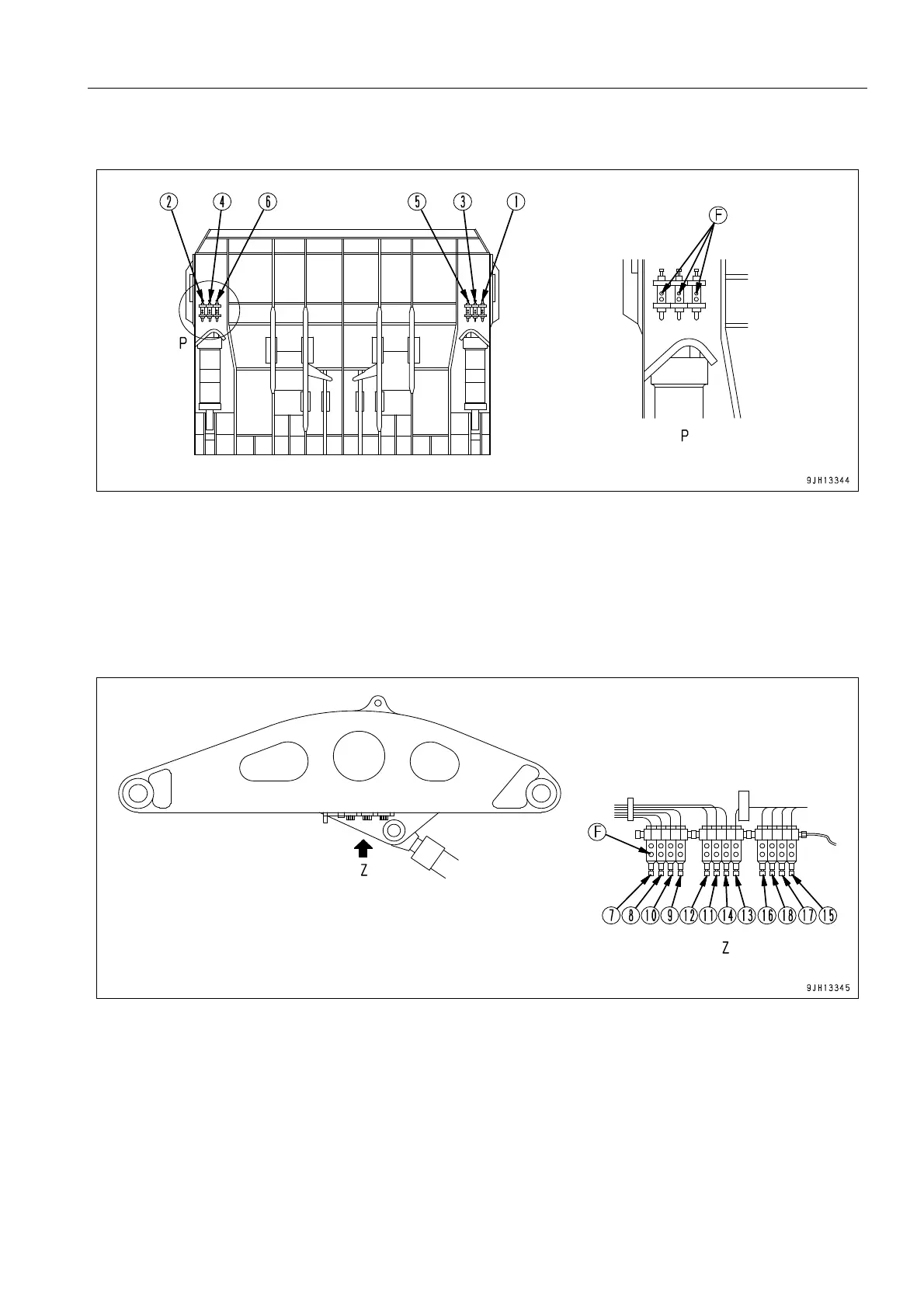

(A): Injector installed on the bucket
(B): Injector installed on the arm
(1) F&R bucket connector pin (RH) (5) Bottom dump cylinder bottom pin (RH)
(2) F&R bucket connector pin (LH) (6) Bottom dump cylinder bottom pin (LH)
(3) Bottom dump cylinder head pin (RH) (F) Grease fitting
(4) Bottom dump cylinder head pin (LH)
(7) Arm top pin (RH1) (14) Bucket cylinder bottom pin (LH)
(8) Arm top pin (LH1) (15) Boom top pin (RH)
(9) Arm top pin (RH2) (16) Boom top pin (LH)
(10) Arm top pin (LH2) (17) Bucket cylinder head (RH)
(11) Arm cylinder head pin (RH) (18) Bucket cylinder head (LH)
(12) Arm cylinder head pin (LH) (F) Grease fitting
(13) Bucket cylinder bottom pin (RH)
