MAINTENANCE LOADING SHOVEL
7-16

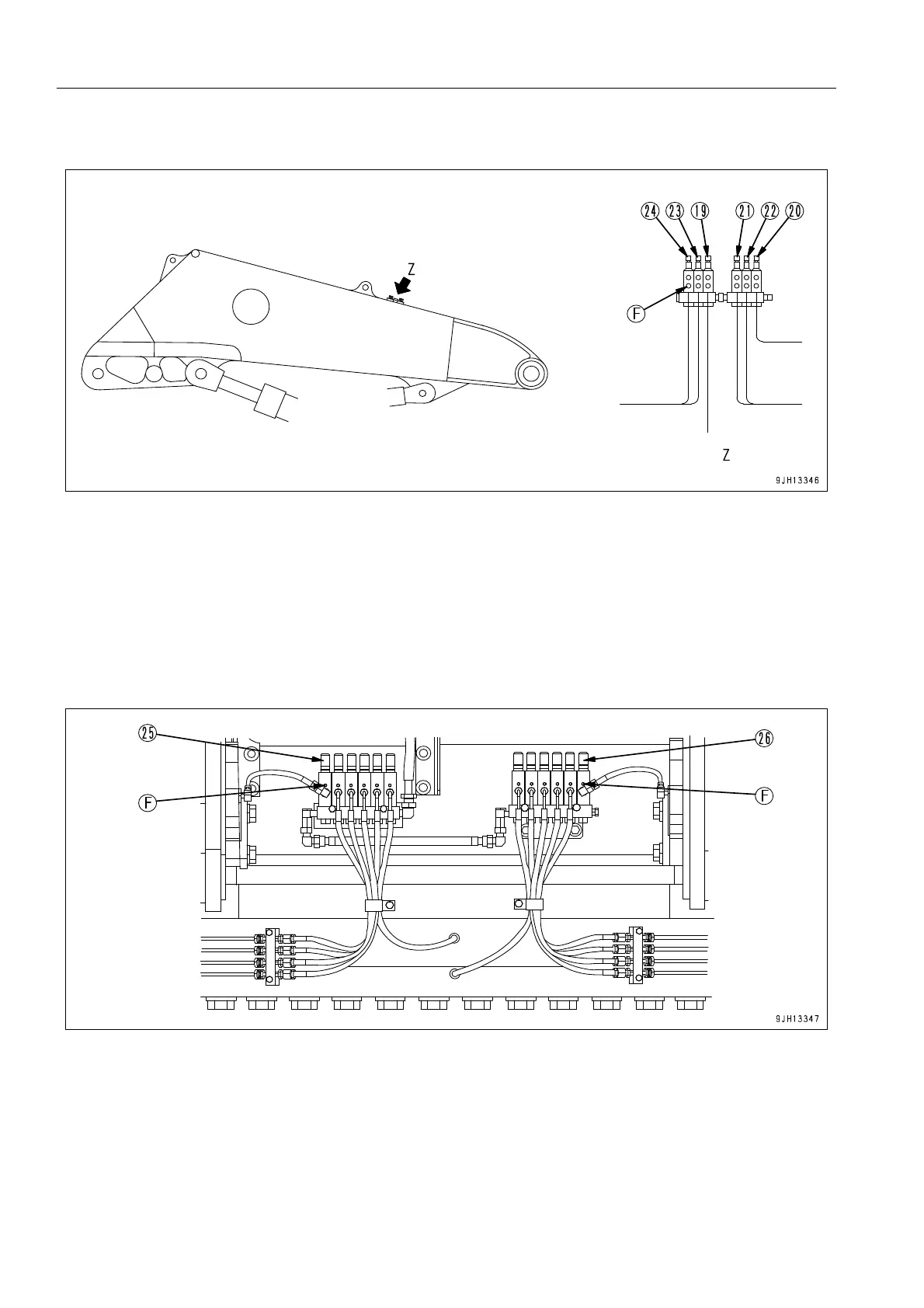

(C): Injector installed on the boom
(D): Injector installed on the chassis
(19) Boom foot pin (RH) (23) Arm cylinder head pin (RH)
(20) Boom foot pin (LH) (24) Arm cylinder head pin (LH)
(21) Arm cylinder bottom pin (RH) (F) Grease fitting
(22) Arm cylinder bottom pin (LH)
(25) Boom cylinder bottom pin (RH) (F) Grease fitting
(26) Boom cylinder bottom pin (LH)
