X75HD/X75SD Installation and Operation Manual 127
Chapter 6: Operation via Front Panel Controls
Control Mode Status LEDs
The Audio, Video, and DV LEDs indicate the current focus of control.
•The Audio LED lights when an audio parameter adjustment is
made.
•The Video LED lights when a video parameter adjustment is made.
•The DV LED lights when the DV control is enabled.
(The DV function is reserved for future use.)

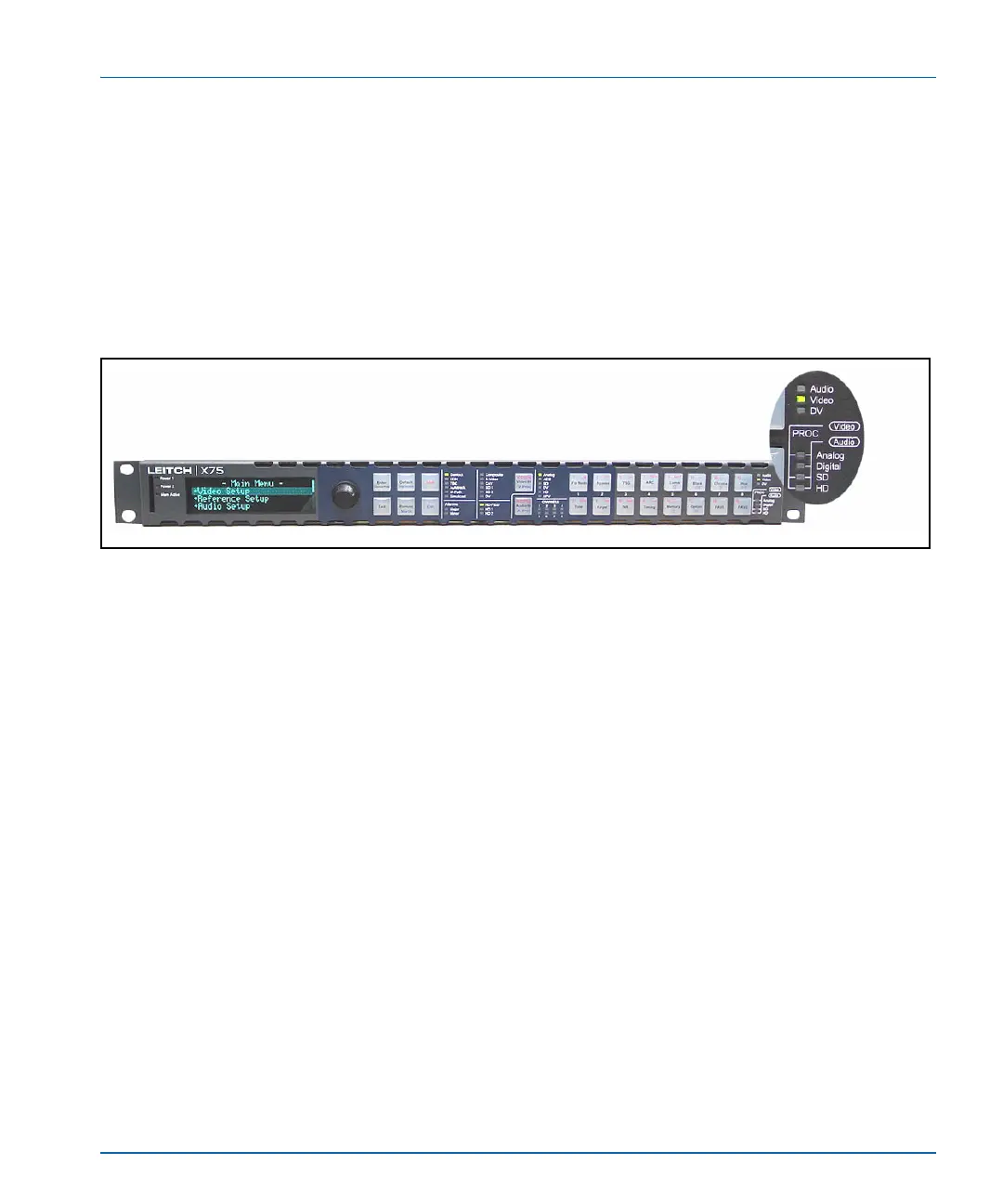

Figure 6-7. Control Mode Status LED Area
