52 X75HD/X75SD Installation and Operation Manual
Chapter 3: Module and Back Panel Descriptions
X75OPT-AS-16/X75OPT-AS-8 Modules and
Back Panels
General Description
The X75OPT-AS-16/8 audio modules and associated back panels
provide two/five AES inputs and outputs, one DARS input, a
four-channel analog audio input, and a four-channel analog audio
output. With this module, the X75HD/X75SD can process, embed, and
de-embed 16/8 channels from/to SDTV and from/to HDTV.
Looking from the rear, this back panel is located in the top, left corner
of the frame, above the SDTV video connectors.

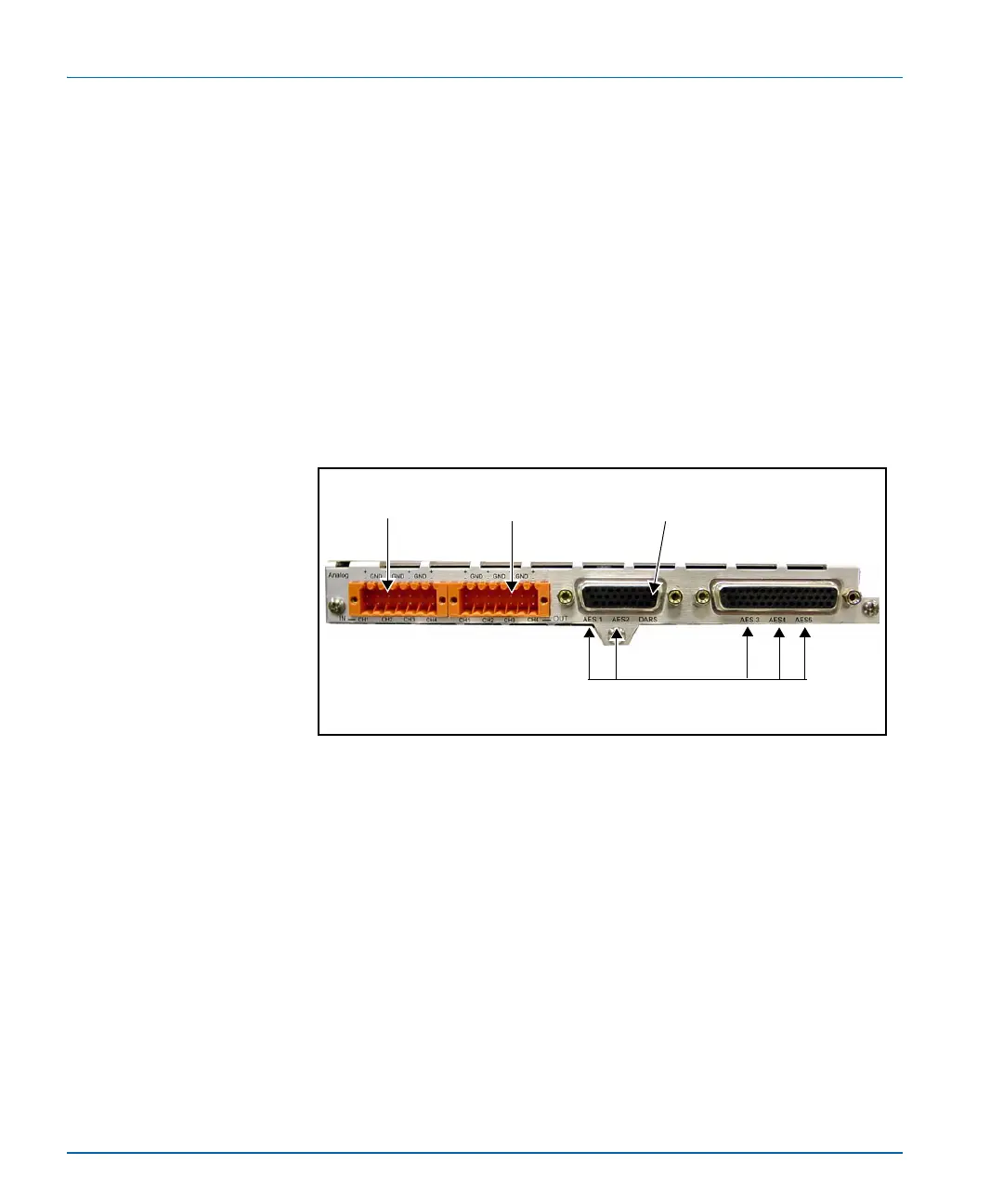

Figure 3-1. X75OPT-AS-16/X75OPT-AS-8 Back Panel
This module provides all audio processing for the X75HD/X75SD and
is required to access, configure, and enable audio parameters in the
Audio Setup submenu, including gain, delay, tone, mute, fade,
voice-over, and AFV (audio follow video).
Analog audio
input connector
DARS input
Analog audio
output connector
AES I/O connectors
