Appendix A: Cables and Pinouts
DVI-D Output Cable (X75OPTCAB-DVI)
The optional DVI-D to DVI-D digital single-link cable connects a
monitor to the DVI Out port on the back of the X75HD/X75SD unit.
This is a straight connection cable with no breakouts, and a single
DVI-D connector for digital video output.

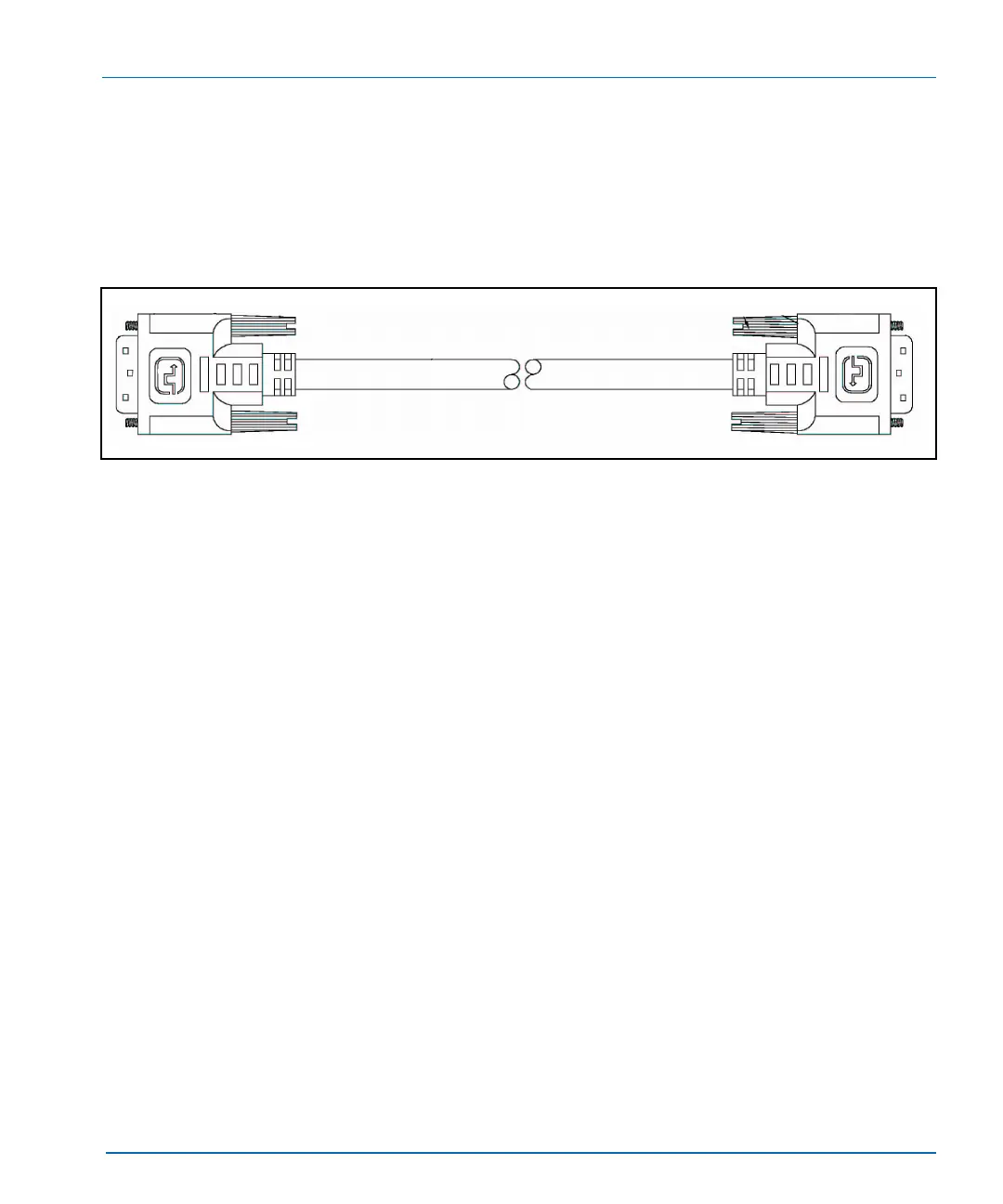

Figure A-4. DVI-D to DVI-D Cable
