X75HD/X75SD Installation and Operation Manual 75
Chapter 4: System Installation and Connections
Making Cable and System Connections
Some connections to the X75HD/X75SD are provided via supplied
breakout cable(s), while others are made directly to the frame via
single-link cabling. Figure 4-6 identifies the various connectors on the
X75HD/X75SD back panel:

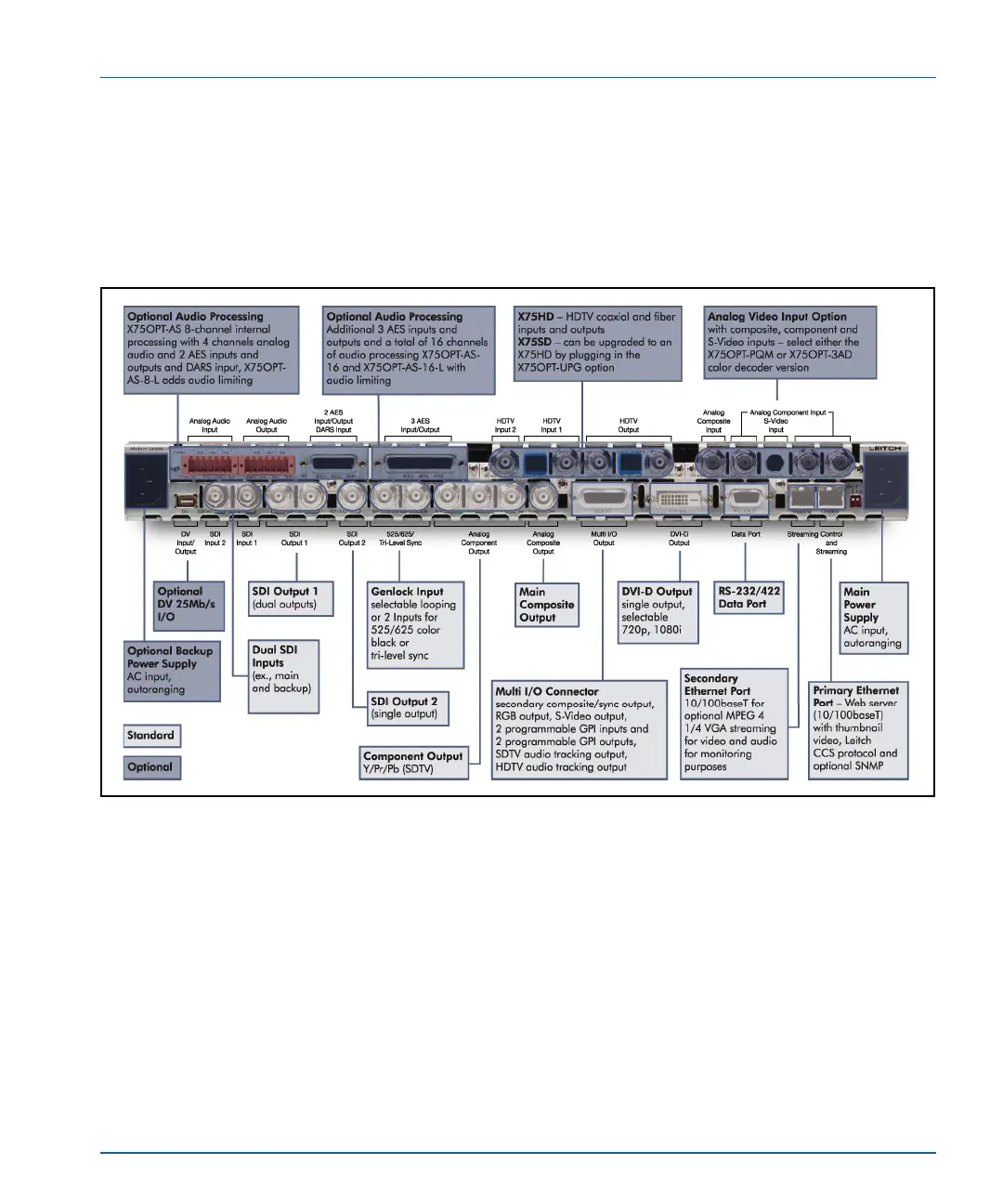

Figure 4-6. X75HD/X75SD Back Panel
When making cable connections, maintain approximately 10 in.
(25 cm) of slack in the rear connecting cables (wrap or tie extra cable
around the cable relief bar). This allows you to pull the frame out from
the rack for servicing without needing to remove any cable connections.
