Leitch X75 HD - Audio BNC;XLR Cable (X75 OPTCAB-8-XC)

210 X75HD/X75SD Installation and Operation Manual
Appendix A: Cables and Pinouts
Audio BNC/XLR Cable (X75OPTCAB-8-XC)

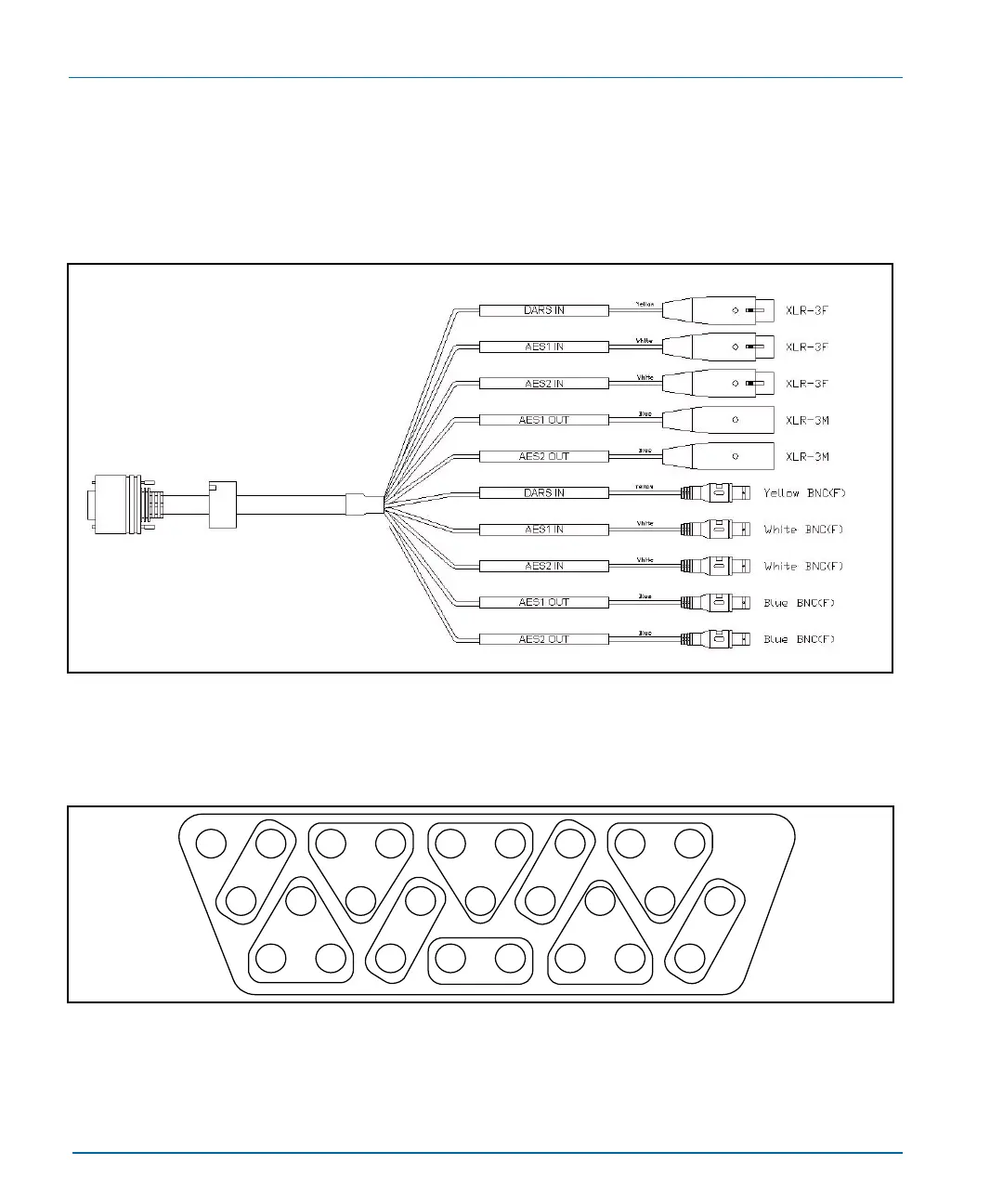

Figure A-9 identifies the cable connectors available on the optional
AES/EBU X75OPT-CAB-8-XC combination BNC/XLR audio cable,
supporting both unbalanced and balanced audio signals.
Figure A-9. X75OPTCAB-8-XC Cable Connectors
Figure A-10 shows the pinouts for the X75OPTCAB-8-XC DB-26M
connector.
Figure A-10. X75OPTCAB-8-XC Connector Pinout
S - + - + S - +
G G G G G G G GG
- S G S + - S+
AES1 In
AES2 In
AES2
Out
AES1
Out
DARS
In
DARS In
AES1
In
AES1 Out
AES2 In
AES2 Out
Pin 1Pin 9
Pin 10
Pin 26
Pin 18
Pin 19
