Appendix A: Cables and Pinouts

Audio BNC/XLR Cable (CAB-X75HD-COMBO)

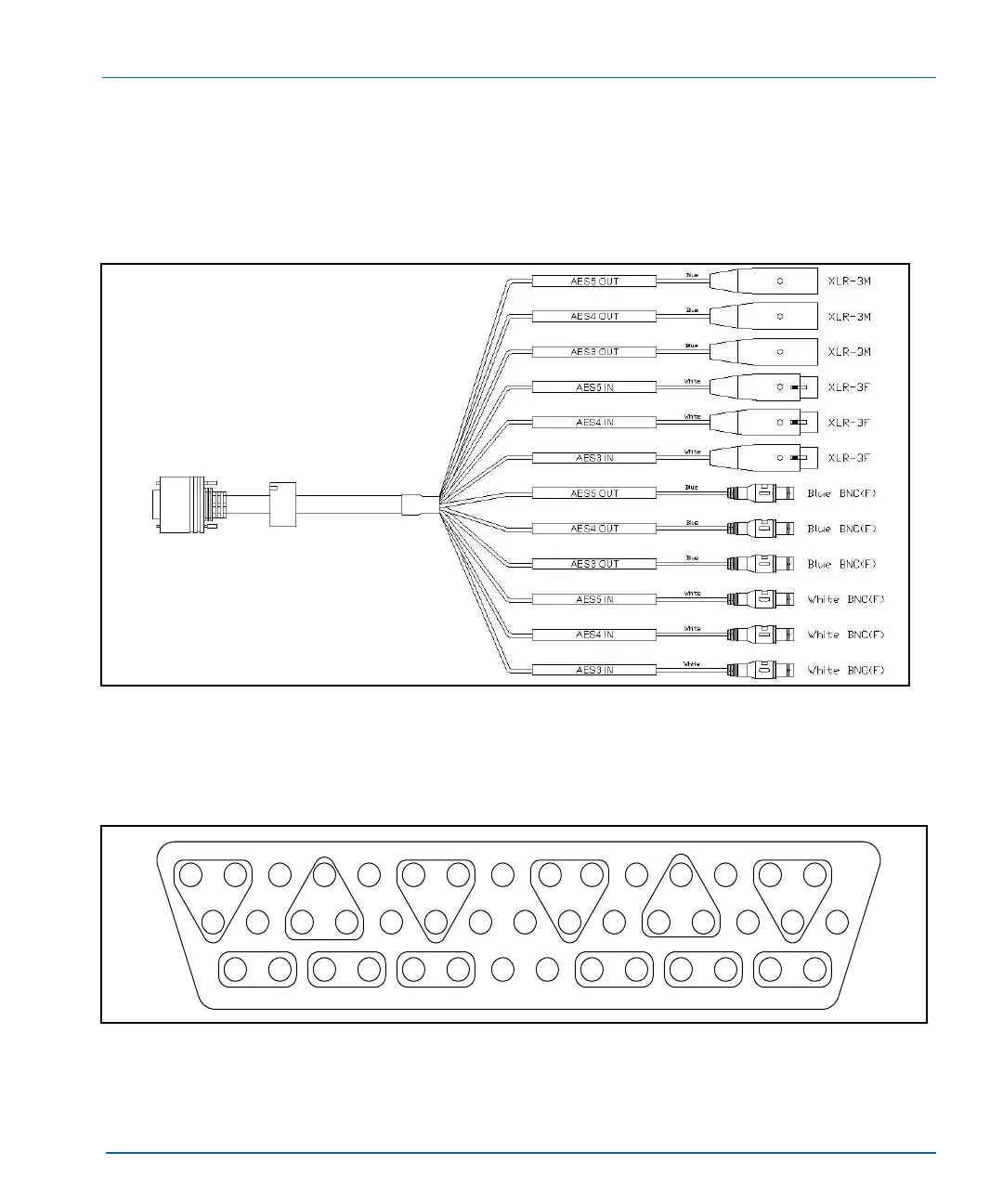

Figure A-11 identifies the cable connectors available on the optional

AES/EBU CAB-X75HD-COMBO combination BNC/XLR audio

cable, which supports both unbalanced and balanced audio signals.

Figure A-11. CAB-X75HD-COMBO Cable Connectors

Figure A-12 shows the pinouts for the X75OPTCAB-16-CX DB-44M

connector.

Figure A-12. CAB-X75HD-COMBO Connector Pinout

+ G + G-

G - GG

G G SS

AES3 in AES3 out

+ G

G G

G G GS

G -

+ -G

G G G

S G SG

G S

AES4 in

AES5 in

(data)

AES4 out

AES5 out

(data)

AES3 in AES3 outAES4 in

AES5 in (data)

AES4 out

AES5 out (data)

Pin 1

Pin 15

Pin 30

Pin 44

Pin 31

Pin 16
