218 X75HD/X75SD Installation and Operation Manual
Appendix A: Cables and Pinouts
Optional Audio XLR Cable (X75OPTCAB-XLR)
Figure A-15 identifies the cable connectors available on the optional
AES/EBU X75OPTCAB-XLR audio cable, which is one of the cables
in the X75OPTCAB-16-X set. This cable supports balanced audio
signals.

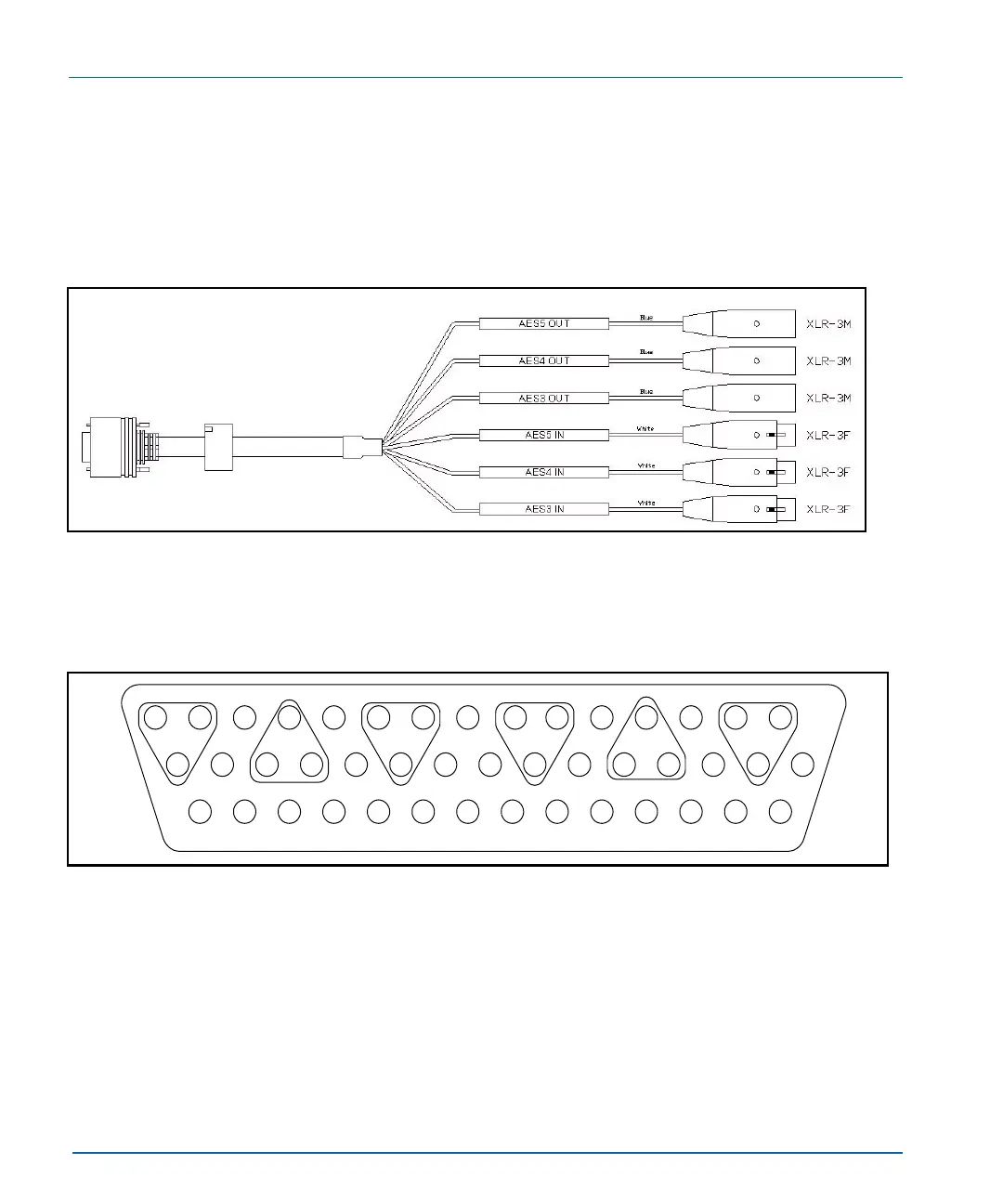

Figure A-15. X75OPTCAB-XLR Cable Connectors
Figure A-16 shows the pinouts for the X75OPTCAB-16-X DB-44M
connector.
Figure A-16. X75OPTCAB-XLR Connector Pinout
+ +-
- GG
AES3 in AES3 out
+
G
+- -
G -
+ -
G G
+
AES4 in
AES5 in
AES4 out
AES5 out
Pin 1
Pin 15
Pin 30
Pin 44
Pin 31
Pin 16
To Next Page
