X75HD/X75SD Installation and Operation Manual 63
Chapter 3: Module and Back Panel Descriptions
X75HD Module and Back Panel
General Description
The X75HD (or X75OPT-HDUPG) module and associated back panel
provides two HDTV coaxial inputs, two HDTV coaxial outputs, one
HDTV fiber input, and one HDTV fiber output. This module provides
and processes on-board up/down/cross-conversions.
The back panel is located in the top, middle of the frame, above the
Multi I/O and DVI-D ports. X75HD modules are factory-installed in all
X75HD systems, and available as an upgrade (X75OPT-HDUPG) for
all X75SD and X75-DPS frames.

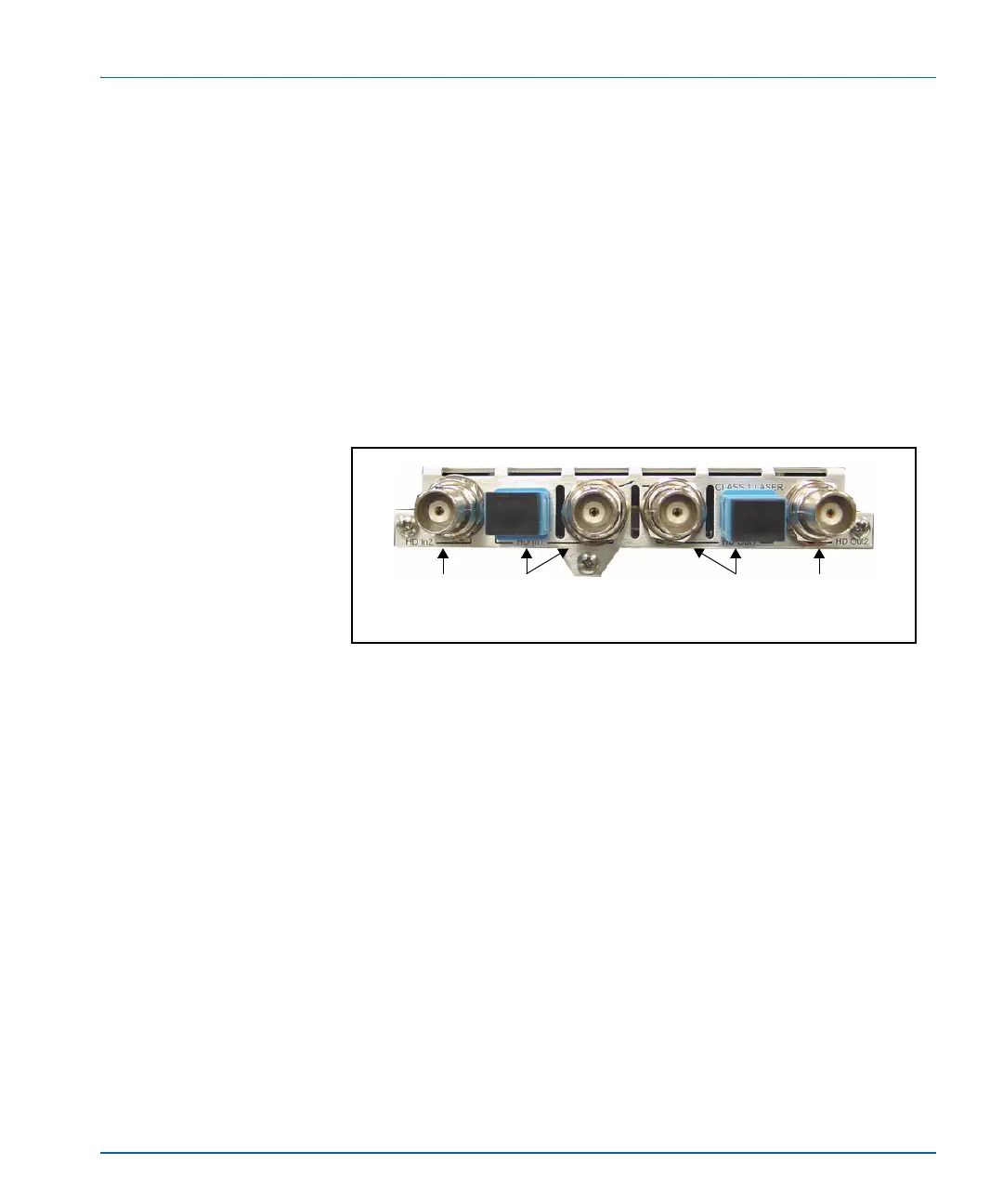

Figure 3-9. HD-X75 Back Panel
This module provides up, down, and crossconversion with both coaxial
and fiber interfaces for HD. To access, configure, and enable the HDTV
input and output parameters, enter the Video Setup parameter.
HD In2
HD In1
(includes BNC
and fiber)
HD Out1
(includes BNC
and fiber
HD Out2
