X75HD/X75SD Installation and Operation Manual 73
Chapter 4: System Installation and Connections

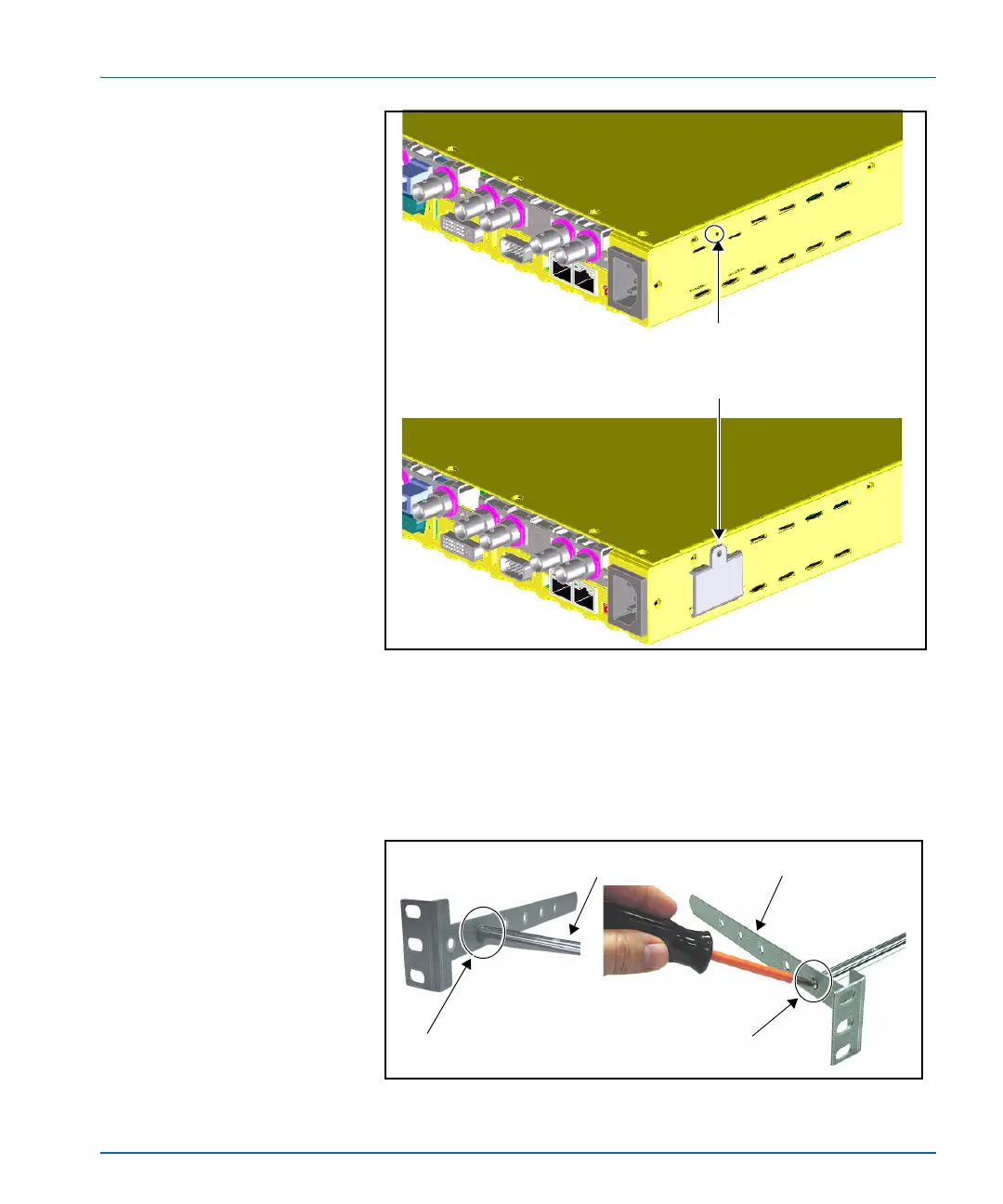

Figure 4-2. Location of Short Bracket Support Screw
3. Attach the cable relief bar between the long rack support brackets
using the provided screws.
You can secure the cable relief bar through any of the screw holes
on the rack support bracket. (See Figure 4-3.)
Figure 4-3. Installed Cable Relief Bar
Installing short rack support bracket
Remove this screw from the frame, place the
short bracket over the hole, and then secure
the bracket to the frame with the screw.
Secure the cable relief bar to the long rack support
bracket through any of the bracket’s screw holes.
Inside view
(between support
brackets)
Outside view
Long rack
support bracket
Cable relief bar
