Colortran Encore Control Console
Software Version 3.05
4
100V and 240V, 50Hz or 60Hz. The power supply requires a maximum of 4A
(480 Watts). In the USA and Canada, it is intended that the console be
operated at 120V only, and a power cord with a NEMA/CSA 5-15P plug
(Edison, parallel blade type) is supplied for this purpose. In other countries
with different connector systems and/or operating voltages, you must use a
power cord with plug rated for at least 4A and at least the nominal operating
voltage of that country. The mating connector to the console is a female IEC
320, Sheet C13 connector rated at 10A, 250V.
Console Power Connection: First make sure the key switch is in the
OFF position, then plug the AC power cable into the console. Plug the other
end into an AC power source with a rating in compliance with the above
requirements, and with a computer grade ground. (A computer grade ground is
an insulated, isolated ground preferably connected to the point where the AC
power source is grounded in the building.)
Back Panel Power Outlets: On the back panel of the console are two
switched female IEC 320 style power outlet connectors for connecting the
monitor, or other peripheral devices. The connectors are rated voltage-wise
and frequency-wise at the same voltage and frequency being supplied to the
console via the console power supply cord, and collectively at 3A total for the
two switched outlets.
Monitor Power Connection: Your monitor is also typically an auto-
ranging unit, operating on AC power anywhere from 100V to 250V, 50Hz or
60Hz at a current of 1A maximum. The monitor is provided with a mating
"reverse" IEC 320 style plug. Refer to the instructions provided with the
monitor to find out whether the monitor is suitable for operation with the above
specified connectors. If so, plug the power cord of the monitor into one of the
console power connectors.
Worklight Connectors
(optional)
AC Power
Convenience
Outlets
Video
MIDI
In/Out/Thru
Hand Held Remote
Model 48/96
Models 24/48, XL, & XL/2
Parallel
Printer
Colortran Service Only
Worklight Connector (optional)

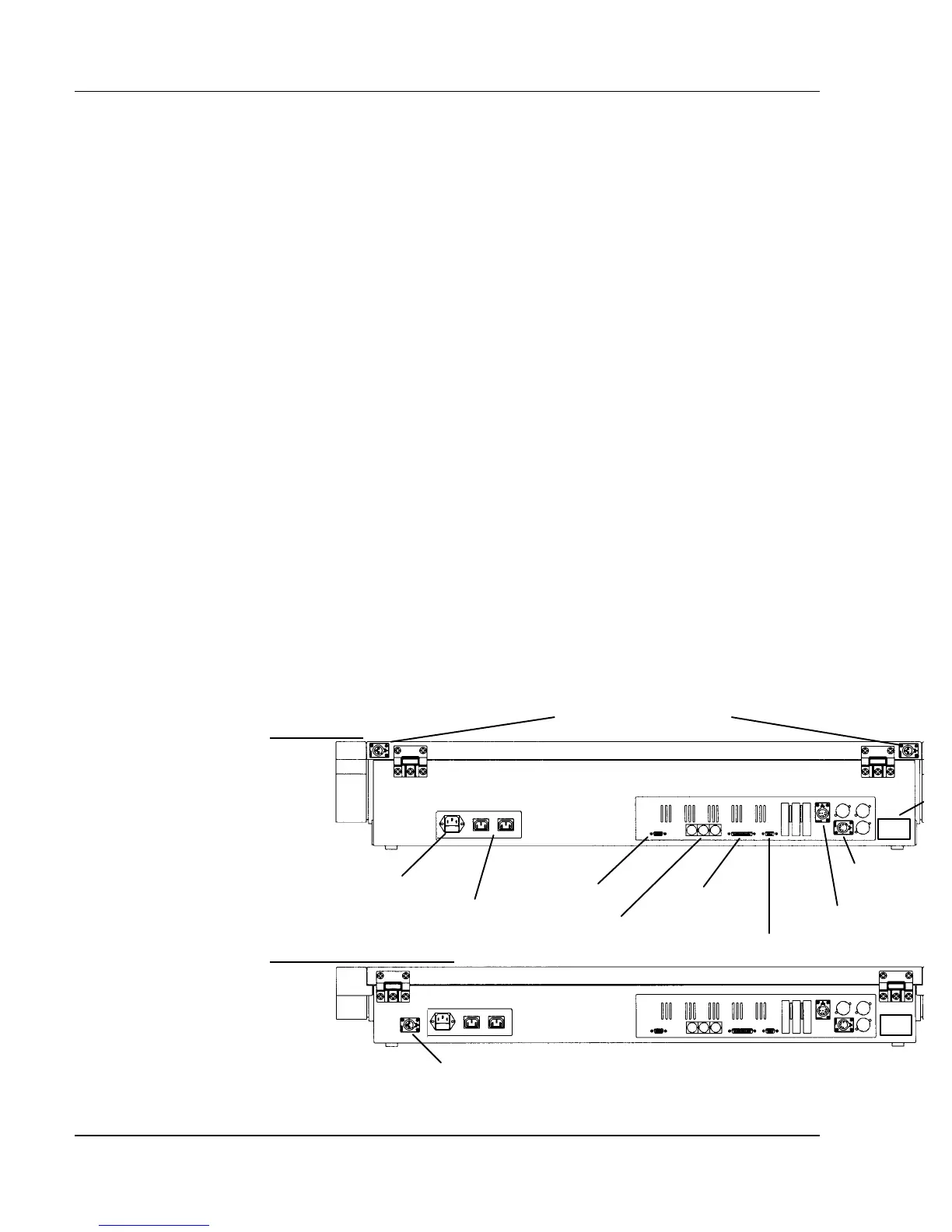

Figure 1.1, Encore Back Panels
