Colortran Encore Control Console
Software Version 3.05
204

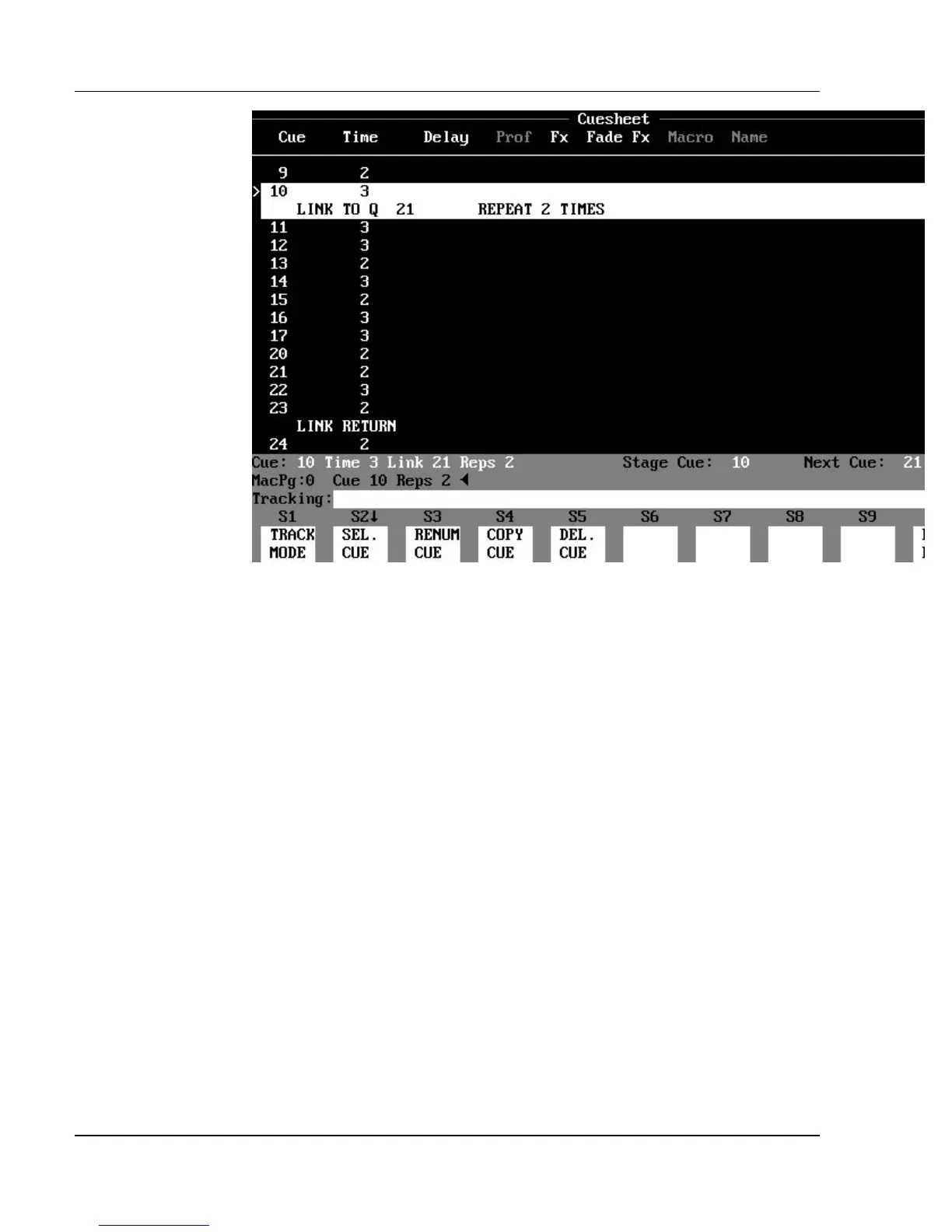

Figure 19.4, Cue Link Repetitions
? EXAMPLE: To assign a Link Repetition to a cue from the Stage,
Preview, Cuesheet, Playback, or Tracksheet display:
[CUE] [#] (LINK REPS) [#] [ENTER]
? EXAMPLE: Using the same Example above, to assign cue 10 a Link
Repetition of 2:
[CUE] [10] (LINK REPS) [2] [ENTER]
The cue execution sequence would now run like this: 9, 10(Link), 21, 22,
23(Link Return)(Link repeats once), 21, 22, 23(Link Return) (Link repeats
twice), 21, 22, 23(Link Return), 11, 12, etc.
Pay special notice to the fact that the number of link repetitions indicates the
number of additional executions of the link; it does not include the first
execution of the linked sequence. In this case we specified two repetitions, so
the linked sequence actually runs three times before the cue execution
sequence returns to cue 11.
