Restoring solutions, licenses, and conﬁguration settings

To load the zip ﬁles that are extracted from the Service Restore Tool, do the following:

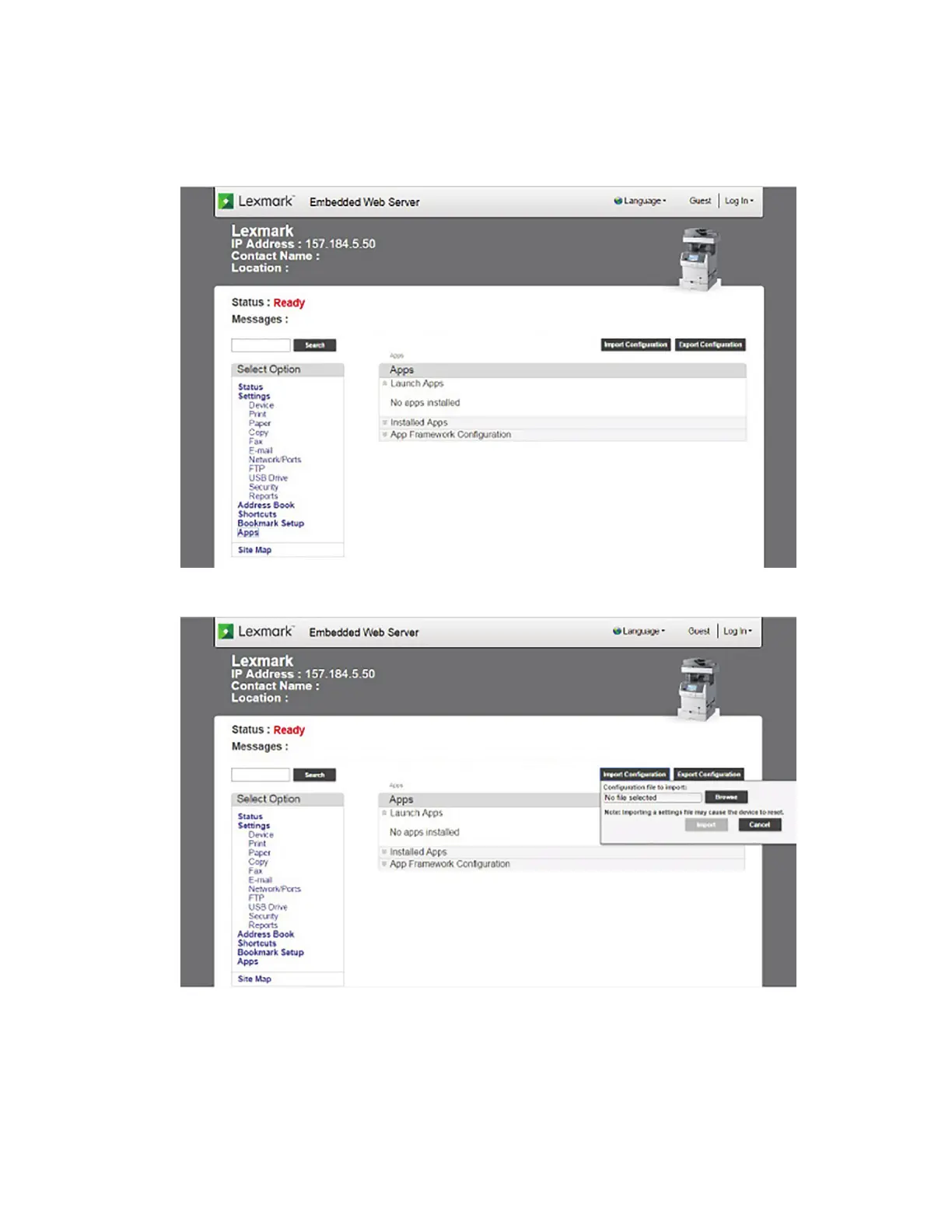

1 Open a web browser, and then type the printer IP address.

2 Click Import

Conﬁguration

, and then click Browse.

7018

Parts removal

206
