Rear side removals

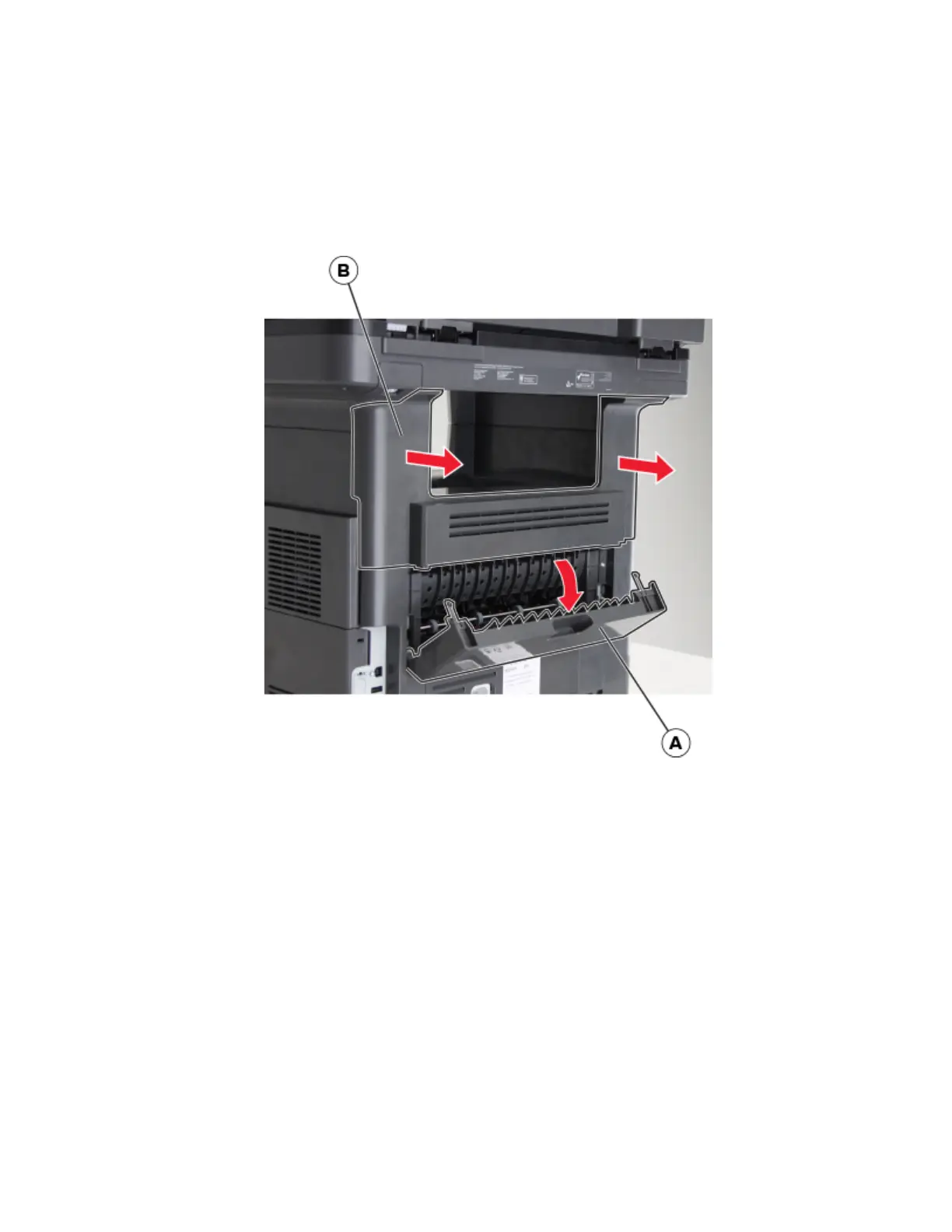

Scanner rear cover removal

1 Open the rear door (A).

2 Remove the cover (B).

7018

Parts removal

294
