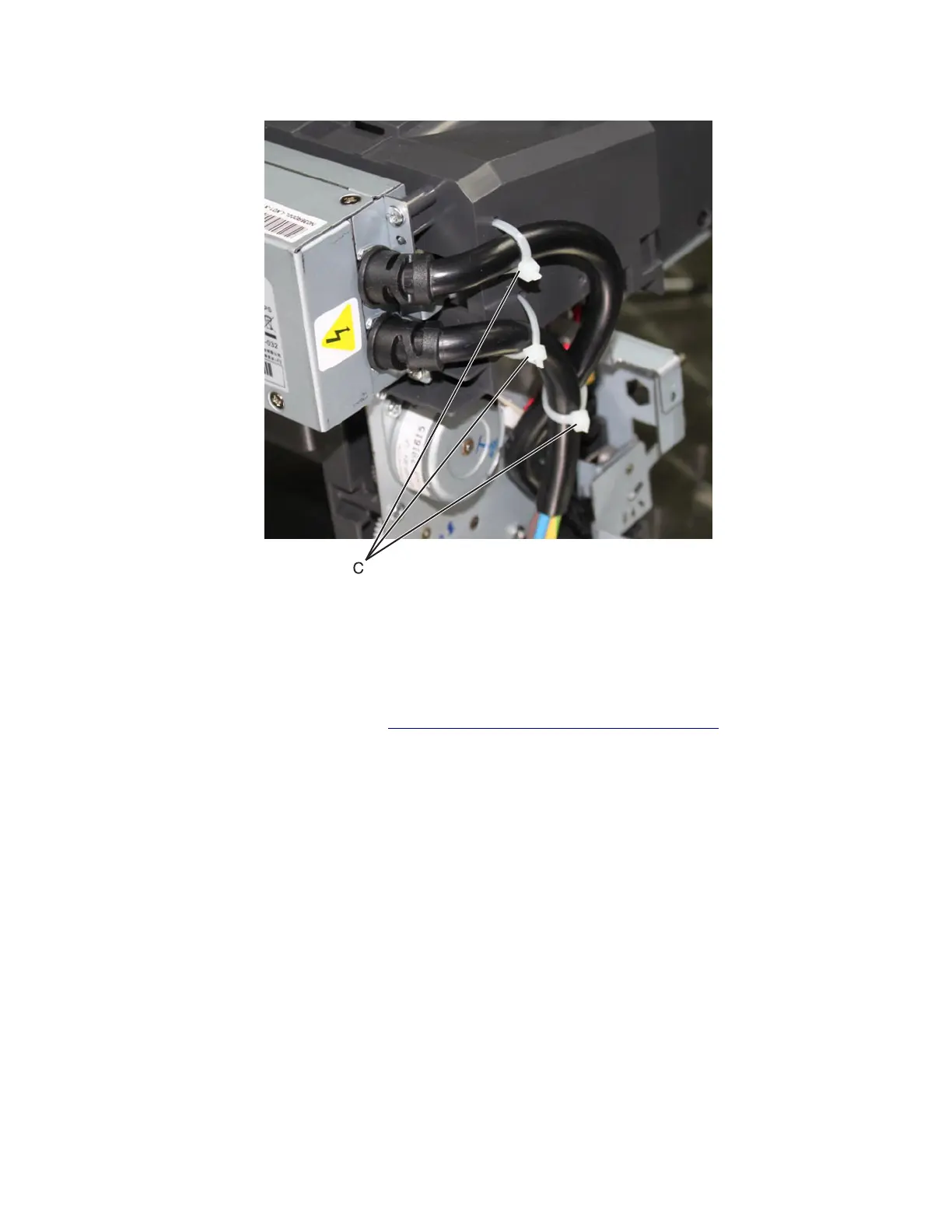

9 Cut the cable ties (C).
10 Release the cable from its route, and then remove the power supply unit.
Note: Pay attention to the original route of the cable.
Stapler interface cable removal
1 Remove the stapler service cover. See “Stapler service cover removal” on page 341.
2 Disconnect the interface cable CN15 from the stapler controller board.
7018
Parts removal
347
