7 Pry the toroid holder to release, and then remove it.
8 Release the speaker cable, and then remove the speaker.
Installation note: Make sure that the flat cable is inserted as shown.

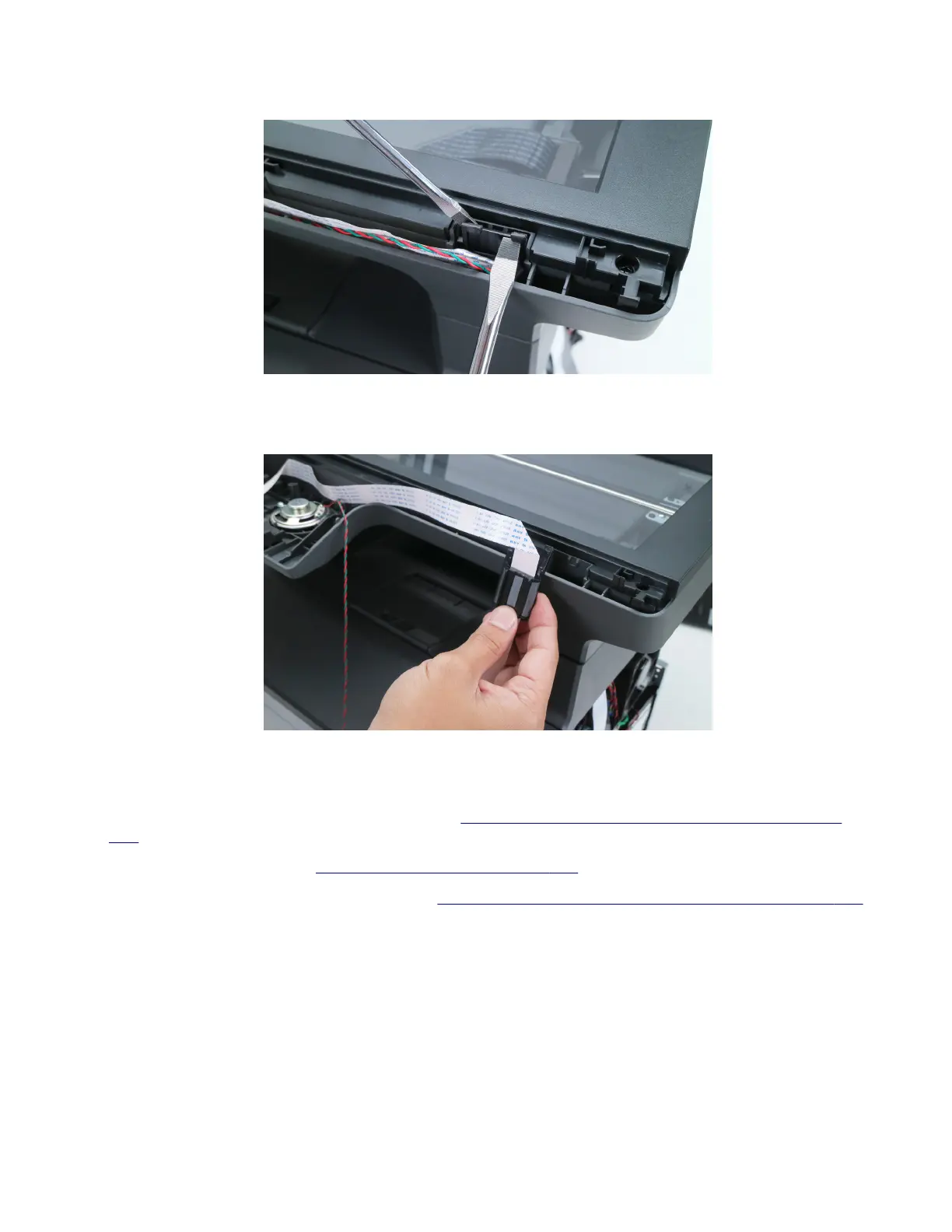

Control panel flat cable removal
1 Remove the control panel display assembly. See “Control panel display assembly removal” on page
255.
2 Remove the right cover. See “Right cover removal” on page 237.
3 Remove the control panel support cover. See “Control panel covers and buttons removal” on page 257.
7018
Parts removal
262
