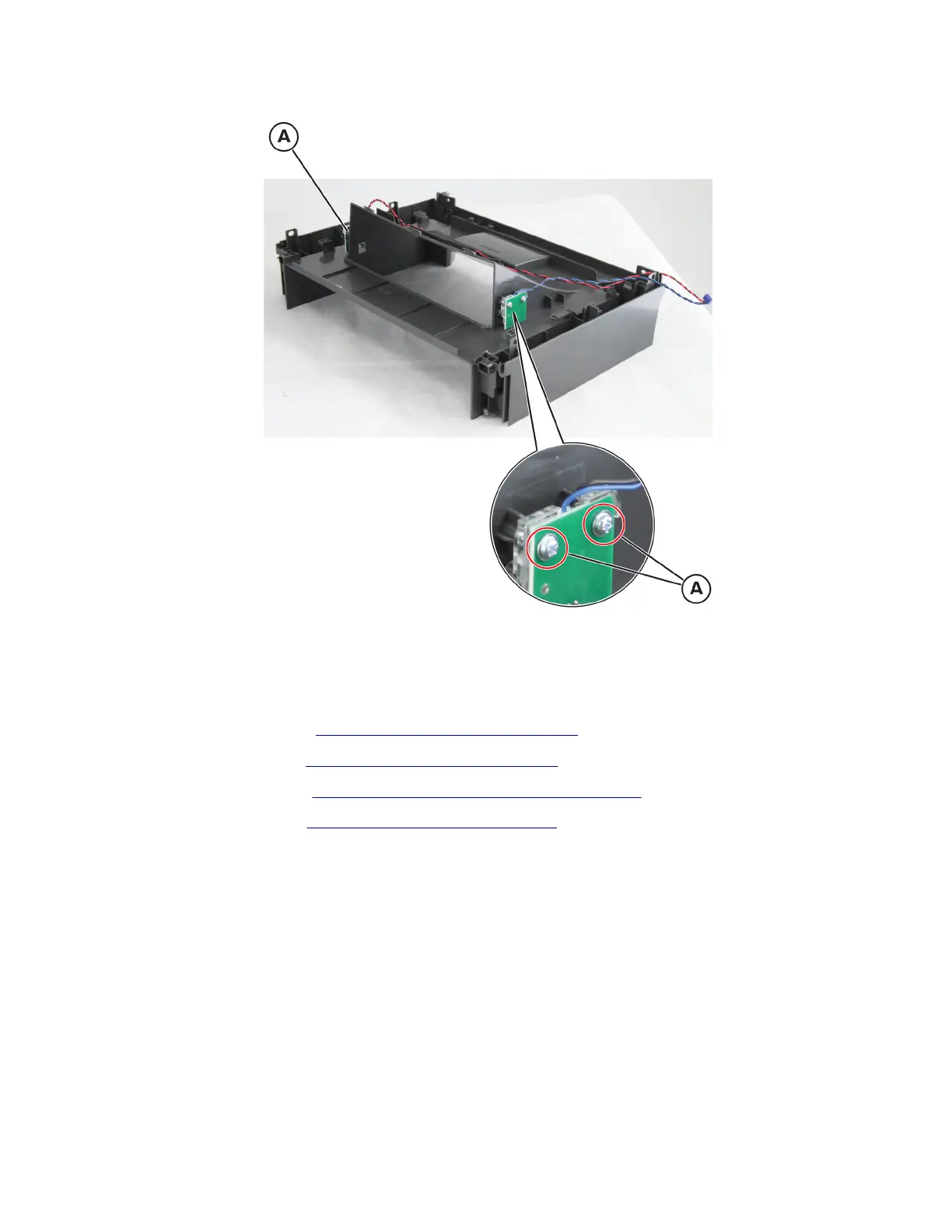

4 Remove the two screws (A). Do the same for the sensor on the opposite side.
5 Release the cables, and then remove the sensor transmitter and receiver.
Printhead removal
1 Remove the right cover. See “Right cover removal” on page 237.
2 Remove the left cover. See “Left cover removal” on page 226.
3 Remove the rear cover. See “Rear door and cover removal” on page 295.
4 Remove the top cover. See “Top cover removal” on page 297.
7018
